Ka-band LNB 23.2-24.2 GHz WR-42 N/F/SMA
Ka-band LNB for 23.2-24.2 GHz input with 22.2 GHz LO, WR-42 interface, 50 dB gain, low noise figure, and SMA/N/F outputs. Ideal for professional satellite and RF systems.
Ka-band LNB 22.2–23.2 GHz WR-42 N/F/SMA
High-performance Ka-band LNB (22.2–23.2 GHz) with WR-42 input, 50+ dB gain, and ultra-low noise figure. Ideal for satellite and RF telecom systems.
X-band LNB 7.7-8.25 GHz WR-112 N/F/SMA
X-band LNB 7.7–8.25 GHz with 6.75 GHz LO, WR-112 input, and F/N-type output. Low noise, high gain, and IP67 housing make it ideal for radar and telecom.
X-band LNB 7.25-7.75 GHz WR-112 N/F/SMA
High-performance X-band LNB 7.25–7.75 GHz with 6.3 GHz LO, WR-112 input, low noise figure, and SMA/F/N outputs. Ideal for satellite, radar, and telemetry systems.
C-band LNB 6.25-7.3 GHz WR-159 N/F/SMA
C-band LNB (6.25-7.3 GHz) with WR-159 and SMA/F outputs, 5.3 GHz LO, low noise figure, high gain, and stable AGC. Ideal for telecom professionals and test labs.
C-band LNB 5.25-6.3 WR-159 N/F/SMA
Professional RF downconverter from 5.25–6.3 GHz to 0.95–2.0 GHz, with low noise, 46 dB gain, AGC, and ±1 ppm LO stability.
C-band LNB 4.75-5.3 GHz WR-159 N/F/SMA
C-band LNB with 3.8 GHz LO, 4.75–5.3 GHz input, 0.95–1.5 GHz output, WR-159 waveguide, low noise, and high gain. Suitable for professional RF & broadcast systems.
S-band LNB 3.05–3.45 GHz N/F/SMA i/o
S-band LNB 3.05–3.45 GHz in / 0.95–1.35 GHz out, LO 4.4 GHz. Gain ≥50 dB, phase noise −80 dBc/Hz, mirror suppression ≥40 dB, SMA/N/F I/O, +12–24 V, 350 mA. Built for RF professionals.
S-band LNB 2.7–3.1 GHz N/F/SMA i/o
S-band LNB 2.7–3.1 GHz in / 0.95–1.35 GHz out, LO 4.05 GHz. Gain ≥50 dB, low phase noise, SMA/N/F I/O. Rugged, reliable, built for pro satcom. Operates from +12–24 VDC at 350 mA.
S-band LNB 2.35-2.75 GHz N/F/SMA i/o
S-band LNB 2.35–2.75 GHz in / 0.95–1.35 GHz out, LO 3.7 GHz. Gain ≥50 dB, phase noise −80 dBc/Hz, mirror suppression ≥40 dB. SMA/N/F I/O, +12–24 V. Ideal for professional satcom.
S-band LNB 2.0-2.4 GHz N/F/SMA i/o
S-band LNB 2.0–2.4 GHz in / 0.95–1.35 GHz out, LO 3.35 GHz. Gain ≥50 dB, low phase noise, SMA/N/F I/O, +12–24 V. Rugged –30…+60 °C, mirror rejection ≥40 dB. Built for satcom pros.
L-band LNA 0.95-2.0 GHz N/F/SMA i/o
L-band LNA 0.95–2.0 GHz with N/SMA/F I/O, gain ≥40 dB, NF ≤2 dB. Operates from +10 to +28 VDC, 200 mA. Built for telecom pros, rugged –30…+60 °C, long support lifecycle.
L-band LNA 1.0-2.3 GHz N/F/SMA i/o
Wideband L‑band LNA 1.0–2.3 GHz with N/SMA/F‑type I/O. Delivers ≥40 dB gain, ≤2 dB noise figure. Rugged build (–30…+60 °C), wide input voltage +10–28 V. Ideal for TV & telecom integrators.

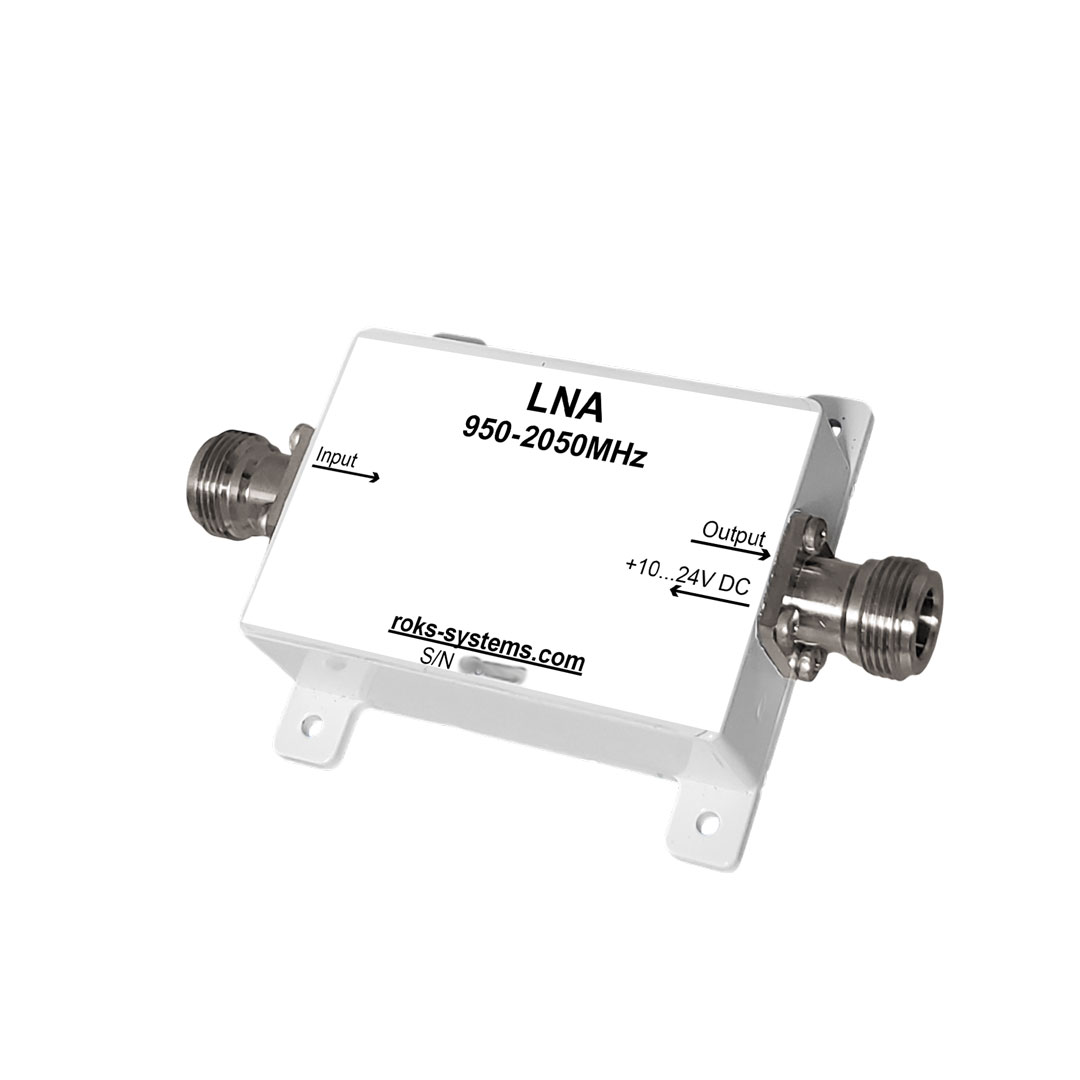

L-band LNA 0.95-2.05 GHz N/F/SMA i/o
Professional L‑band LNA 0.95–2.05 GHz with SMA/F‑type I/O, ≥40 dB gain, ≤2 dB noise figure. Rugged −30 °C…+60 °C. Includes 1.5‑year warranty & 7‑year post‑warranty support. Ideal for telecom and TV projects.
