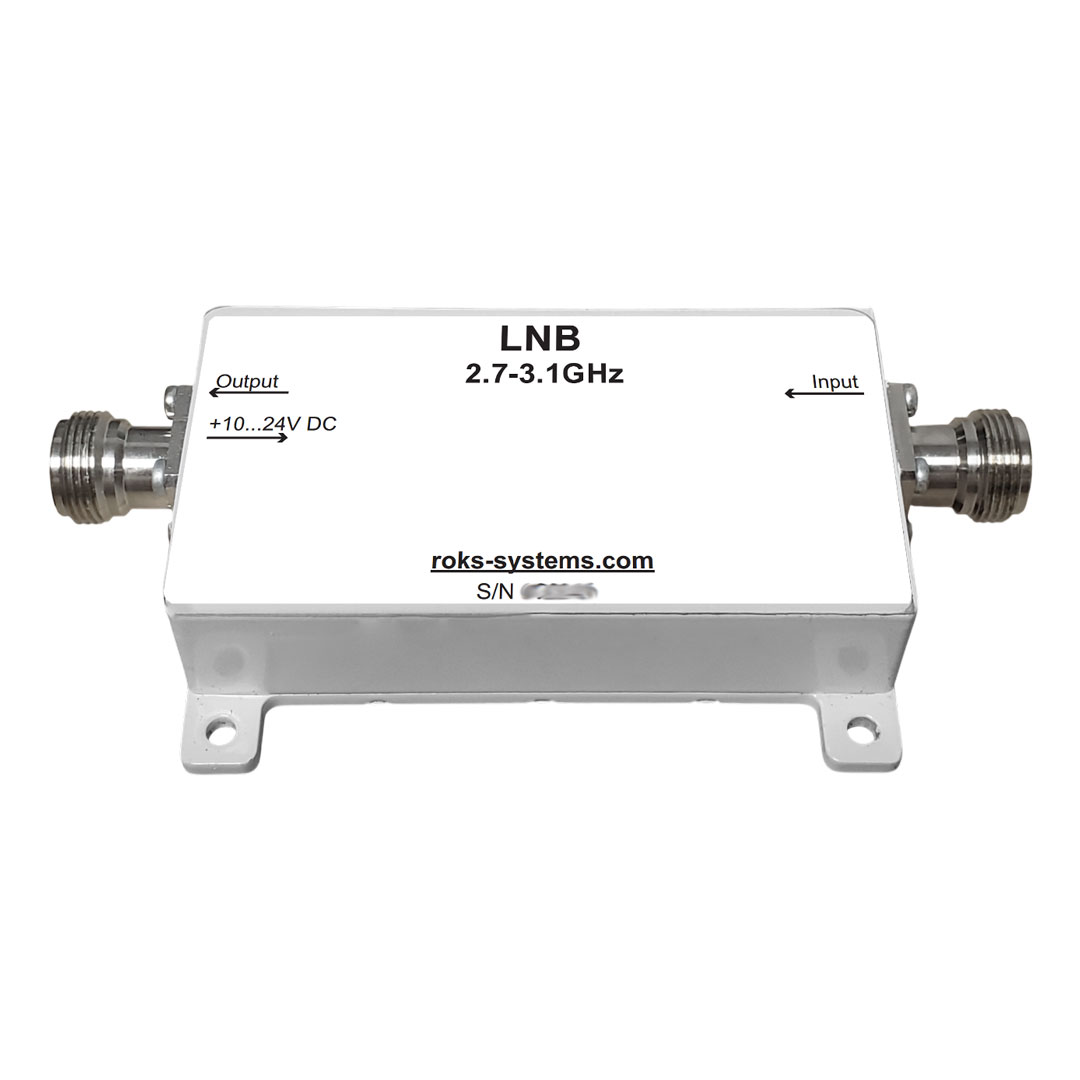

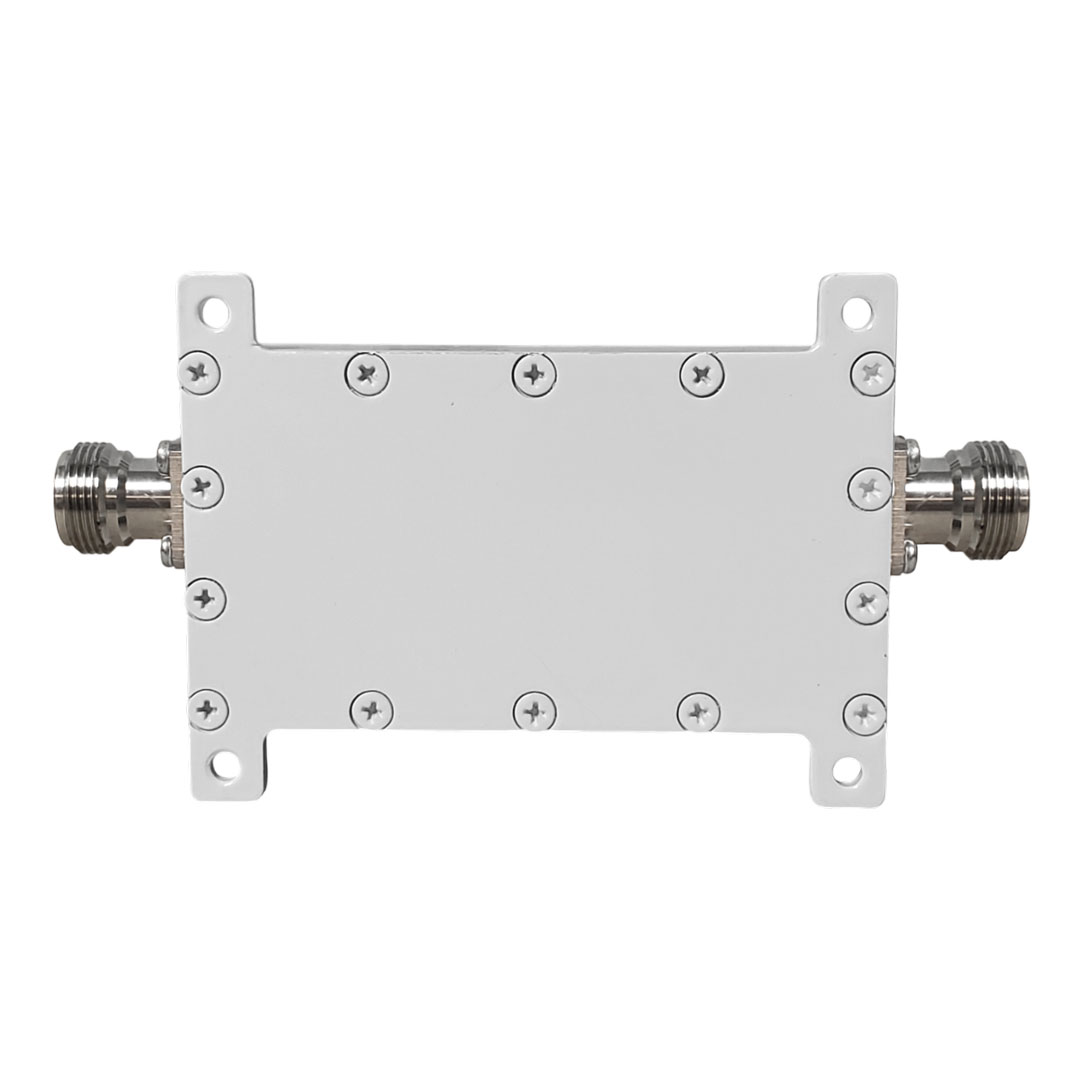

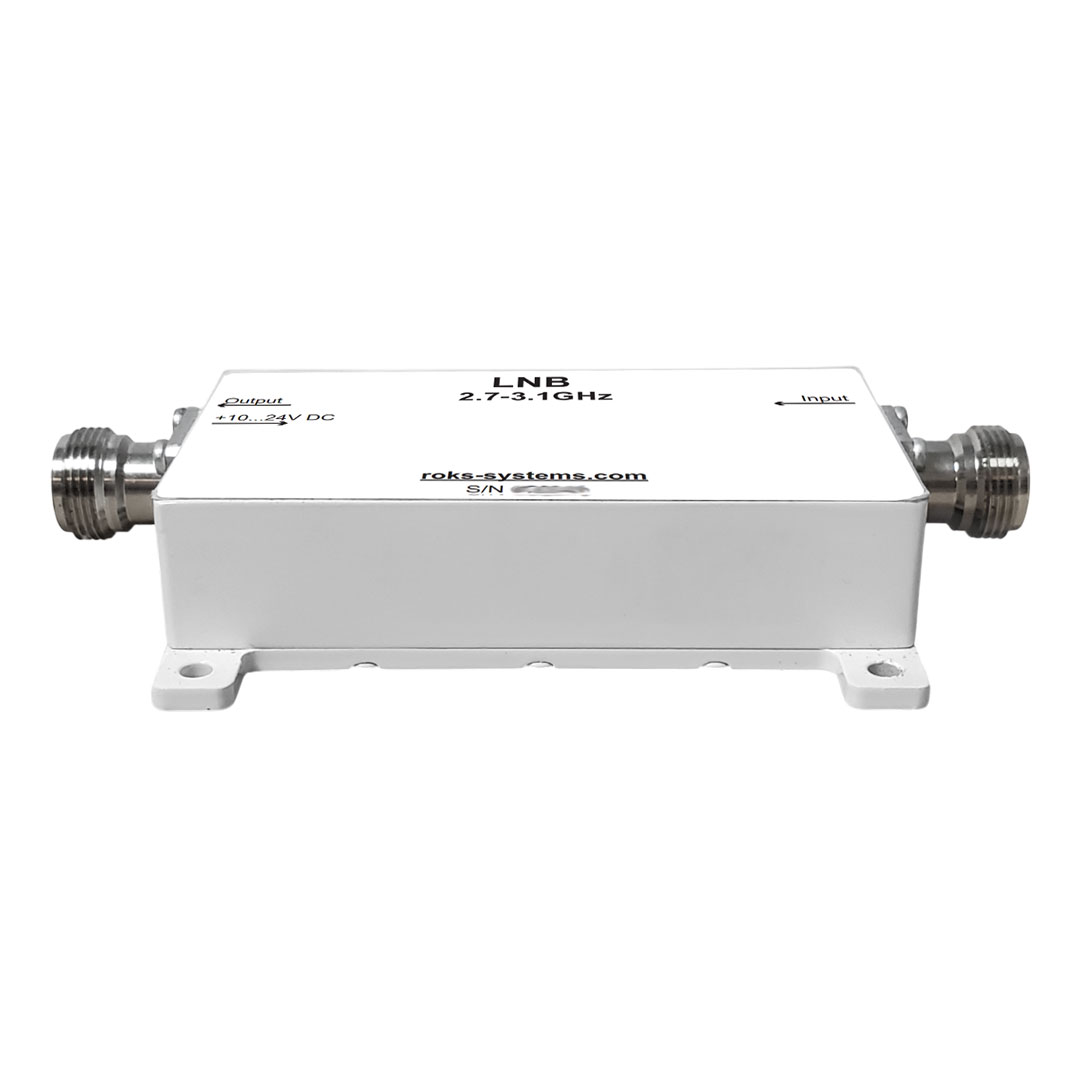

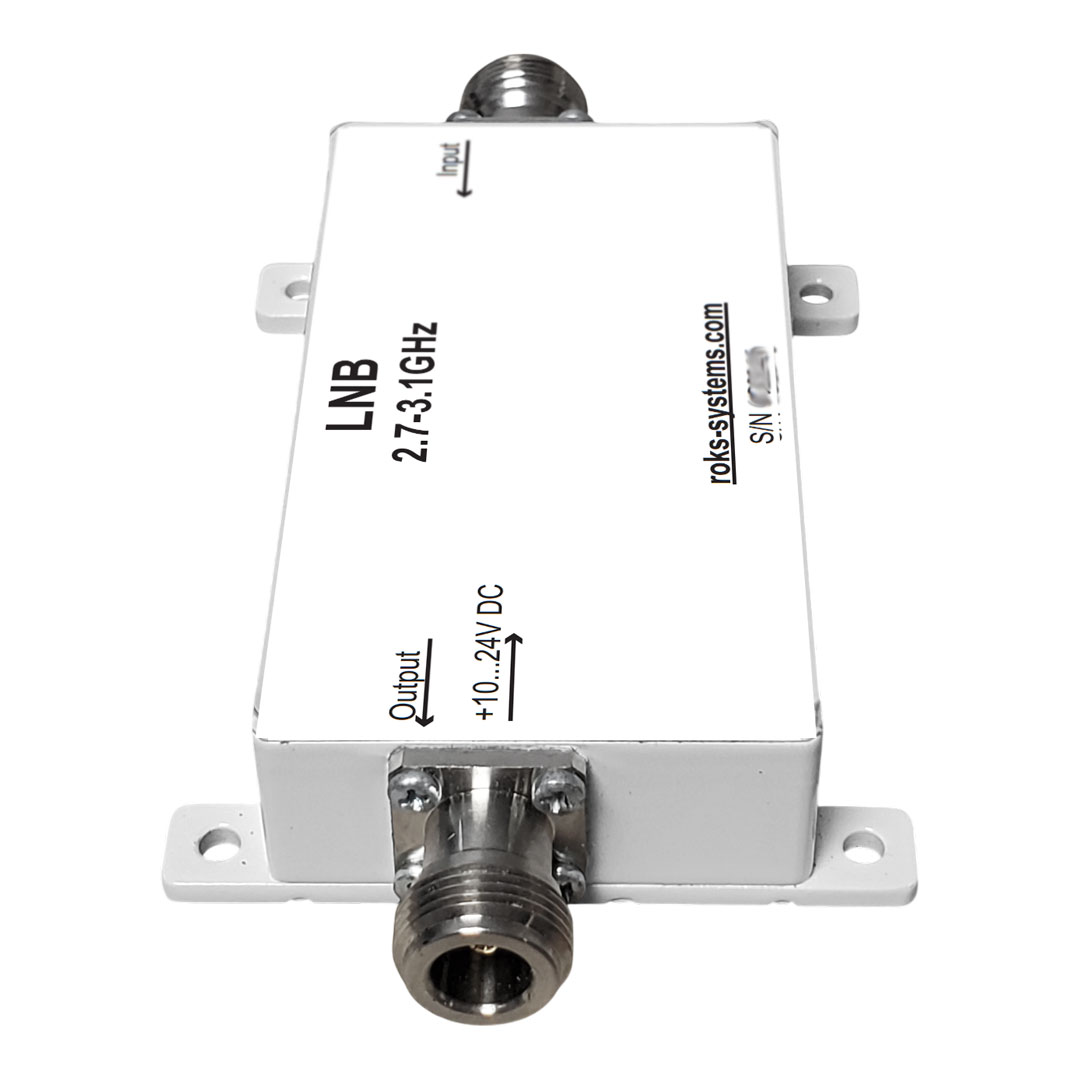

This S-band Low‑Noise Block Downconverter is built for input frequencies from 2.7 to 3.1 GHz and downconverts to 0.95 to 1.35 GHz using a highly stable 4.05 GHz LO. With gain ≥50 dB and phase noise as low as –65 dBc/Hz @1 kHz and –80 dBc/Hz @10 kHz, this LNB meets the strict requirements of advanced telecom, defense, and test applications.
Highlights:
– Input VSWR: ≤1.8
– I/O Impedance: 50 Ω (SMA/N-type) or 75 Ω (F-type)
– Mirror rejection ≥40 dB
– AGC range ≥25 dB
– Gain flatness: ±2.0 dB full band, ≤0.5 dB over 30 MHz
– Power: +12–24 VDC, ≤350 mA
– Operating temperature: –30…+60 °C; humidity up to 95 %
Supported by 1.5-year warranty and 7-year extended support. Lab-developed, field-proven.
👉 Order the LNB 2.7–3.1 GHz now and ensure your system’s reliability!
| S-band LNB Technical Specifications |
| Input Frequency Range |
2.7 – 3.1 GHz |
| Output Frequency Range |
0.95 – 1.35 GHz |
| LO Frequency |
4.05 GHz |
| Input VSWR, max |
1.8 |
| Input/Output Impedance |
50 Ω (SMA/N-type), 75 Ω (F-type) |
| LO Frequency Instability |
≤1.0 ppm |
| Phase Noise (1 kHz) |
–65 dBc/Hz |
| Phase Noise (10 kHz) |
–80 dBc/Hz |
| Gain, min |
50 dB |
| Gain Flatness (full band) |
±2.0 dB |
| Gain Flatness (any 30 MHz) |
±0.5 dB |
| P1 dB Output, min |
+5 dBm |
| Image Rejection |
≥40 dB |
| AGC Depth |
≥25 dB |
| Supply Voltage |
+12 V – +24 V |
| Power Consumption, max |
350 mA |
| Operating Temperature |
–30 °C … +60 °C |
| Storage Temperature |
–40 °C … +80 °C |
| Relative Humidity |
0 % – 95 % |
