Ka-band LNB 17.2-18.2 GHz WR-62 N/F/SMA

The Ka-band LNB 17.2–18.2 GHz WR-62 N/F/SMA is a professional-grade low-noise block downconverter designed for satellite, telemetry, broadcast, and telecom applications. Operating within the 17.2–18.2 GHz frequency range, this LNB uses a WR-62 input flange and outputs to the 950–1950 MHz band, making it ideal for frequency downconversion in complex systems.

With a typical noise figure of 1.5 dB and a gain of 60 dB, this LNB ensures reliable signal amplification while maintaining low distortion. The internal local oscillator offers excellent phase noise characteristics and frequency stability (±25 kHz), while the converter supports an external 10 MHz reference. Waterproof (IP67-rated), it withstands extreme conditions, from -40°C to +60°C.

L.O.: 16.25 GHz IN freq.: 17.2-18.2 GHz OUT freq.: 950-1950 MHz

     Key Features:

• Frequency range: 17.2–18.2 GHz

• Noise figure: 1.5 dB typ. / 1.6 dB max.

• High conversion gain: up to 65 dB

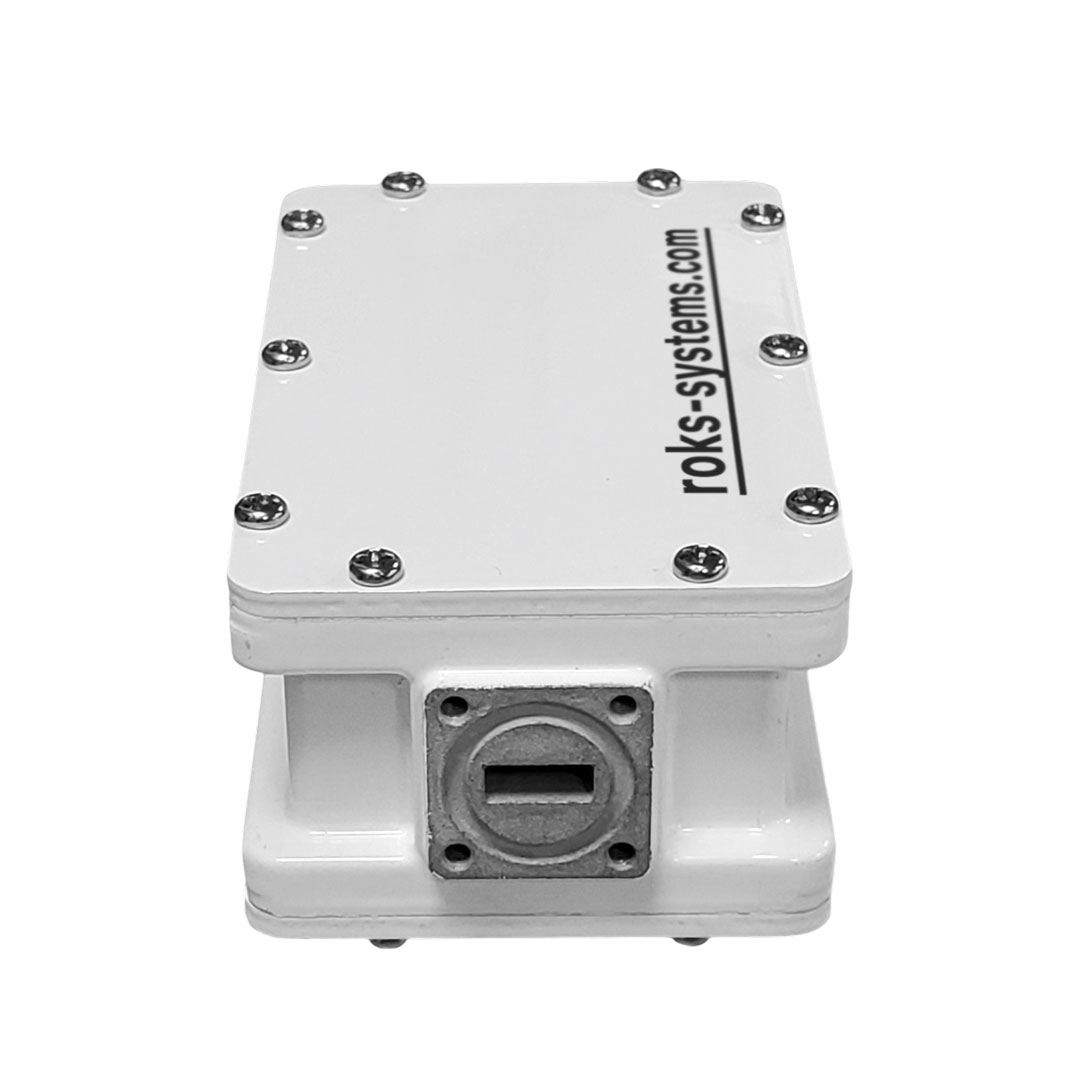

• WR-62 input flange

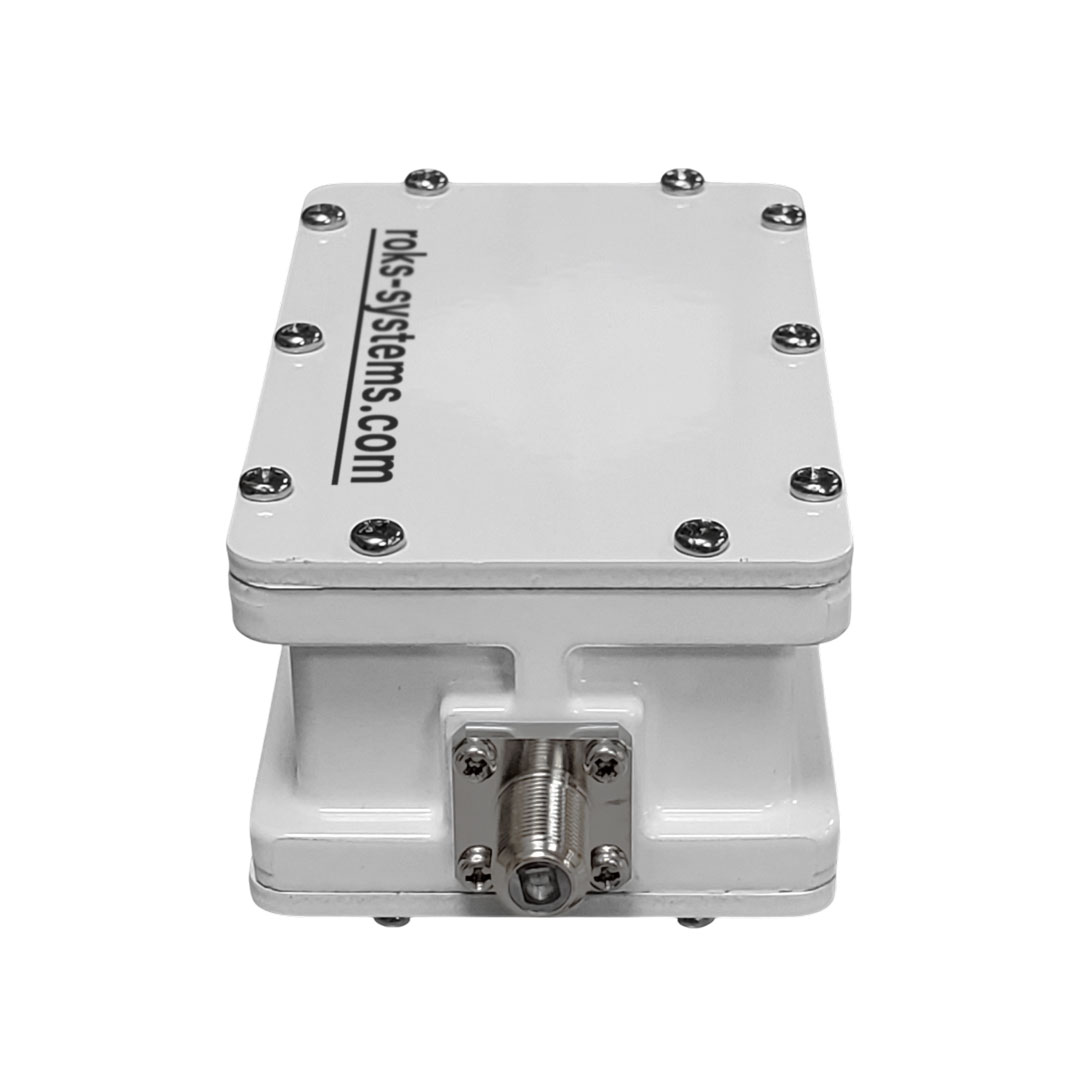

• F or N-type output

• IP67 waterproof housing

• External 10 MHz reference input

• Low LO phase noise: -95 dBc/Hz @100 kHz

• 1.5-year warranty, 7-year service

     Main Functions:

• Downconversion of Ka-band signals to 950–1950 MHz IF

• Signal amplification with wide dynamic range

• Filtering and rejection of image and spurious frequencies

• Stable LO generation for frequency accuracy

• Compatibility with satellite and telecom systems

     Why Buy From Us:

• 📡 In-house R&D lab ensures premium quality and precision testing.

• 👨‍🔧 Remote technical support team always ready to assist.

• 🛡️ 1.5-year extended warranty for all products.

• 🔧 Post-warranty service for 7 years included.

• 🎯 Trusted by professional TV broadcasters and telecom developers.

  👉 Order the Ka-band LNB 17.2-18.2 GHz WR-62 N/F/SMA now and ensure your system’s reliability!
