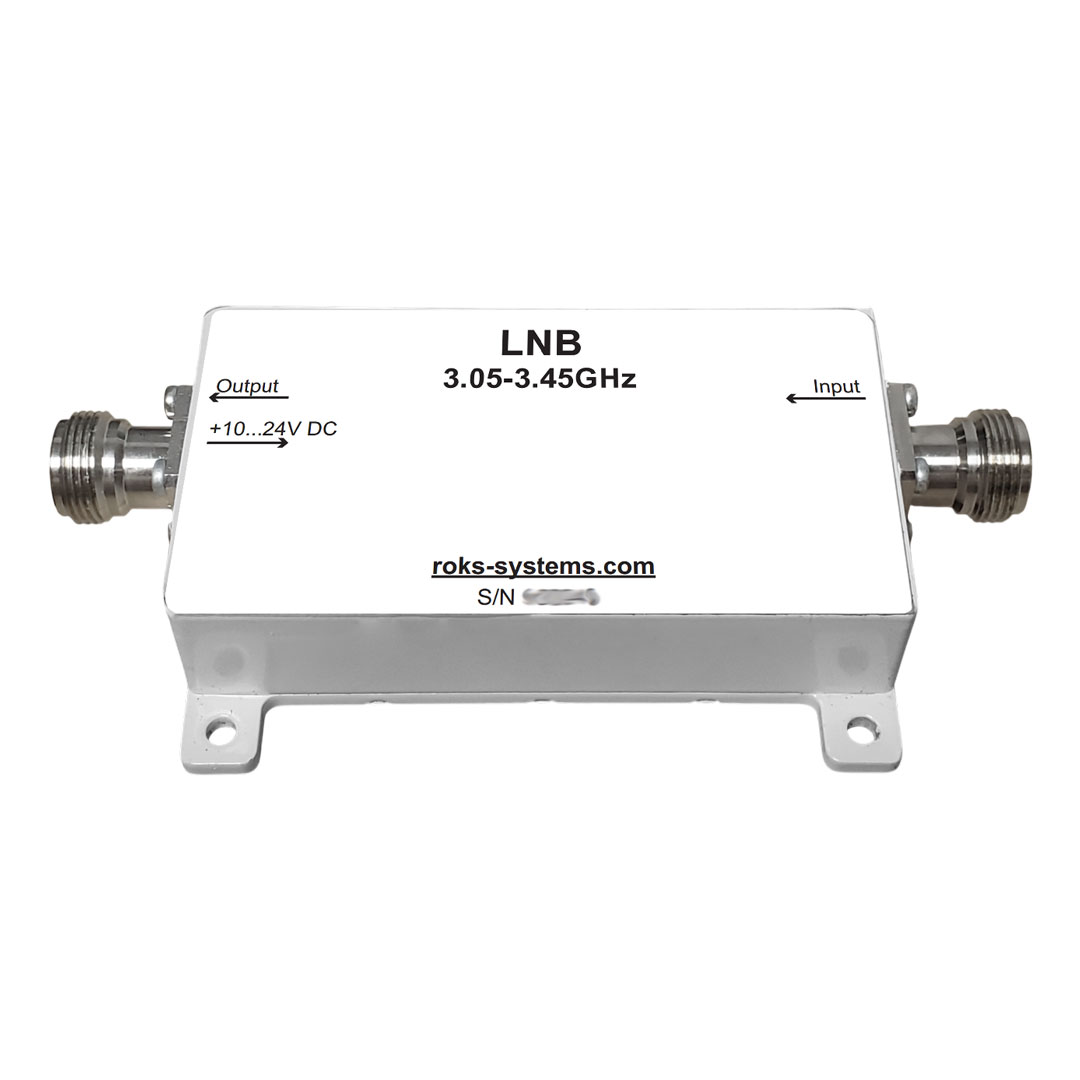

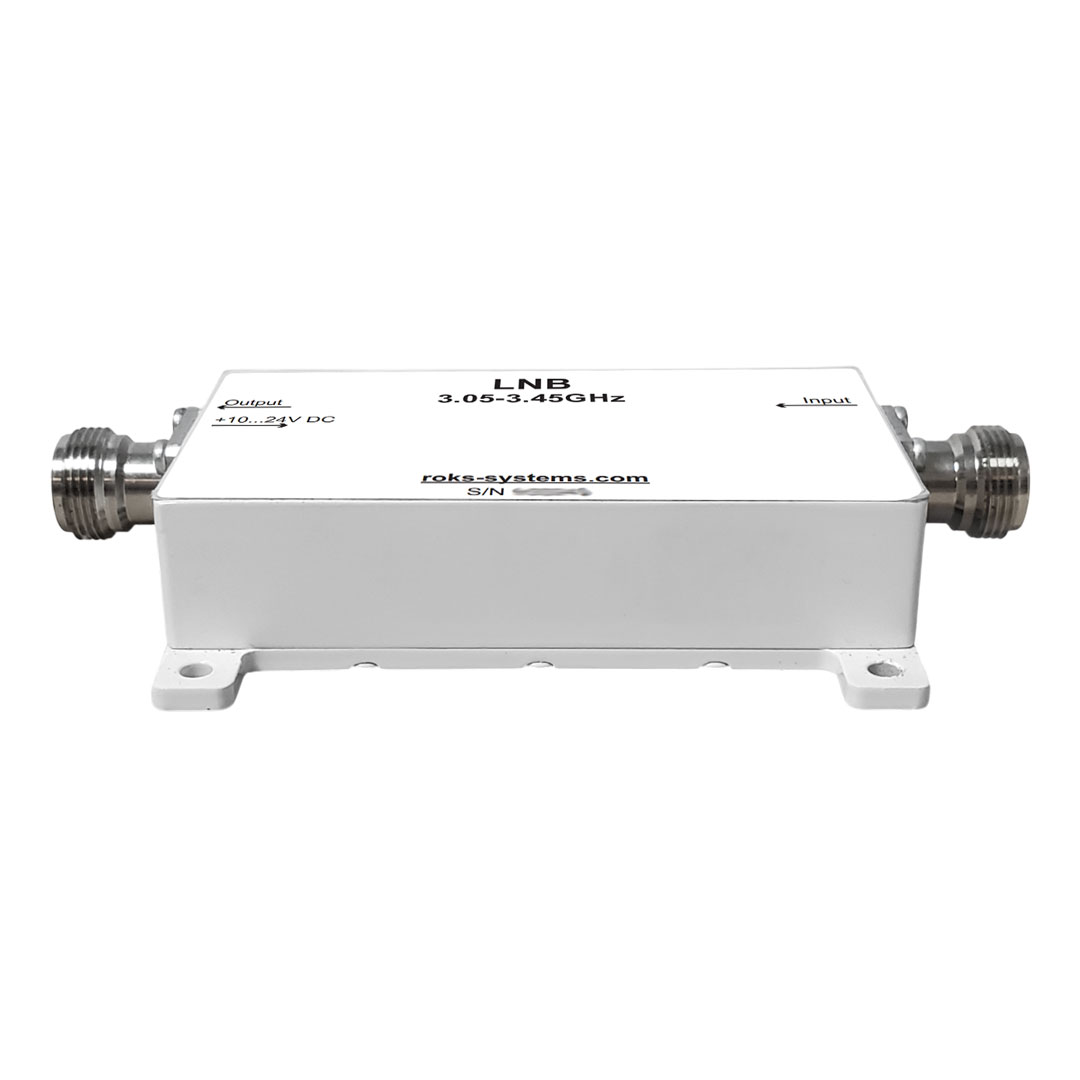

Engineered for the 3.05–3.45 GHz S-band range, this LNB features a precise 4.4 GHz LO for downconversion to 0.95–1.35 GHz. With high gain (≥50 dB), low phase noise (−65 dBc/Hz @1 kHz, −80 dBc/Hz @10 kHz), and AGC depth ≥25 dB, it’s ideal for telecom, satellite, military, and test system applications.
Key features:
– Input VSWR ≤1.8
– Mirror suppression ≥40 dB
– Gain flatness: ±2.0 dB across full band, ≤0.5 dB in 30 MHz segments
– SMA, N‑type, or F‑type I/O; impedance 50 Ω / 75 Ω
– Supply voltage: +12…+24 VDC
– Power consumption: ≤350 mA
– Operating temp: –30…+60 °C
– Storage: –40…+80 °C; humidity up to 95 %
Comes with a 1.5‑year warranty + 7‑year extended service. Contact us for integration guidance.
👉 Order the S-band LNB 3.05–3.45 GHz now and ensure your system’s reliability!
| S-band LNB Technical Specifications |
| Input Frequency Range |
3.05 – 3.45 GHz |
| Output Frequency Range |
0.95 – 1.35 GHz |
| LO Frequency |
4.4 GHz |
| Input VSWR, max |
1.8 |
| Input/Output Impedance |
50 Ω (SMA/N-type), 75 Ω (F-type) |
| LO Frequency Instability |
≤1.0 ppm |
| Phase Noise (1 kHz) |
–65 dBc/Hz |
| Phase Noise (10 kHz) |
–80 dBc/Hz |
| Gain, min |
50 dB |
| Gain Flatness (full band) |
±2.0 dB |
| Gain Flatness (any 30 MHz) |
±0.5 dB |
| P1 dB Output, min |
+5 dBm |
| Image Rejection |
≥40 dB |
| AGC Depth |
≥25 dB |
| Supply Voltage |
+12 V – +24 V |
| Power Consumption, max |
350 mA |
| Operating Temperature |
–30 °C … +60 °C |
| Storage Temperature |
–40 °C … +80 °C |
| Relative Humidity |
0 % – 95 % |
