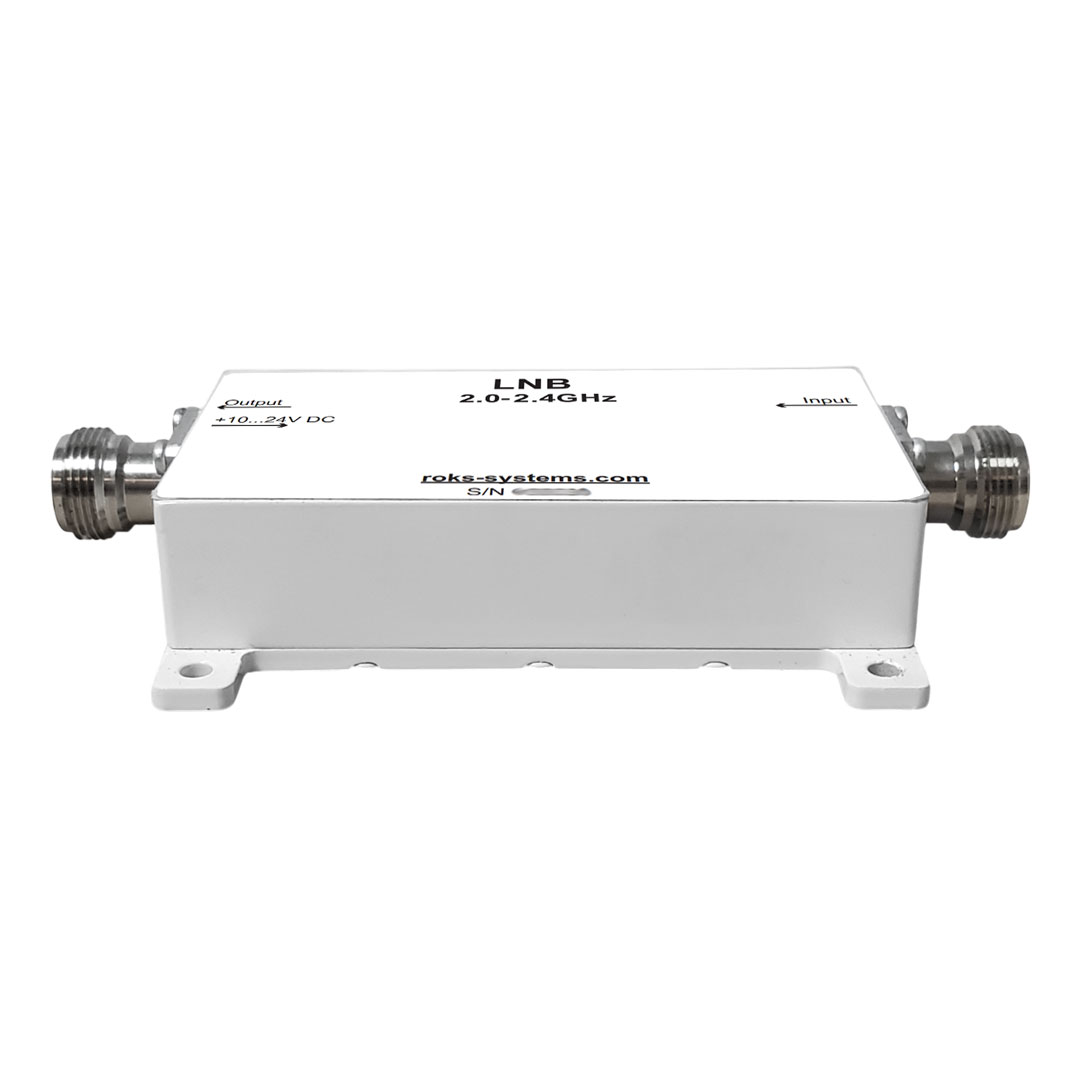

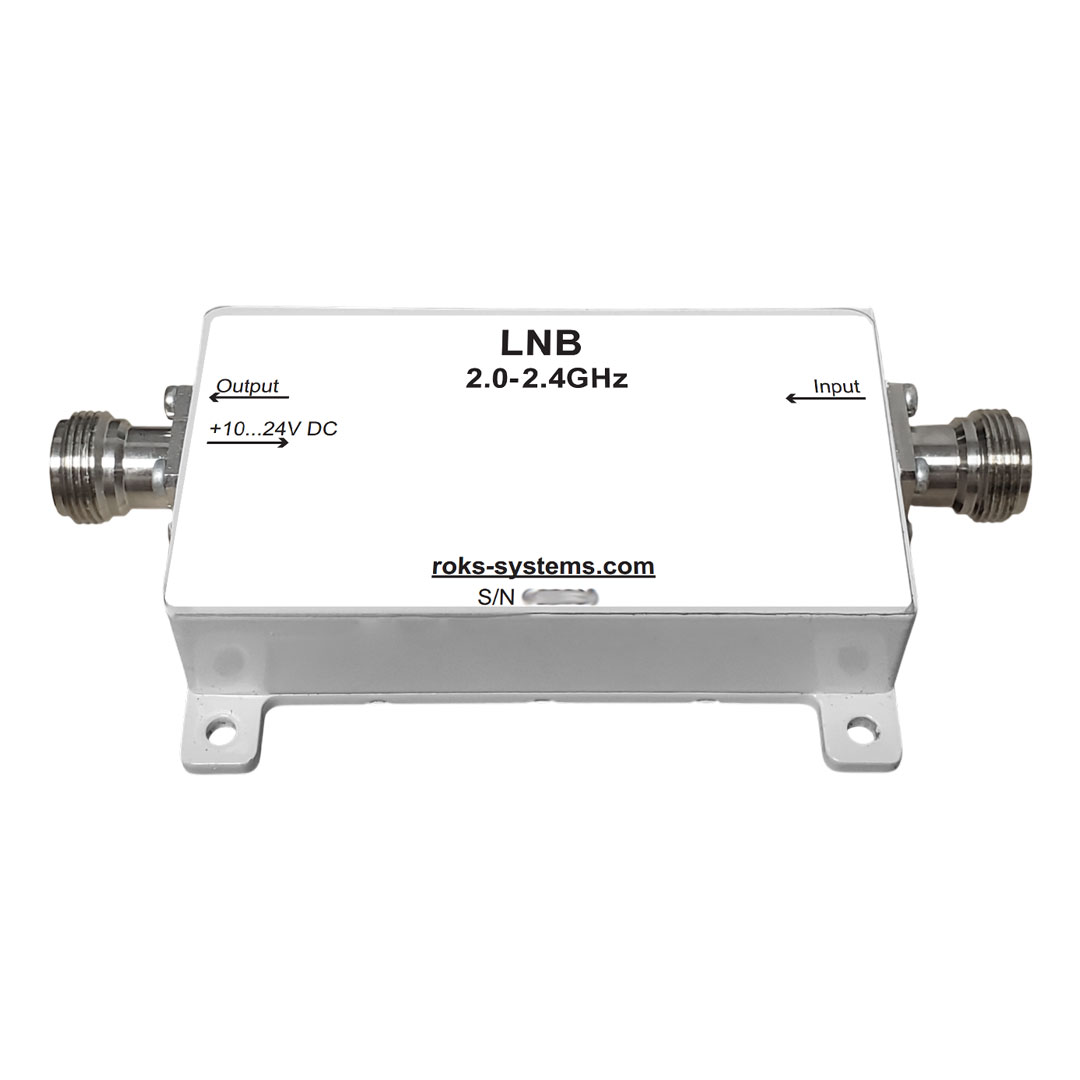

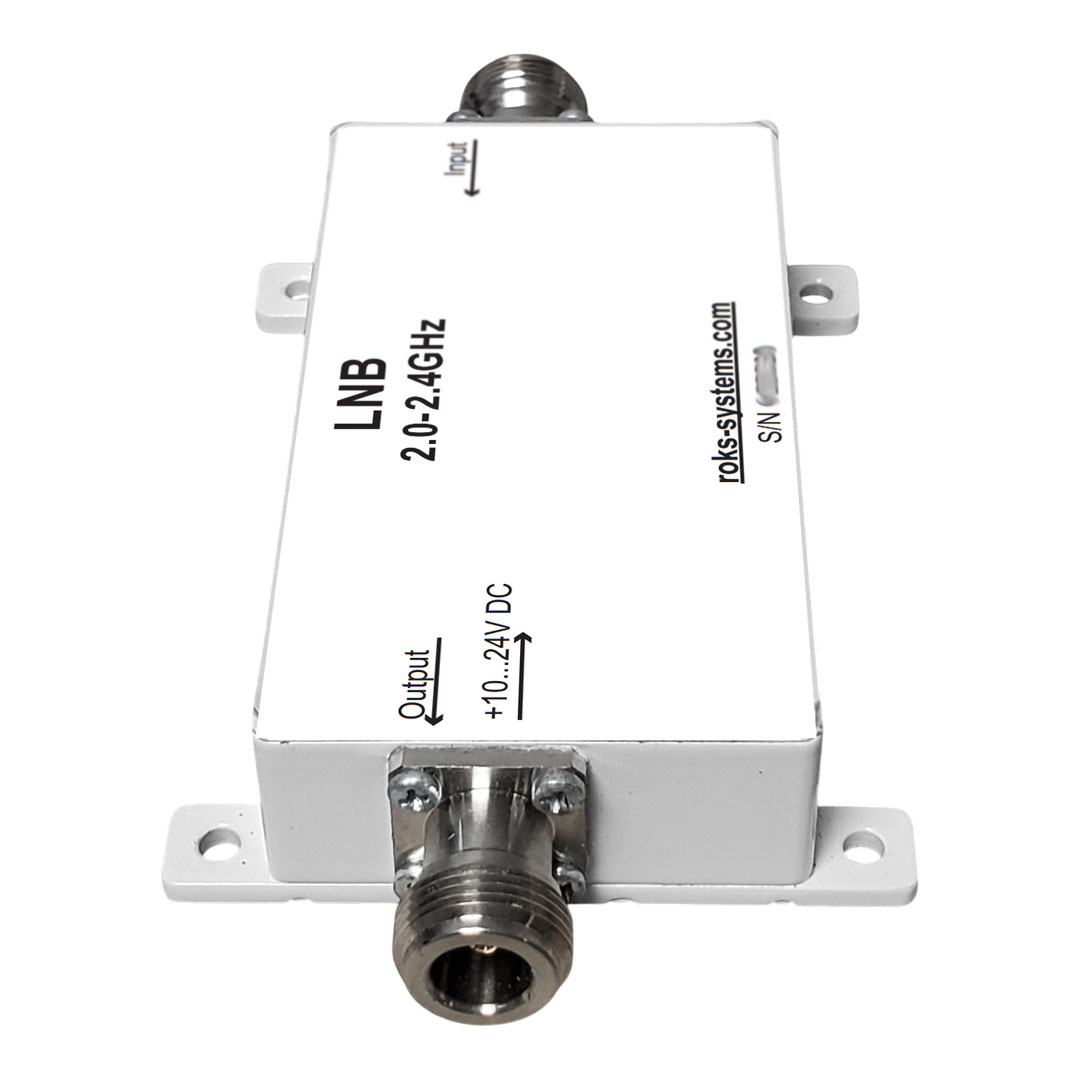

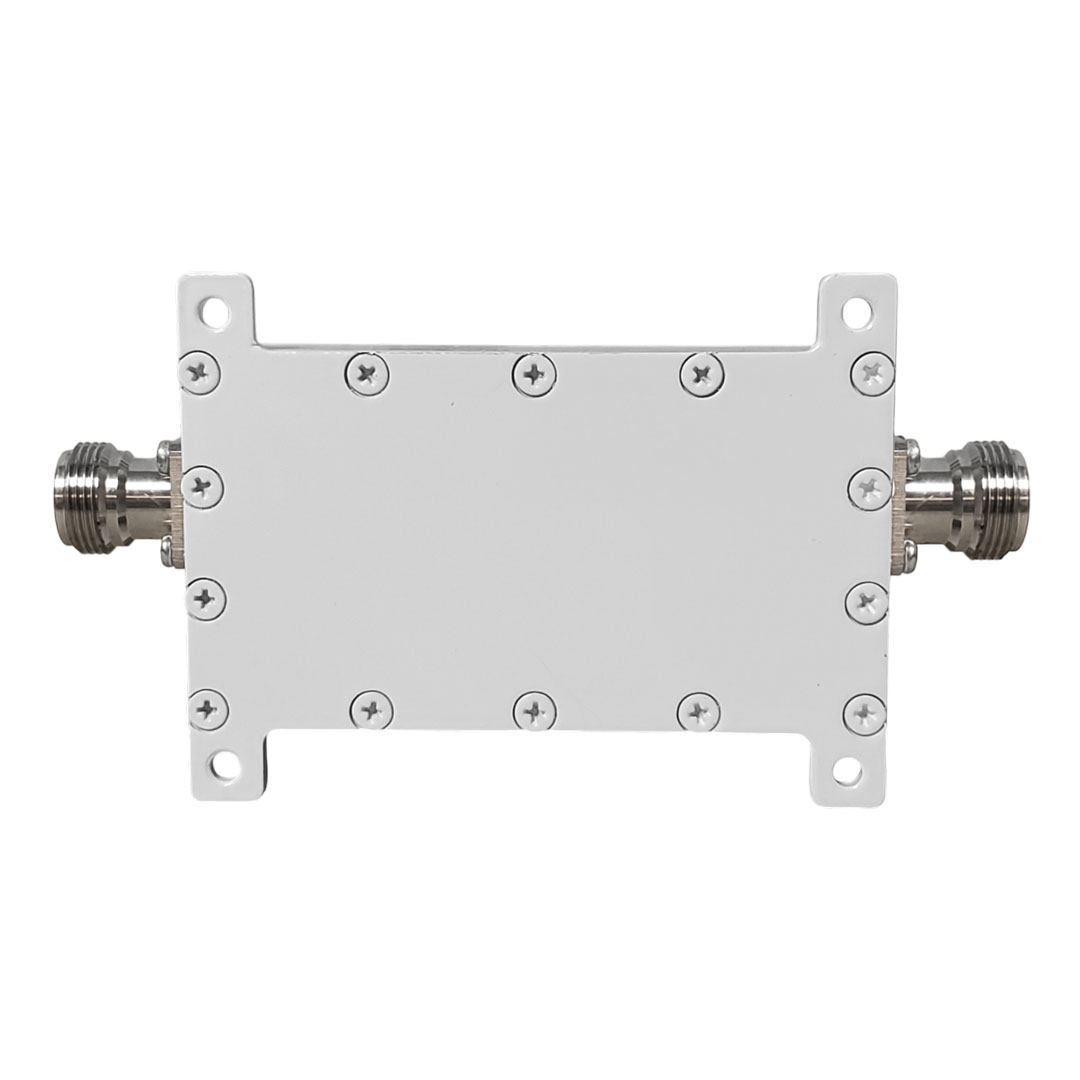

This professional-grade S-band Low‑Noise Block Downconverter (LNB) supports input from 2.0 GHz to 2.4 GHz and downconverts to 0.95 GHz – 1.35 GHz via a precise 3.35 GHz local oscillator. With ≥50 dB gain, excellent phase noise characteristics (–65 dBc/Hz @1 kHz, –80 dBc/Hz @10 kHz), and superior mirror channel suppression (≥40 dB), it’s built for high-performance applications in satellite communications, telemetry, and RF labs.
Key features:
– I/O: SMA, N‑type, F‑type
– LO frequency stability ≤1 ppm
– AGC range ≥25 dB
– Rugged enclosure for –30…+60 °C use, up to 95 % humidity
– Power: +12 V to +24 V, ≤350 mA
Our lab-developed LNBs include a 1.5‑year warranty and long-term 7‑year post-warranty service. Whether you’re a provider, integrator, or engineer — we’re here to support you.
👉 Order the LNB 2.0-2.4 GHz now and ensure your system’s reliability!
| S-band LNB Technical Specifications |
| Input Frequency Range |
2.0 – 2.4 GHz |
| Output Frequency Range |
0.95 – 1.35 GHz |
| LO Frequency |
3.35 GHz |
| Input VSWR, max |
1.8 |
| Input/Output Impedance |
50 Ω (SMA/N-type), 75 Ω (F-type) |
| LO Frequency Instability |
≤1.0 ppm |
| Phase Noise (1 kHz) |
–65 dBc/Hz |
| Phase Noise (10 kHz) |
–80 dBc/Hz |
| Gain, min |
50 dB |
| Gain Flatness (full band) |
±2.0 dB |
| Gain Flatness (any 30 MHz) |
±0.5 dB |
| P1 dB Output, min |
+5 dBm |
| Image Rejection |
≥40 dB |
| AGC Depth |
≥25 dB |
| Supply Voltage |
+12 V – +24 V |
| Power Consumption, max |
350 mA |
| Operating Temperature |
–30 °C … +60 °C |
| Storage Temperature |
–40 °C … +80 °C |
| Relative Humidity |
0 % – 95 % |
