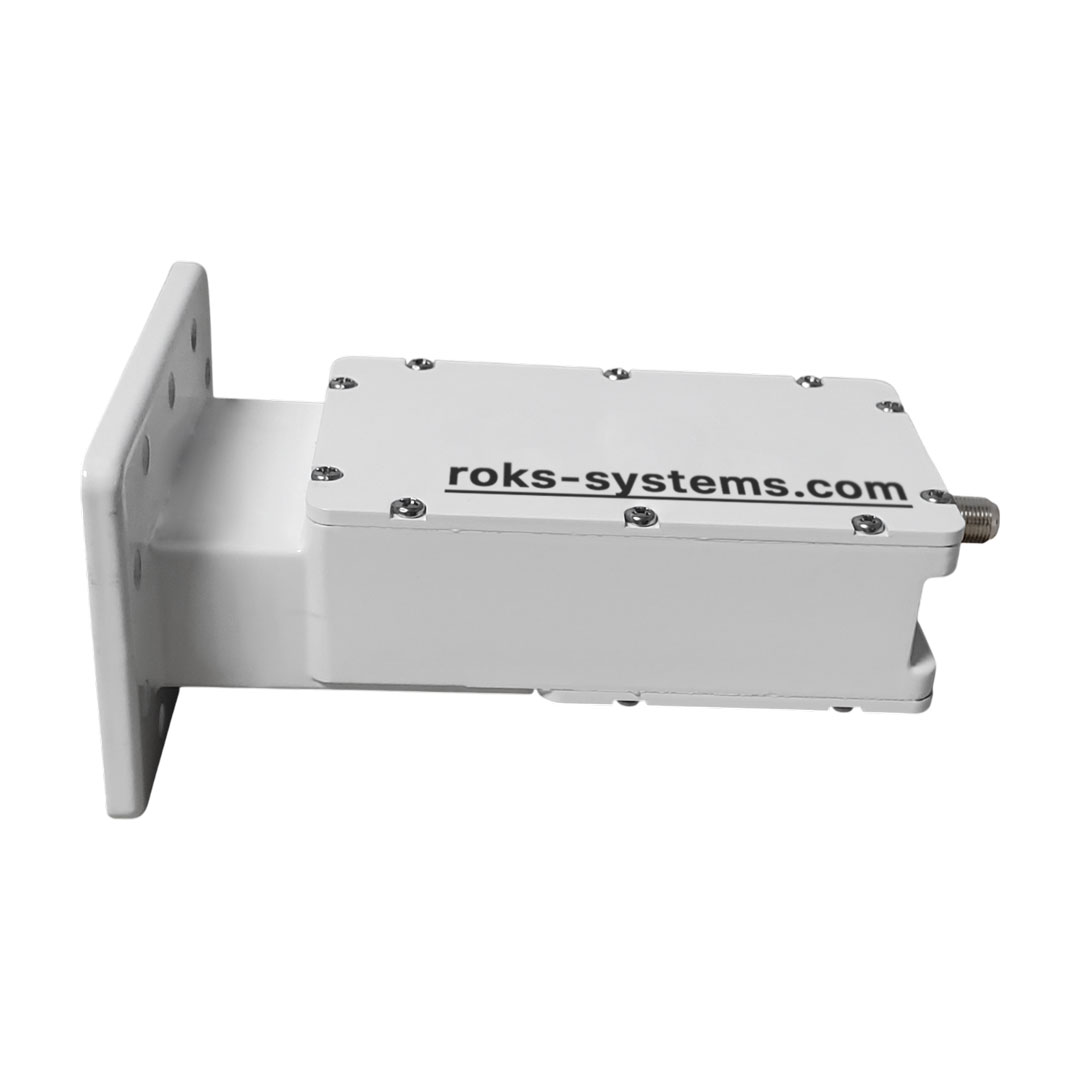

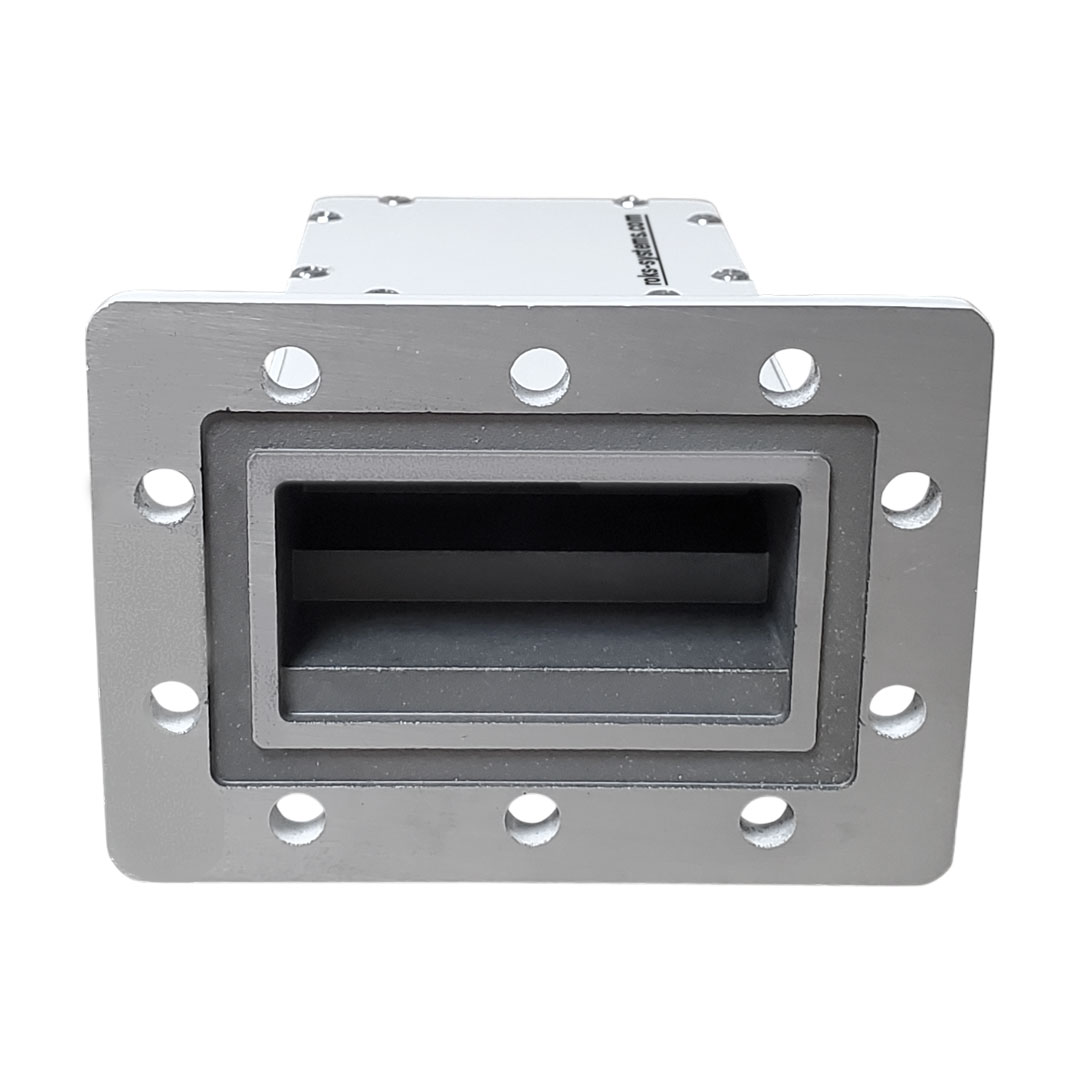

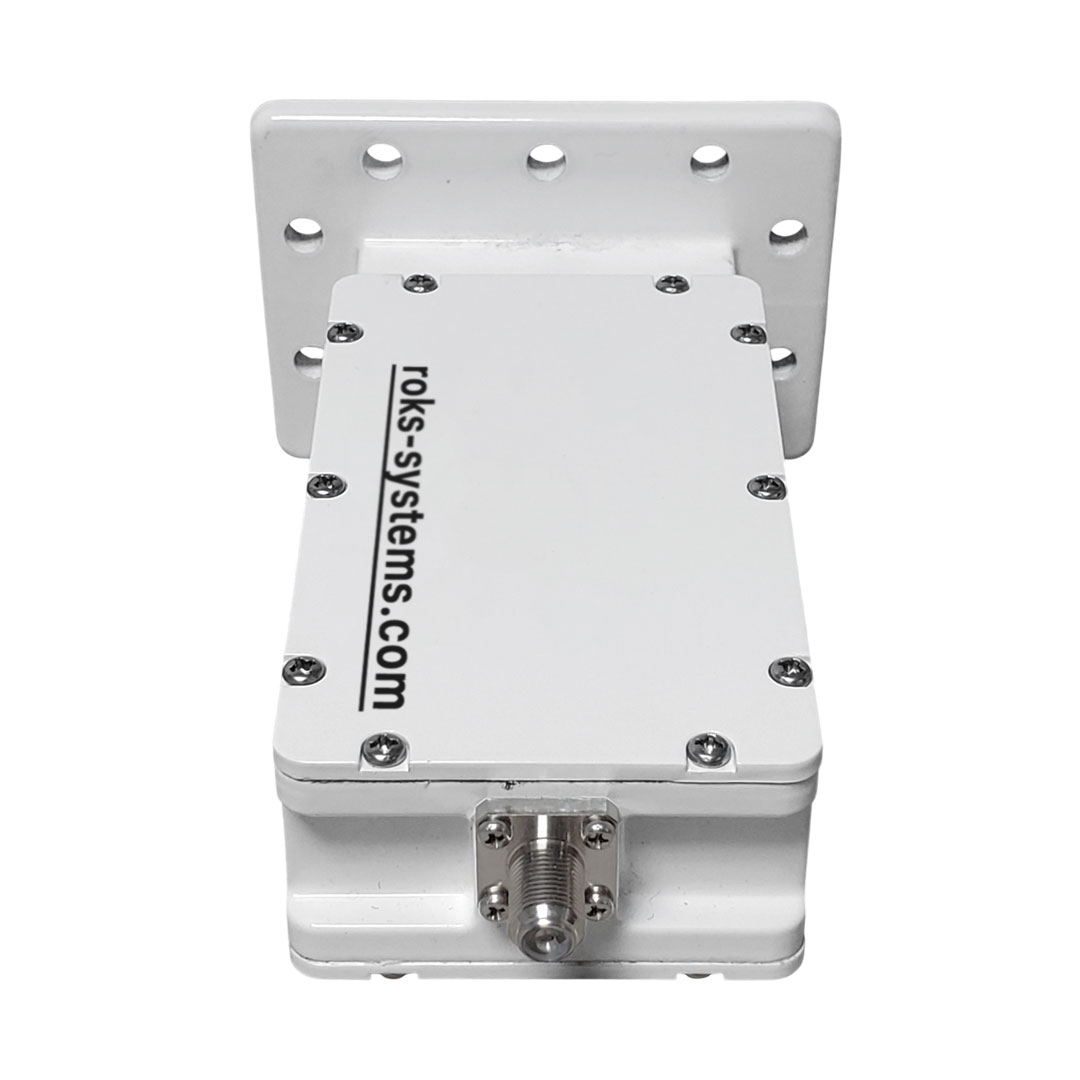

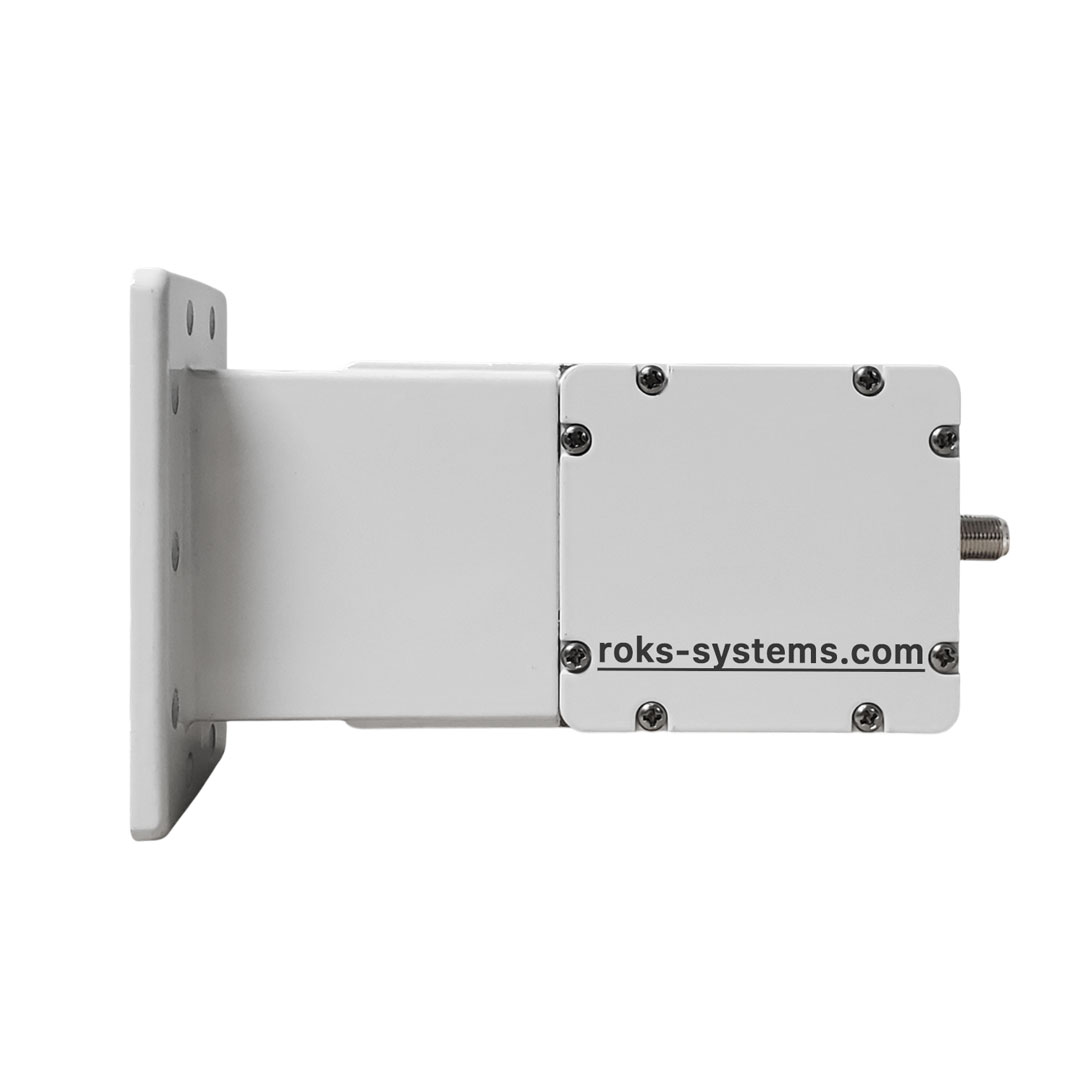

This high-performance RF downconverter C-band LNB 5.25-6.3 WR-159 N/F/SMA operates in the 5.25-6.3 GHz frequency range and converts signals to a lower IF band of 0.95-2.0 GHz. Featuring a stable 4.3 GHz local oscillator with ±1 ppm accuracy and exceptionally low phase noise (up to -104 dBc/Hz), it ensures precise signal processing in demanding microwave communication systems.
With a noise figure as low as 1.9 dB and a minimum gain of 46 dB, this unit provides exceptional signal amplification and clarity. The integrated AGC (Automatic Gain Control) maintains consistent output power between -1 dBm and +1 dBm, while mirror channel suppression exceeds 45 dB.
L.O.: 4.3 GHz IN freq.: 5.25–6.3 GHz OUT freq.: 950 – 2000 MHz
Perfect for satellite reception, professional TV broadcasting, telemetry, radar systems, and other RF front-end applications, this converter meets the expectations of telecom professionals, system integrators, and advanced developers.
Key Features:
- Input frequency: 5.25-6.3 GHz
- Output frequency: 0.95-2.0 GHz
- Local oscillator: 4.3 GHz with ±1 ppm stability
- Low phase noise: up to -104 dBc/Hz
- High gain: ≥ 46 dB
- Built-in AGC system with 25 dB depth
- Image rejection ≥ 45 dB
- Low Noise Figure: ≤ 1.9 dB
Main Functions:
- Downconversion of high-frequency RF signals for IF processing
- Amplification of weak microwave signals
- Signal stabilization via AGC
- Filtering and suppression of unwanted frequencies
- Frequency shifting for analysis, demodulation, or recording
Why Order From Us?
✅ In-house RF laboratory for antenna and converter testing
✅ Remote technical support from real engineers
✅ Extended 1.5-year warranty + 7 years post-warranty service
✅ We empower professional broadcast and telecom systems
👉 Contact us & order now – improve your downconverting part with C-band LNB 5.25-6.3 WR-159 N/F/SMA
| Input Parameters: |
| Input frequency range |
5.25 – 6.3 GHz |
| Input VSWR, max |
1.9 |
| Local Oscillator: |
| LO frequency |
4.3 GHz |
| LO stability |
± 1 ppm |
| Phase noise @1 kHz |
–95 dBc/Hz |
| Phase noise @10 kHz |
–104 dBc/Hz |
| Output Parameters: |
| Output frequency range |
0.95 – 2.0 GHz |
| Gain |
≥ 46 dB |
| Gain flatness (full band) |
≤ 3.5 dB |
| Gain flatness (30 MHz band) |
± 0.5 dB |
| Image rejection |
≥ 45 dB |
| Output power with AGC |
–1 dBm…1 dBm |
| Output P1dB |
≥ 19 dBm |
| Output VSWR, max |
1.7 |
| Performance: |
| Noise figure |
≤ 1.9 dB |
| AGC depth |
≥ 25 dB |
| Power Supply: |
| Voltage |
+12 to +24 VDC |
| Power consumption, max |
3.3 W |
| Mechanical: |
| Weight |
— |
| Dimensions |
— |
