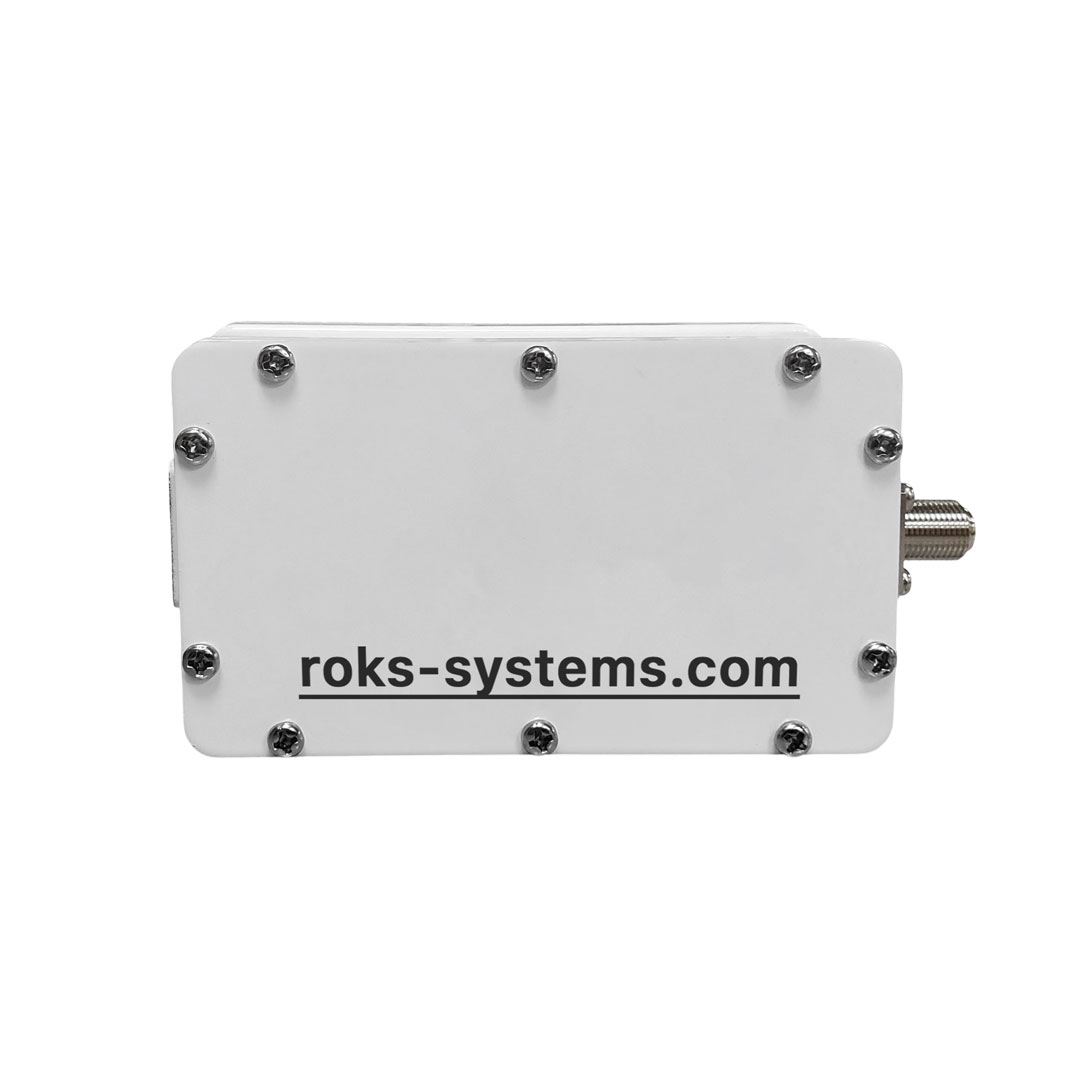

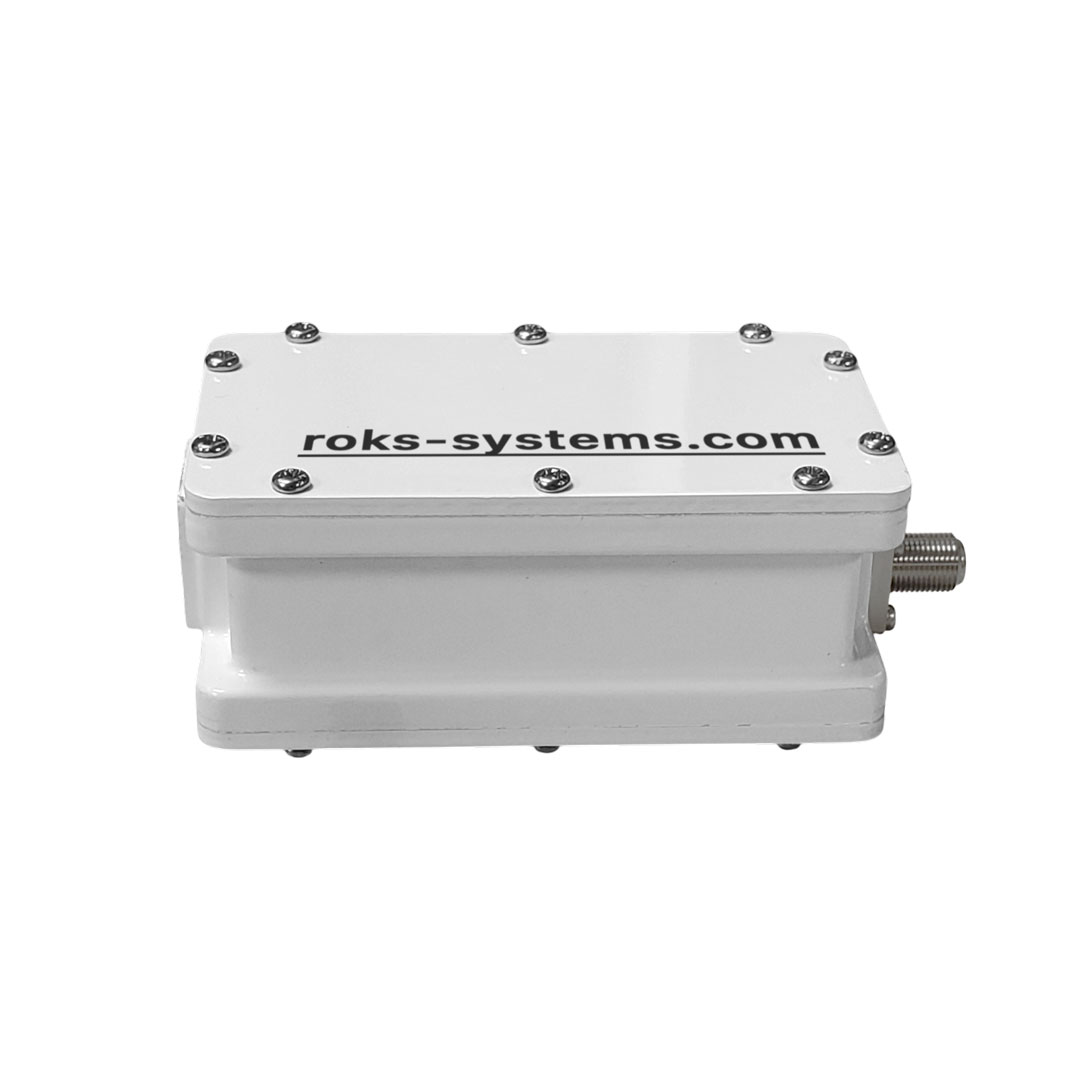

Ka-band LNB 20.2-21.2 GHz WR-42 N/F/SMA

The Ka-band LNB 20.2–21.2 GHz WR-42 N/F/SMA is a professional-grade low-noise block downconverter designed for satellite communication, RF testing, and telecommunication systems. Engineered with a WR-42 waveguide flange, this unit supports input signals in the 20.2 to 21.2 GHz range and downconverts them to a 0.95–1.95 GHz IF output, making it highly suitable for receivers and signal analyzers. Its integrated local oscillator (LO) at 19.25 GHz ensures frequency stability for precision applications.

With N-type, F-type, and SMA output connectors, this LNB offers compatibility across diverse setups. The low noise figure, enhanced dynamic range, and solid thermal stability make it a go-to solution for broadcasters, test engineers, military-grade communications, and scientific research labs.

L.O.: 19.25 GHz IN freq.: 20.2-21.2 GHz OUT freq.: 950-1950 MHz

 Key Features:

• Frequency range: 20.2–21.2 GHz

• Noise figure: 1.5 dB typ. / 1.6 dB max.

• High conversion gain: up to 65 dB

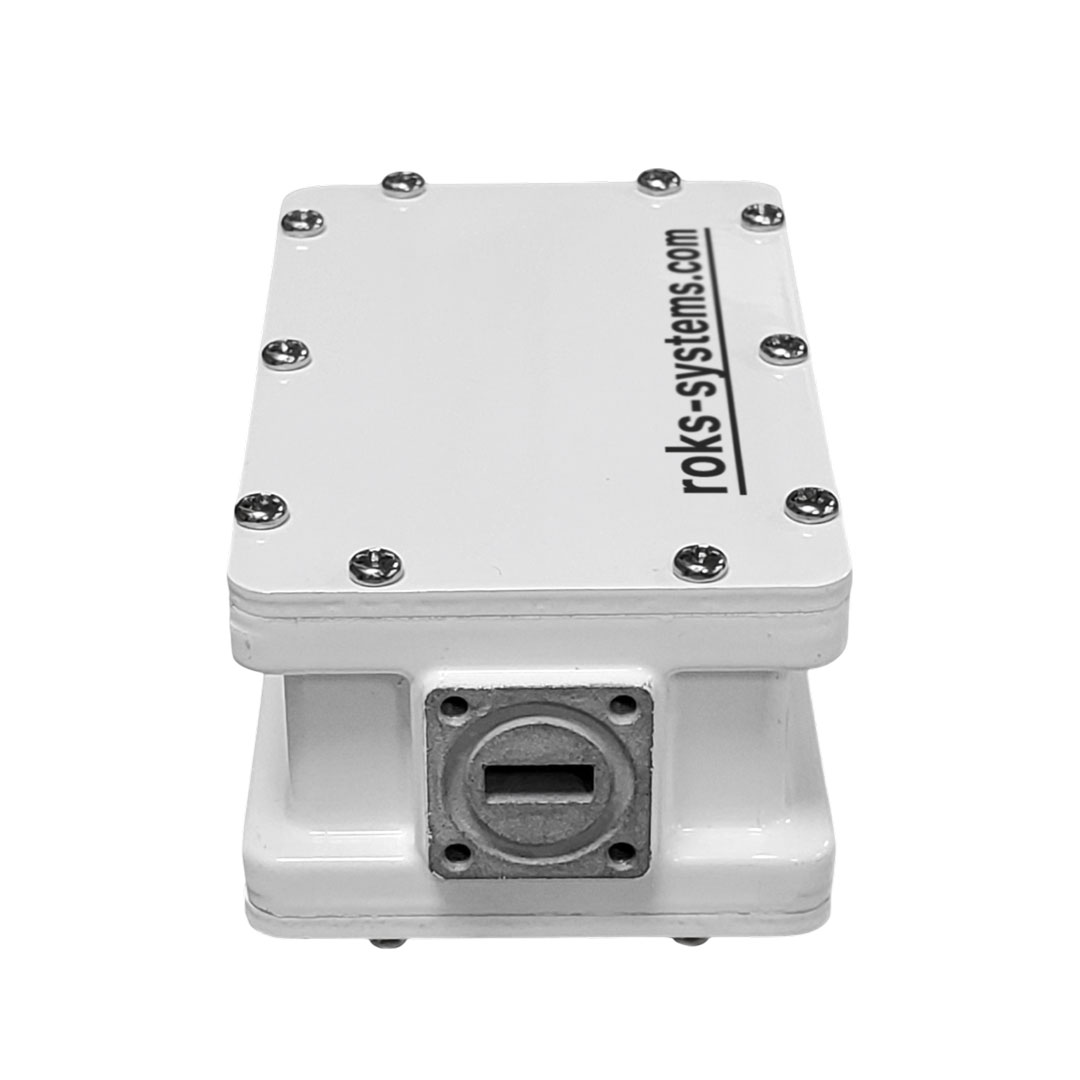

• WR-42 input flange

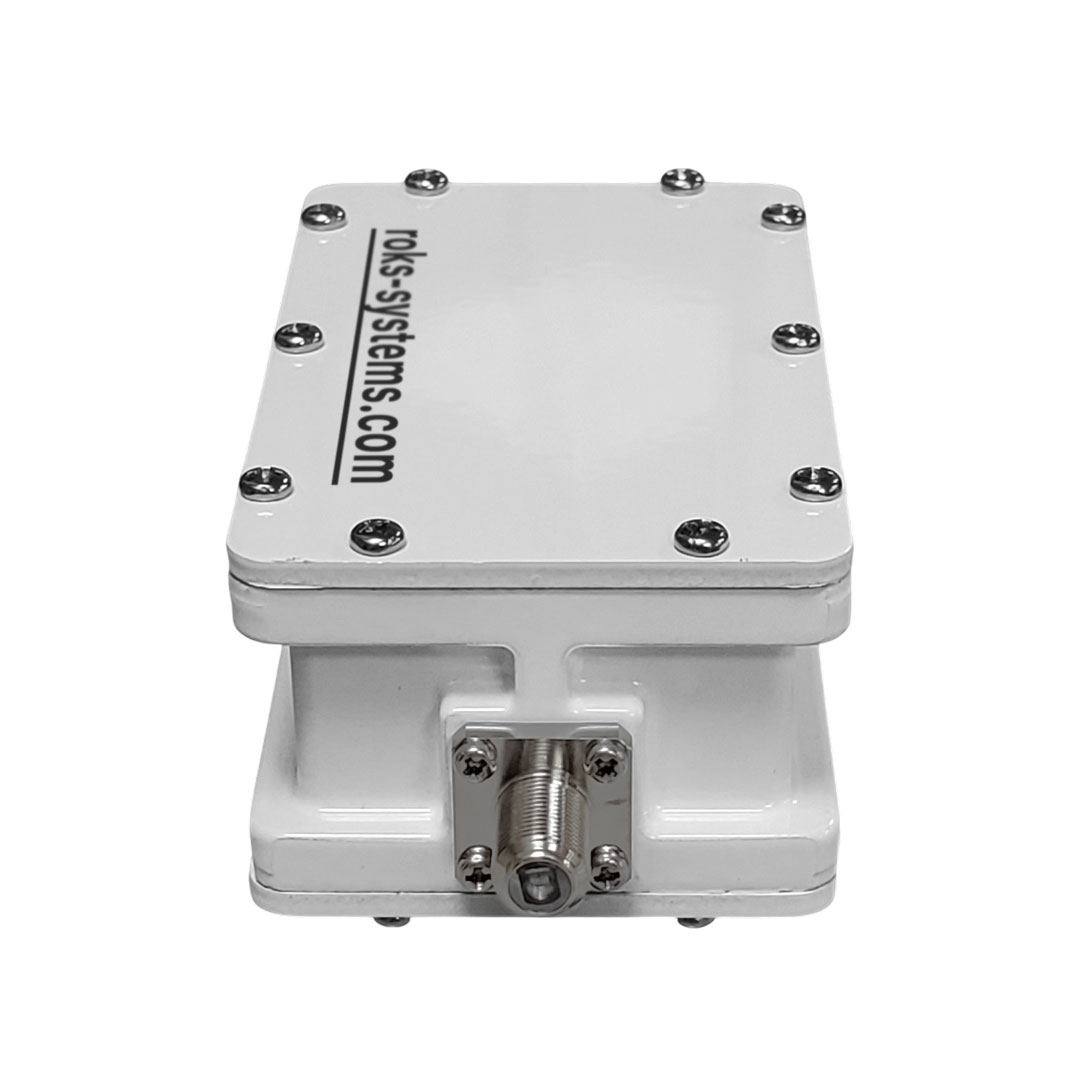

• F or N-type output

• IP67 waterproof housing

• External 10 MHz reference input

• Low LO phase noise: -95 dBc/Hz @100 kHz

• 1.5-year warranty, 7-year service

     Main Functions:

• Downconversion of Ka-band signals to 950–1950 MHz IF

• Signal amplification with wide dynamic range

• Filtering and rejection of image and spurious frequencies

• Stable LO generation for frequency accuracy

• Compatibility with satellite and telecom systems

     Why Buy From Us:

• 📡 In-house R&D lab ensures premium quality and precision testing.

• 👨‍🔧 Remote technical support team always ready to assist.

• 🛡️ 1.5-year extended warranty for all products.

• 🔧 Post-warranty service for 7 years included.

• 🎯 Trusted by professional TV broadcasters and telecom developers.

  👉 Order the Ka-band LNB 20.2-21.2 GHz WR-42 N/F/SMA now and ensure your system’s reliability!
