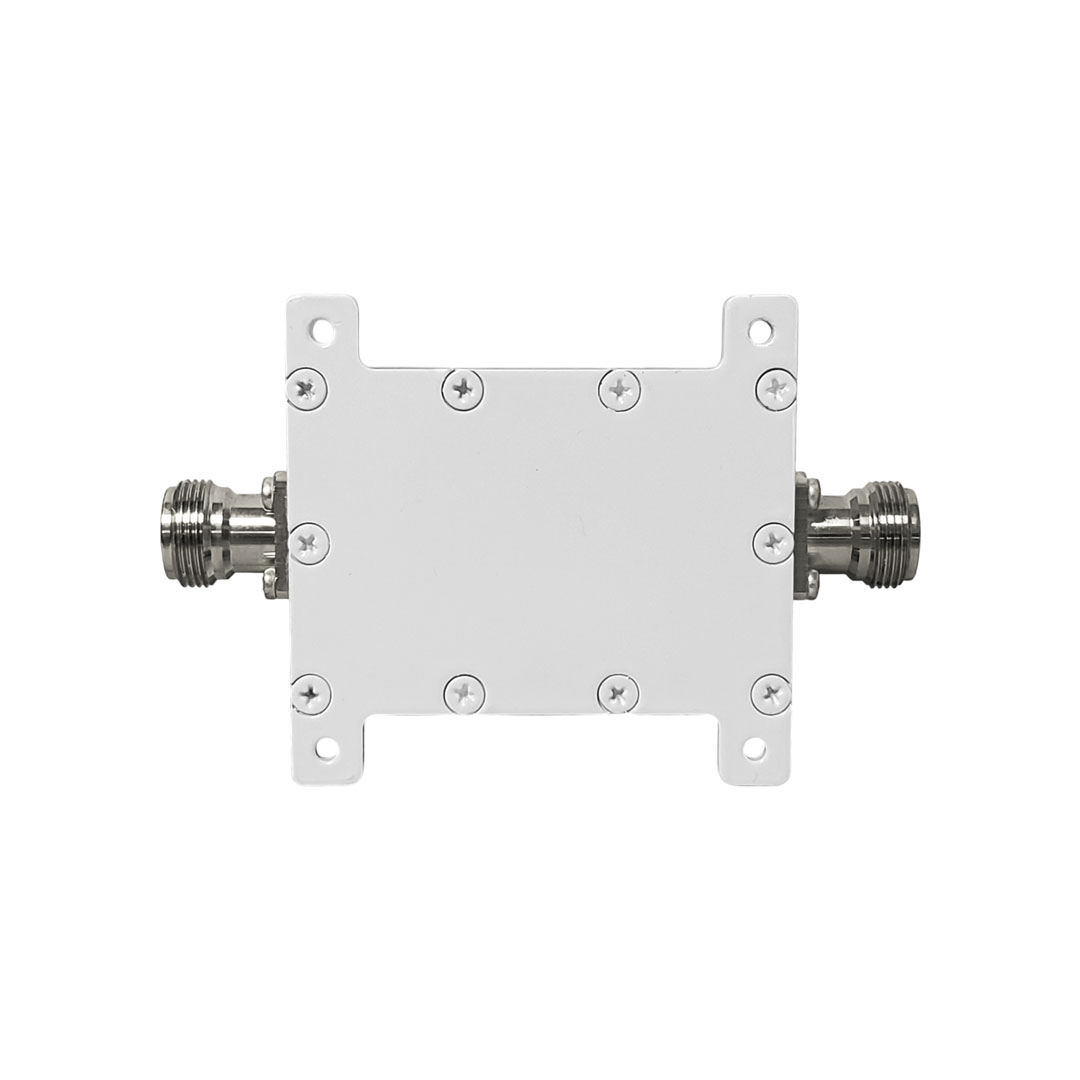

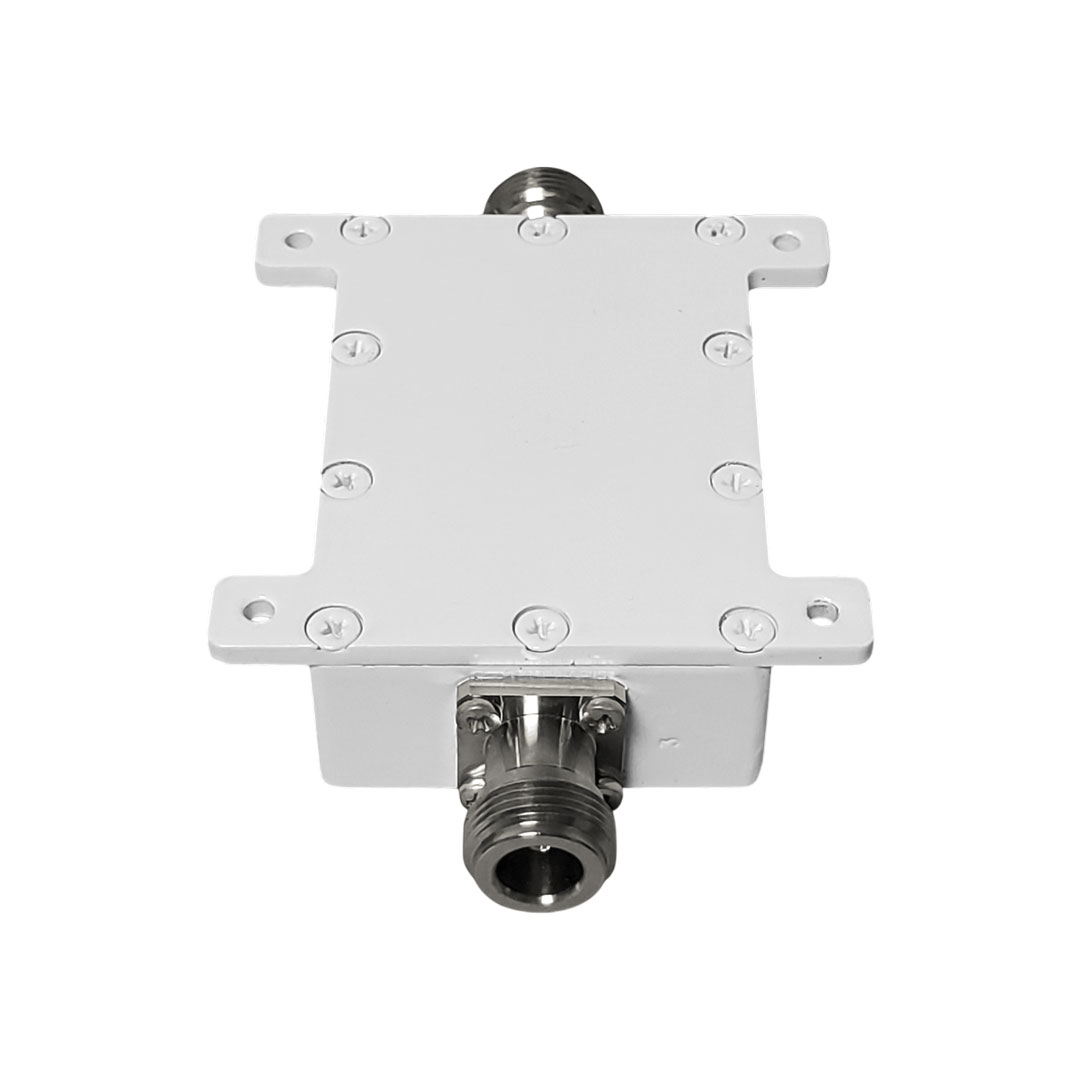

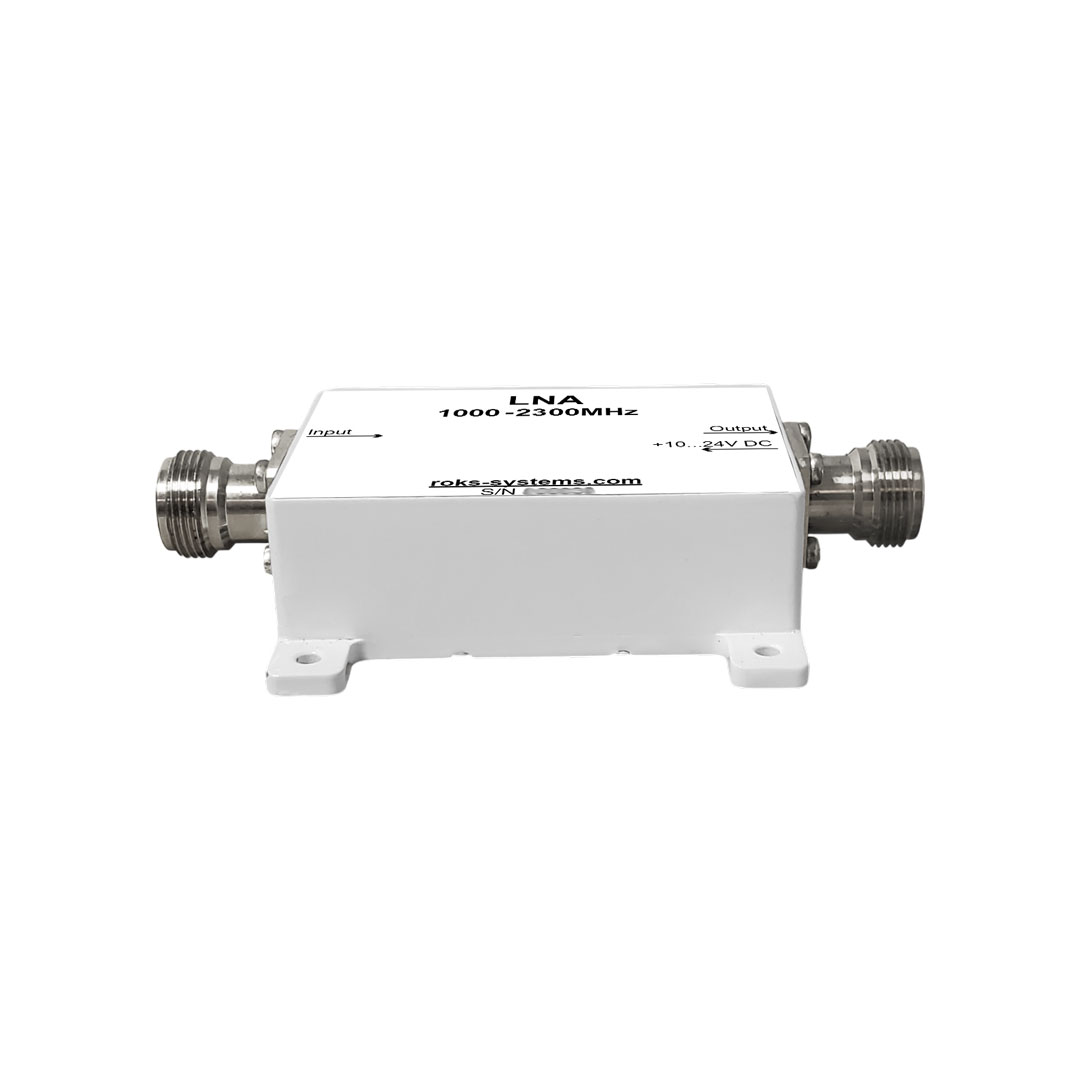

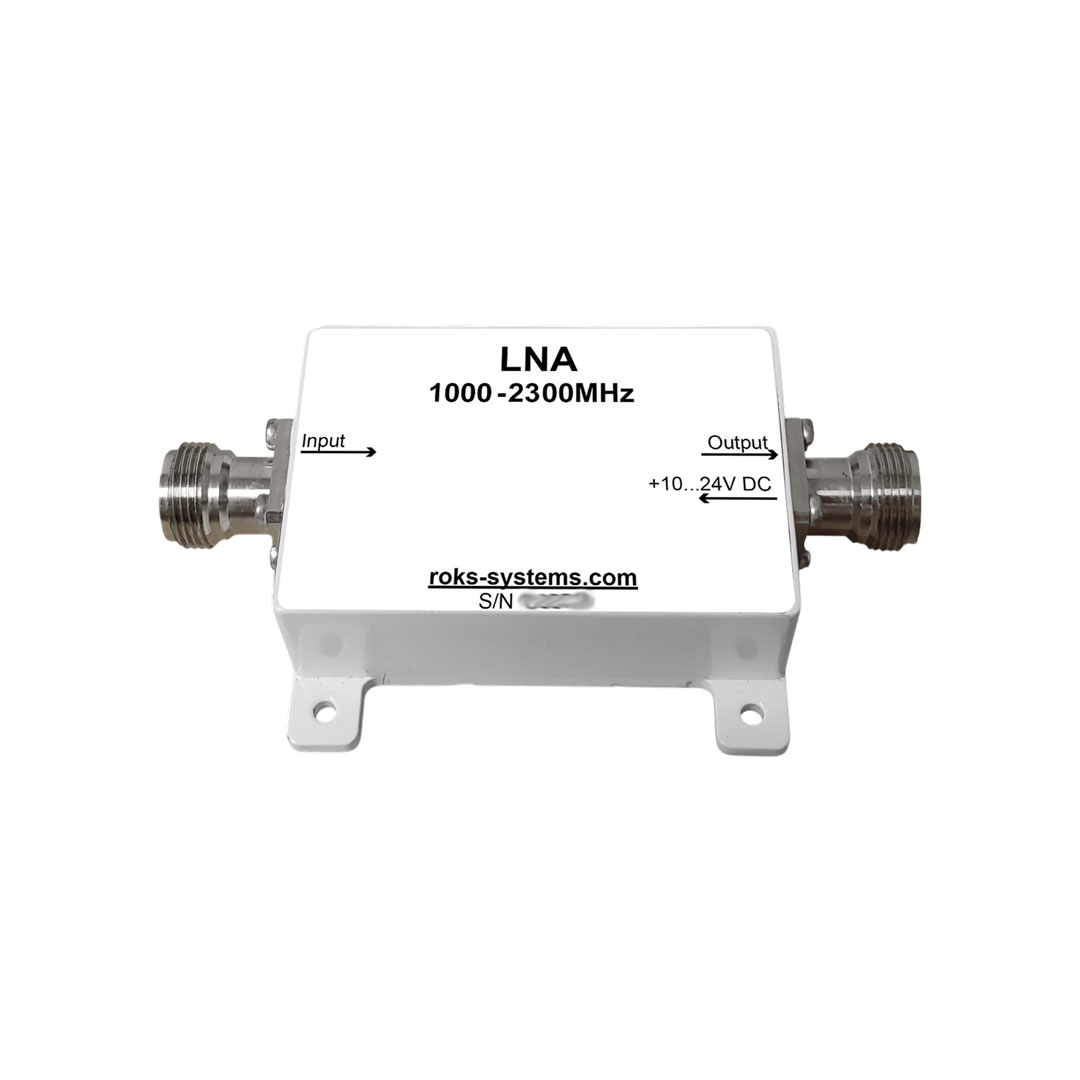

This high-performance L-band Low-Noise Amplifier (LNA) operates in the 1.0–2.3 GHz range, tailored for professional use in satellite, terrestrial broadcasting, and telecom systems. It offers ≥40 dB gain and a noise figure ≤2 dB, delivering clean signal amplification even in demanding RF environments.
Featuring multiple I/O options — N‑type, SMA, and F‑type — it integrates seamlessly with most industry-standard setups. Its wide operating voltage range (+10 V to +28 V), low current consumption (≤200 mA), and robust environmental resistance (–30 °C…+60 °C, up to 95 % RH) make it ideal for field deployment.
Why choose us?
– In-house RF design and testing lab
– Professional remote support
– 1.5-year warranty + 7 years of post-warranty support
– Focused on advanced telecom and TV system development
👉Order the LNA 1.0-2.3 GHz now and ensure your system’s reliability!
| Main technical specifications |
| Input/output VSWR, max |
1.8 |
| Input/output Impedance |
50 Ω (SMA/N‑type) / 75 Ω (F‑type) |
| Gain, min |
40 dB |
| Noise Figure, max |
2 dB |
| P1 dB Output, ≥ |
+5 dBm |
| Gain Flatness (full band) |
±4 dB |
| Gain Flatness (any 30 MHz) |
±0.5 dB |
| Supply Voltage |
+10 V … +28 V |
| Current Consumption, max |
200 mA |
| Operating Temperature |
–30 °C … +60 °C |
| Storage Temperature |
–40 °C … +80 °C |
| Relative Humidity |
0 % – 95 % |
