Technical Specifications of S-Band Wi-Fi Horn Antenna 2.05-2.65 GHz

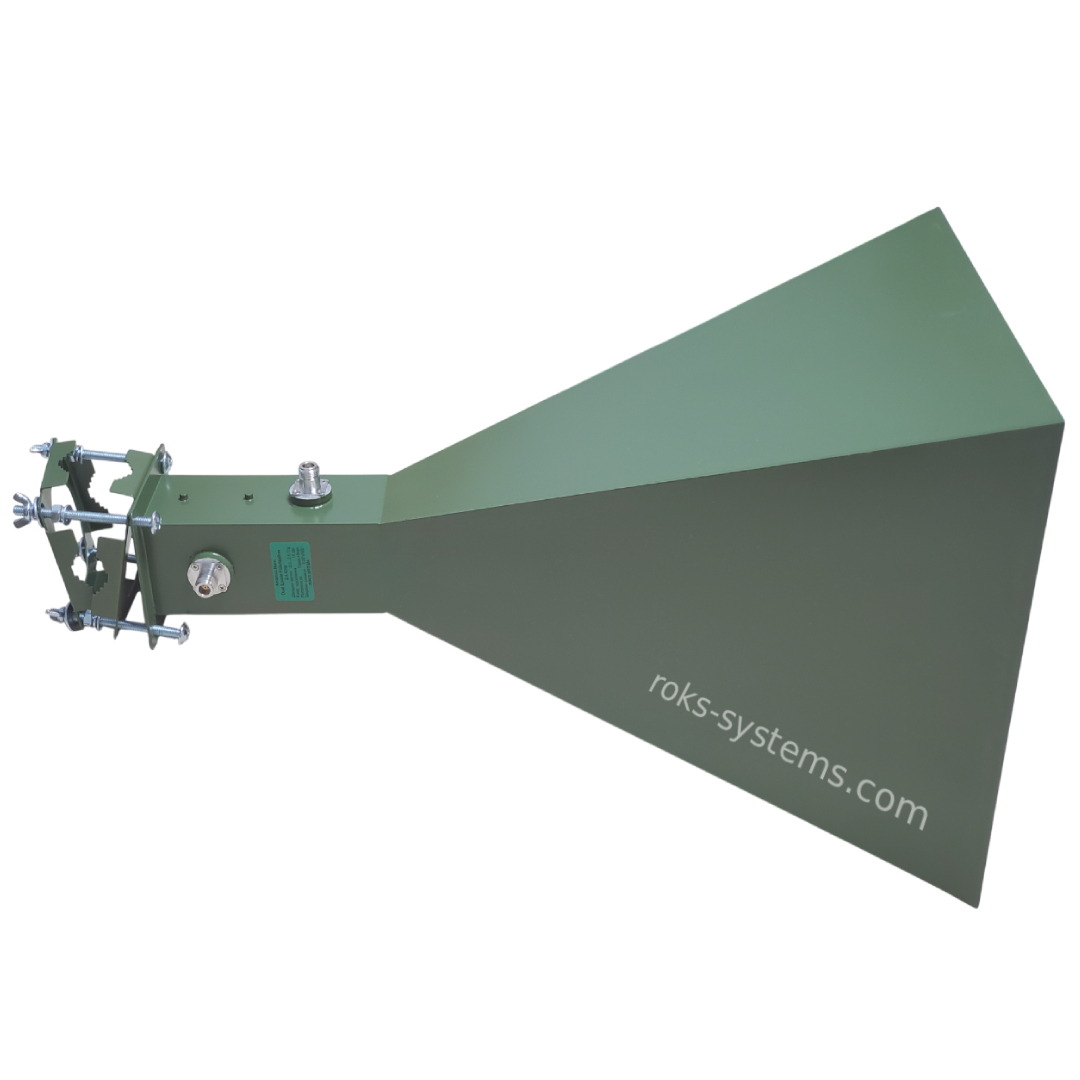

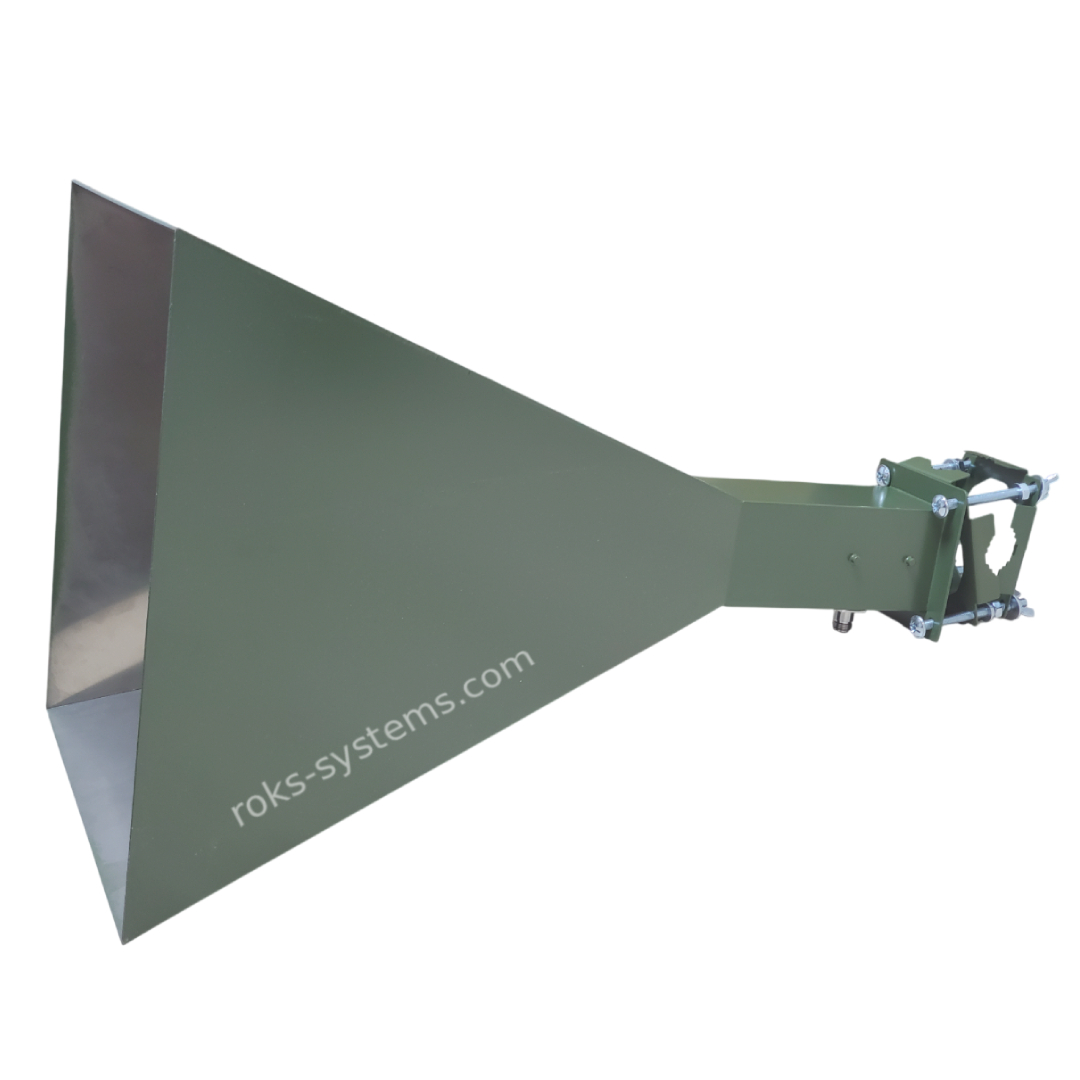

This directional horn antenna operates in the S-band (2050-2650 MHz / 2.05-2.65 GHz) and provides ≥ 17.0 dB gain for focused links. The antenna supports dual circular polarization (LHCP + RHCP) and uses 2× N-Female connectors with 50 Ohm impedance. The radiation pattern is controlled with a 28° beamwidth (max, at -3 dB level), while VSWR 1.5 helps maintain good impedance matching. Cross-polarization isolation is ≥ 20 dB. Power handling is 150 W continuous and 200 W peak power.
Key Features of S-Band Wi-Fi Horn Antenna 17.0 dB, LHCP + RHCP
Dual circular polarization (RHCP/LHCP)

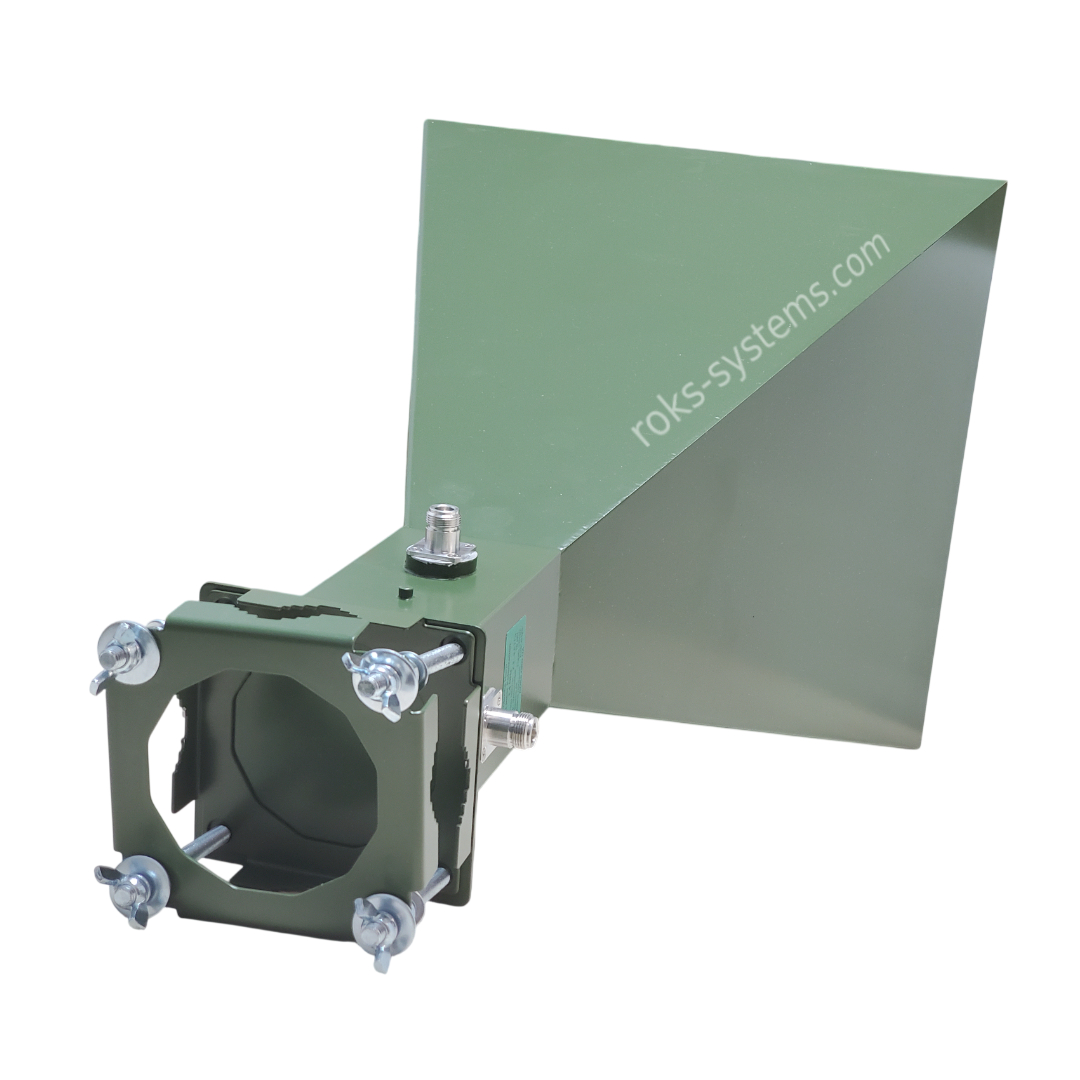

Dual circular polarization (LHCP + RHCP) improves flexibility in RF systems where circularly polarized links are required and allows operation with both RHCP and LHCP signal paths.
Controlled narrow-beam directivity
A 28° beamwidth supports targeted coverage and better link control versus omnidirectional antennas, helping keep energy where it’s needed.
RF efficiency and matching
With 50Ω impedance and VSWR 1.5, the antenna is built for stable coaxial integration and efficient power transfer through 2× N-Female interfaces.
High power handling
Rated for 150 W continuous power and 200 W peak power, suitable for high-power RF tasks within the specified band.
Applications of Wi-Fi Horn Antenna 2.05-2.65 GHz
This S-band horn antenna is intended for:
- Wireless backhaul and directional RF links in the 2050-2650 MHz range
- Point-to-point (PtP) and point-to-multipoint (PtMP) connections
- Wi-Fi network links and specialized RF systems in the band
- Monitoring and field communications use-cases where a directional pattern is required
- Use in radio reconnaissance / electronic warfare contexts as described (RER/REB), and related professional systems
- UAV / drone ground control link and FPV coverage extension use-cases within the stated frequency range

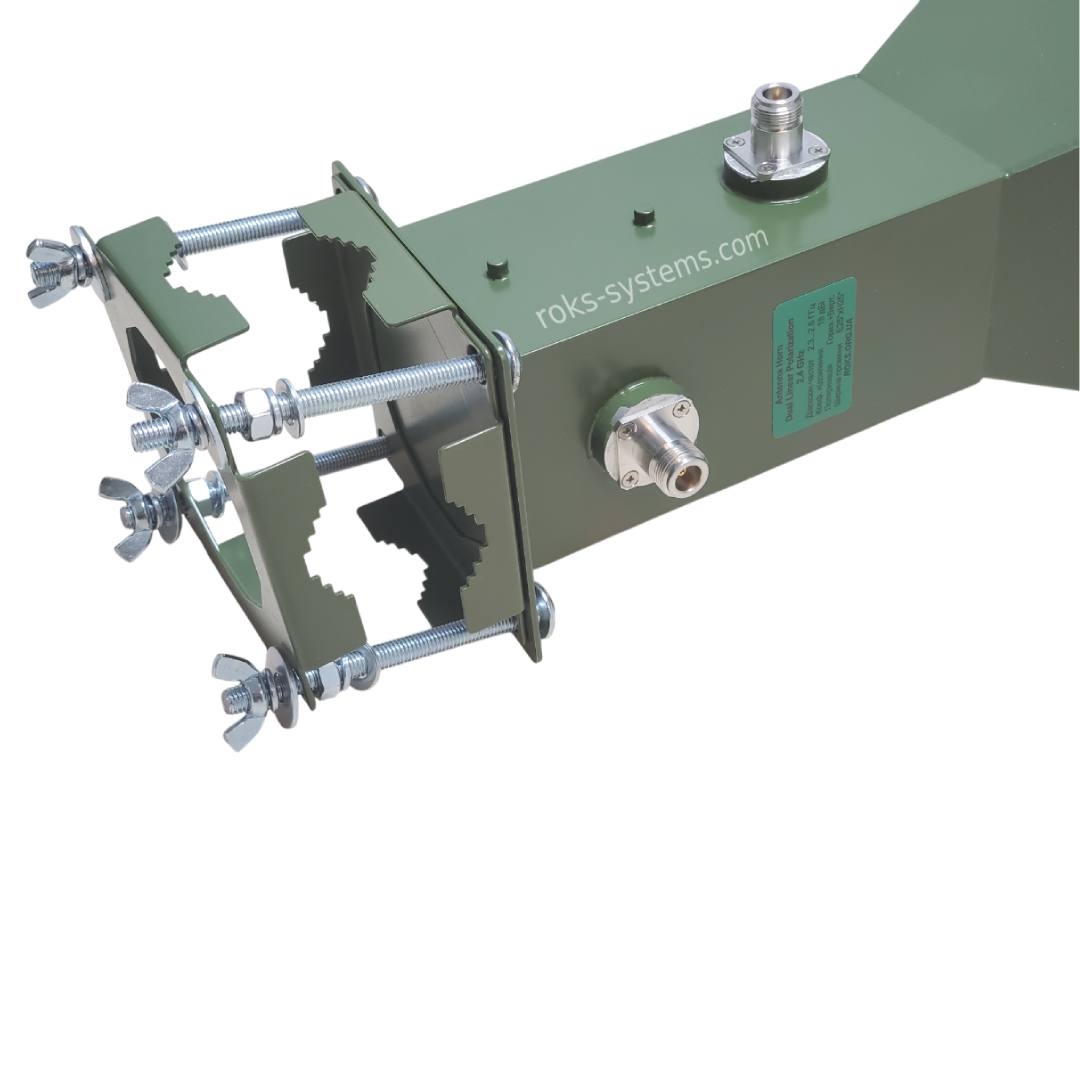

For mobile platforms (ground robotic platforms, tanks, APCs), installation may require additional mounting hardware that is not included.
Compatibility of S-Band Horn Antenna 2.05-2.65 GHz with dual circular polarization
- Compatible with RF equipment operating in 2050-2650 MHz that supports 50 Ohm coaxial systems
- Connection via 2× N-Type female (N-Female) ports (use matching N-type coax cables/adapters as required)
How It Works ❓

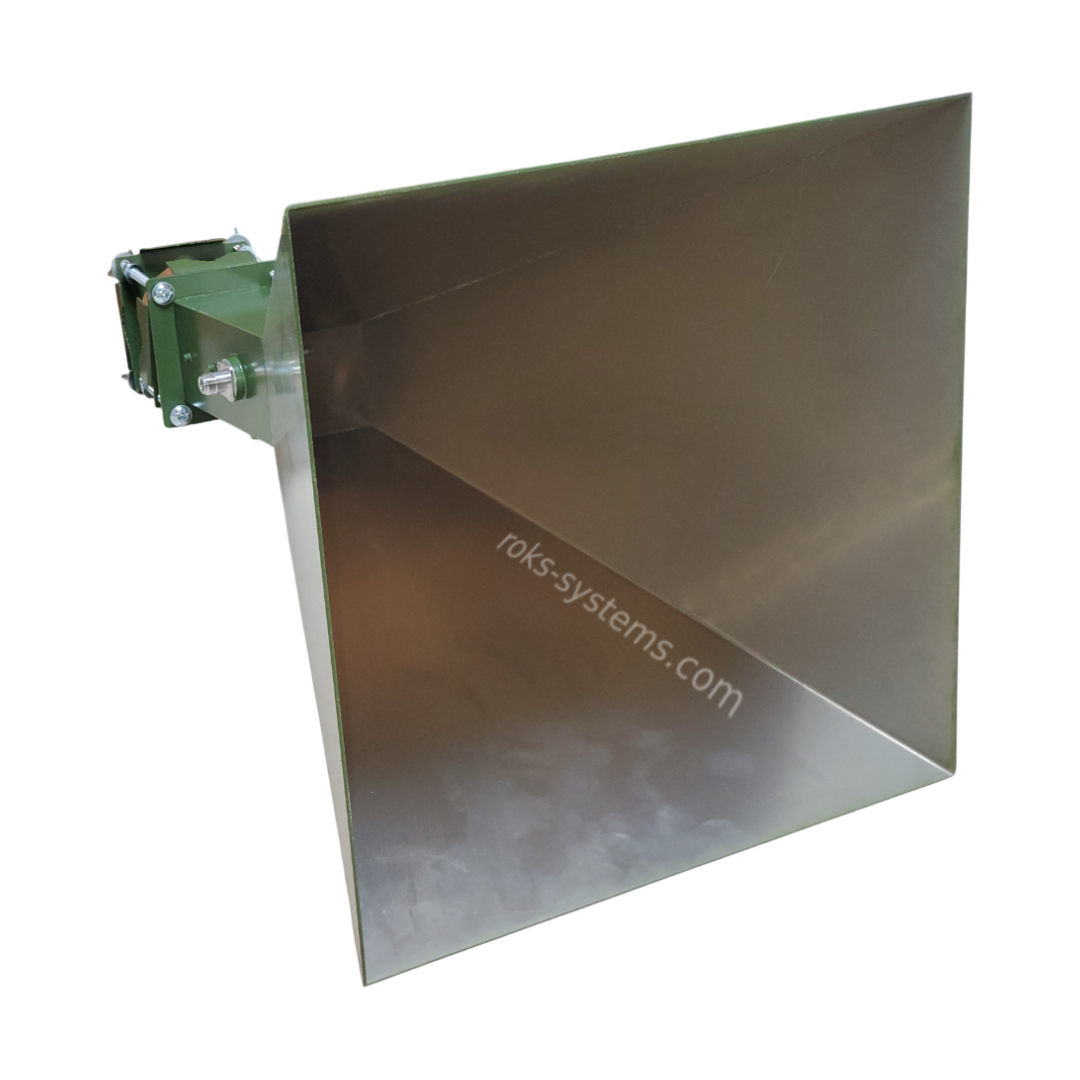

A horn antenna forms a directional radiation pattern by guiding RF energy through its horn structure, producing a controlled beam (here, up to 28° at -3 dB). With LHCP + RHCP circular polarization, the antenna supports circularly polarized signal paths while maintaining good matching (VSWR 1.5) into a 50Ω system through dual N-Female connectors.
Why Choose the S-Band Wi-Fi Horn Antenna 2.05-2.65 GHz, 17.0 dB, LHCP + RHCP Circular Polarization, 2×N-Female, 50 Ohm ❓
- S-band coverage (2.05-2.65 GHz) with ≥ 17 dB gain
- RHCP/LHCP dual circular polarization for flexible system design
- 28° controlled beamwidth for directional links
- Low VSWR 1.5 and 50Ω impedance for reliable integration
- 150 W continuous / 200 W peak power handling

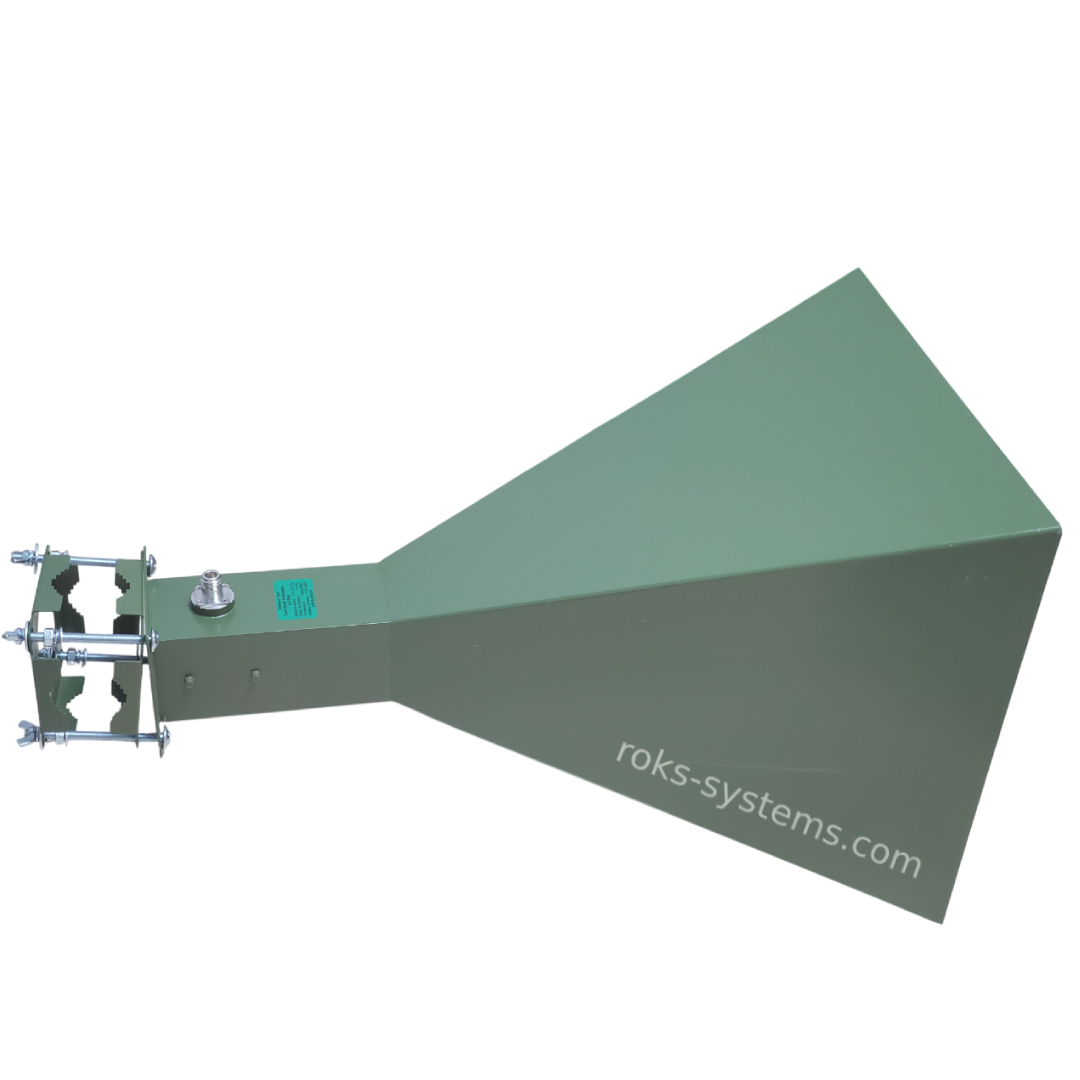

- Compact mechanical profile: 305 × 305 × 600 mm, ≤1.6 kg
Need a 2050-2650 MHz (S-band) directional solution with LHCP+RHCP circular polarization and 2× N-Female 50Ω interface?
👉Choose this horn antenna for stable, controlled RF links.
