Horn WiMAX Repeater Antenna 5.05-6.0 GHz, 20 dBi, Horizontal + Vertical Polarization, 2×SMA, 50 Ohm, Protective Cover + Mount

Short description

Outdoor 5050-6000 MHz dual-polarized horn antenna for WiMAX repeaters: 20 dBi, 20° beam, 2×SMA, 50 Ohm, VSWR≤1.5, 150W continuous/200W peak power, with cover and tilt pole bracket.

4-6 GHzLinear Horizontal + Vertical Polarization
- +

Request for customized equipment

    • Description
    • Downloads

    Product Description

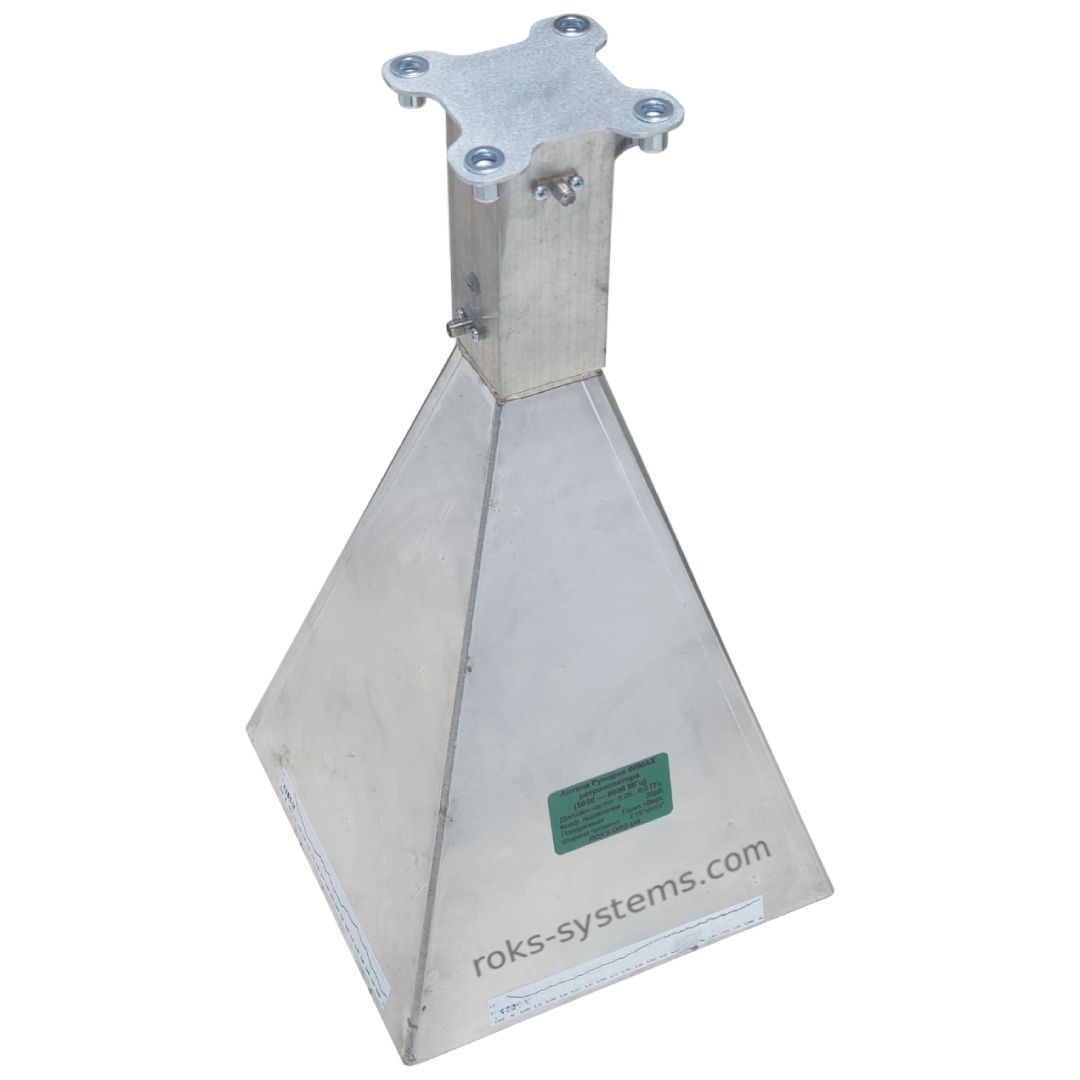

    Horn WiMAX Repeater Antenna 5.05-6.0 GHz is a 5050-6000 MHz dual-polarized horn antenna 20 dBi with simultaneous horizontal and vertical polarization. It is a 50 Ohm outdoor directional antenna for stable, high-speed wireless links and coverage extension, using 2x SMA connectors, low VSWR (≤1.5) and a controlled 20° x 20° beamwidth.

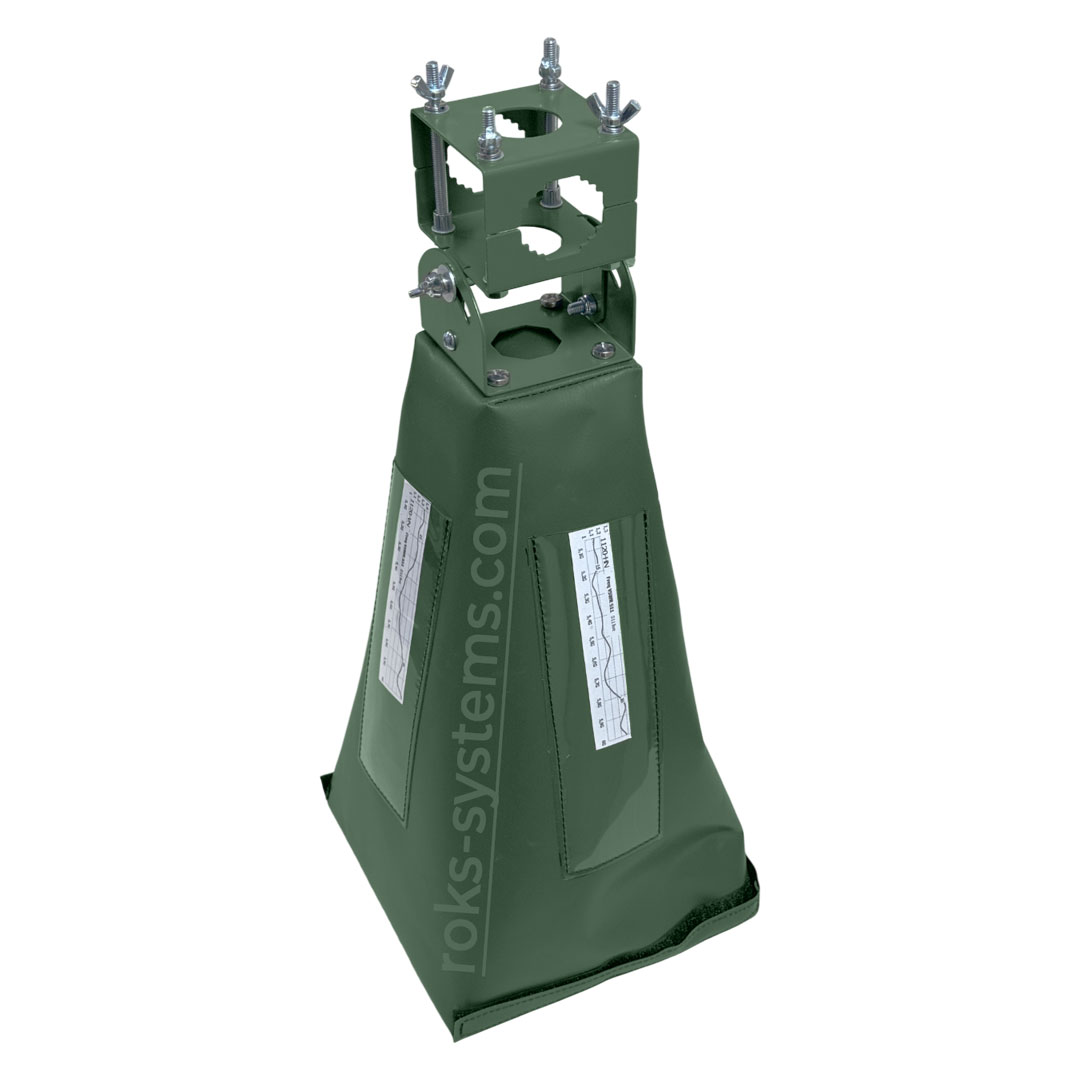

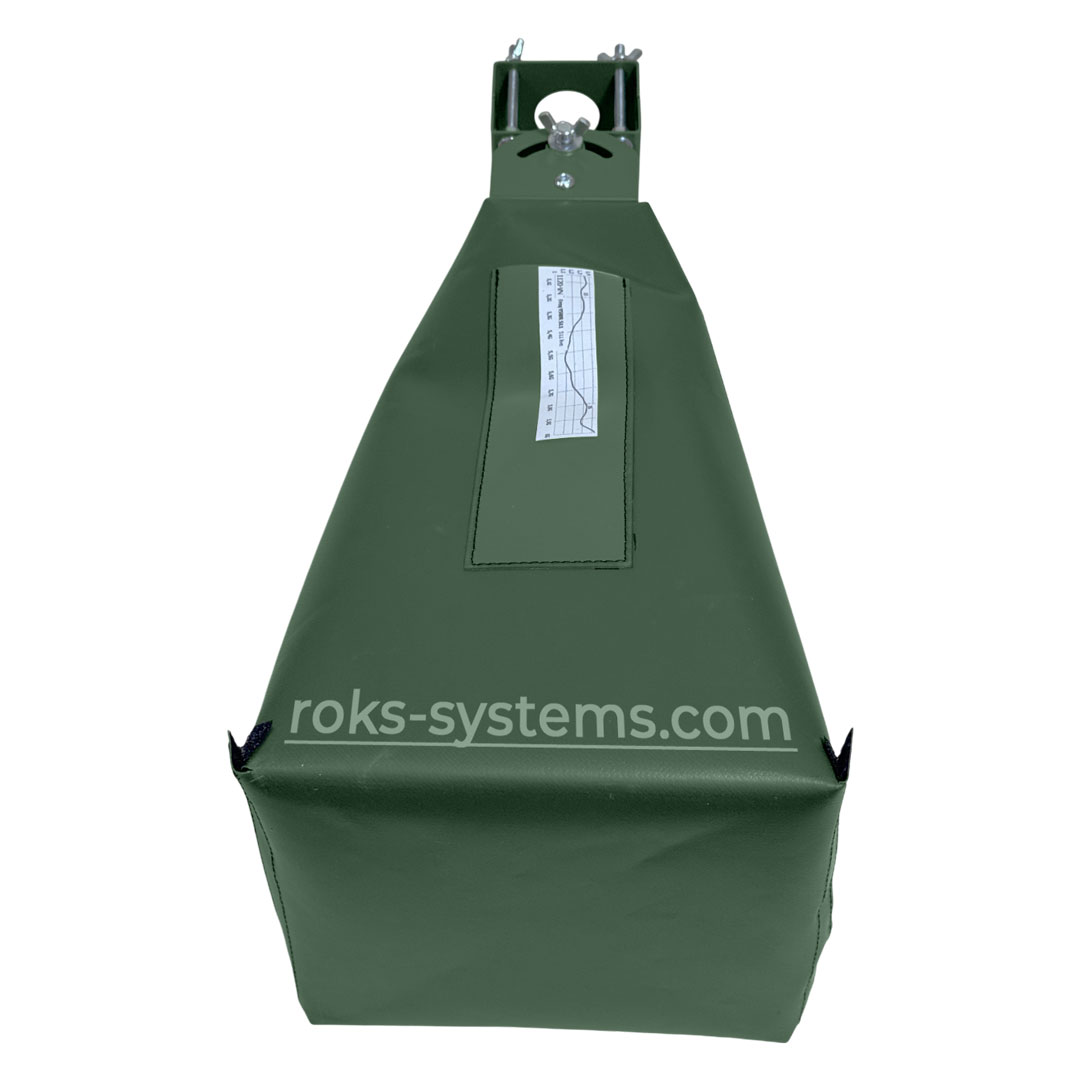

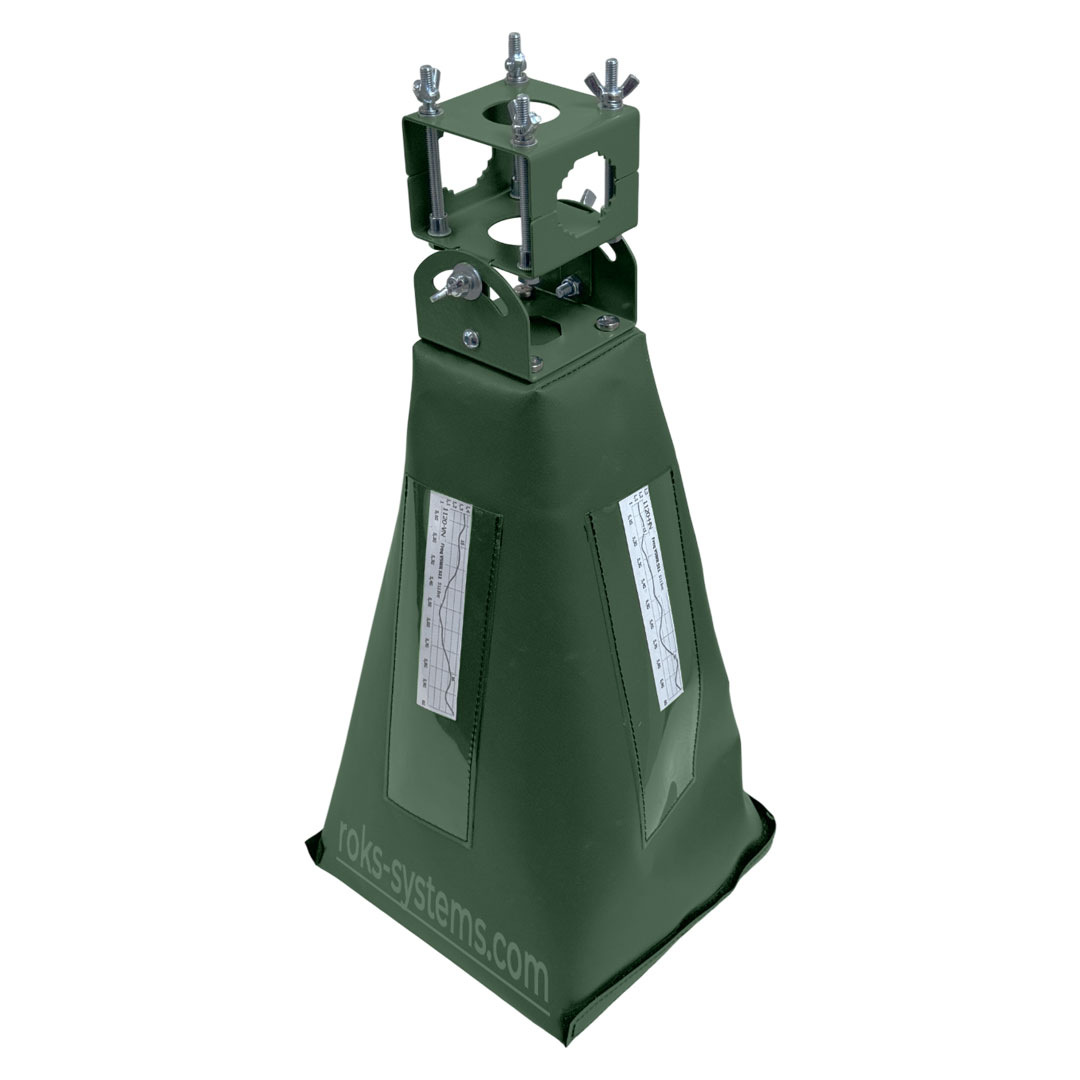

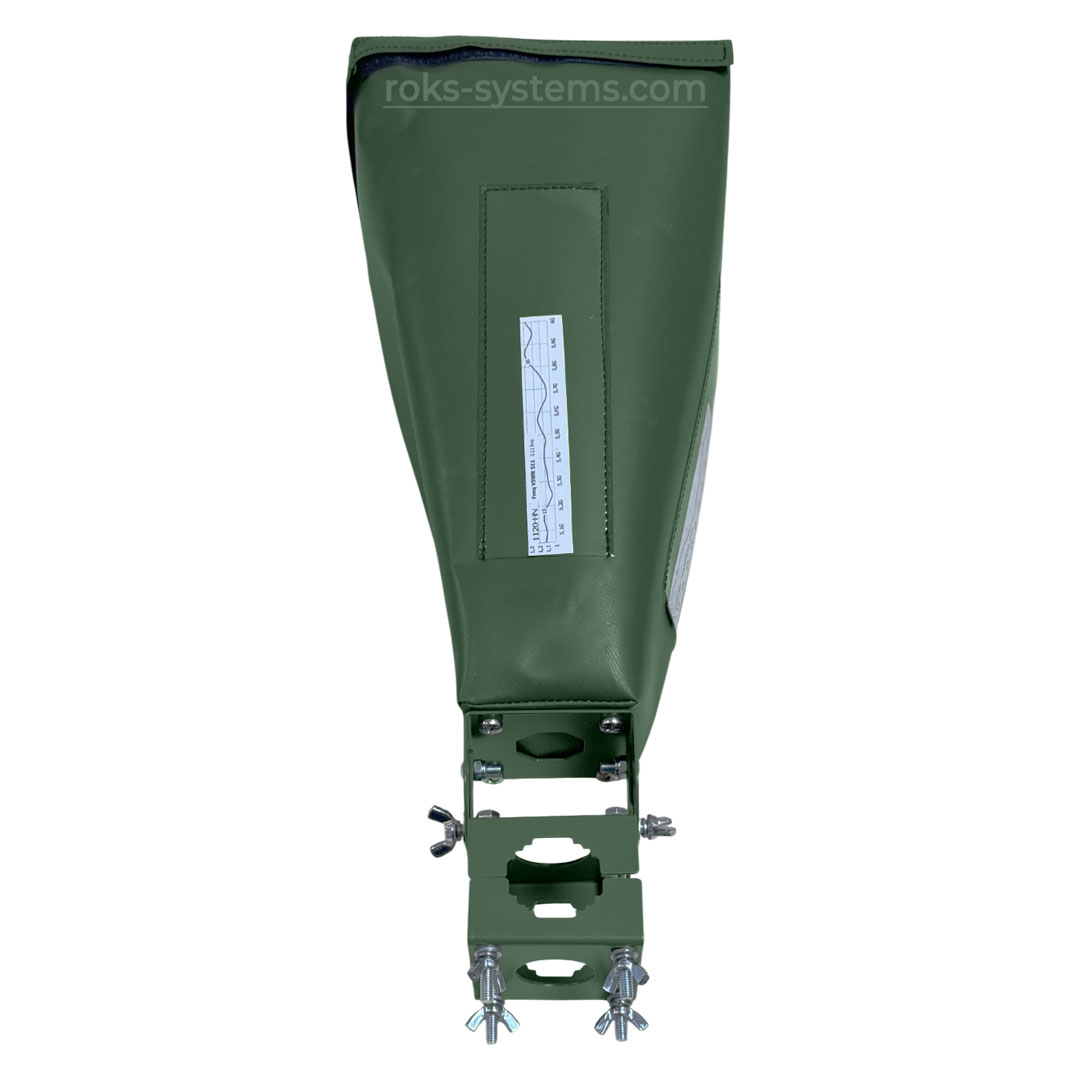

    With 150 W continuous power and 200 W peak handling, it supports industrial and field RF systems, monitoring/telemetry, tactical communications and EW/military applications. Supplied with a protective cover and a tilt-adjustable pole bracket for 30-45 mm masts; size 224×224×405 mm, weight 1.2 kg.

    Specification Value
    Frequency range 5050-6000 MHz
    Impedance 50 Ohm
    Gain 20 dB
    Connectors Connector 2× SMA
    Weight 1.2 kg
    Dimensions 224×224×405 mm

    Technical Specifications of Horn WiMAX Repeater Antenna with Dual Polarization (Horizontal + Vertical)

    This 5.05-6.0 GHz high-gain wideband horn antenna covers 5050-6000 MHz and delivers 20 dBi gain in a compact high gain horn (gain-to-size optimized) form factor. It is a 50 Ohm outdoor directional antenna with low VSWR (≤ 1.5) for good impedance matching and reliable RF performance. The controlled 20° beamwidth horn antenna provides a 20° × 20° radiation pattern for focused links.

    The antenna is dual-port with 2×SMA connectors (dual SMA) and supports dual linear polarization horn antenna operation (H/V simultaneous): horizontal and vertical polarization at the same time, suitable for 2×2 MIMO horn antenna setups. Power handling is 150 W continuous power (CW) with up to 200 W peak power handling.

    Key Features of Horn WiMAX Repeater Antenna 5.05-6.0 GHz

    • 5050-6000 MHz wideband horn antenna (5-6 GHz broadband horn) for stable repeater and backhaul links
    • 20 dBi gain with controlled narrow beam (20° × 20°) directional pattern
    • Dual polarization / dual linear polarization: simultaneous horizontal + vertical (H/V) polarization
    • Dual-port horn antenna with 2× SMA connectors and 50 Ohm impedance
    • Low VSWR (≤ 1.5) / good impedance matching for efficient power transfer
    • High power handling: 150 W continuous and 200 W peak
    • Weatherproof ruggedized horn antenna with protective cover for outdoor deployment

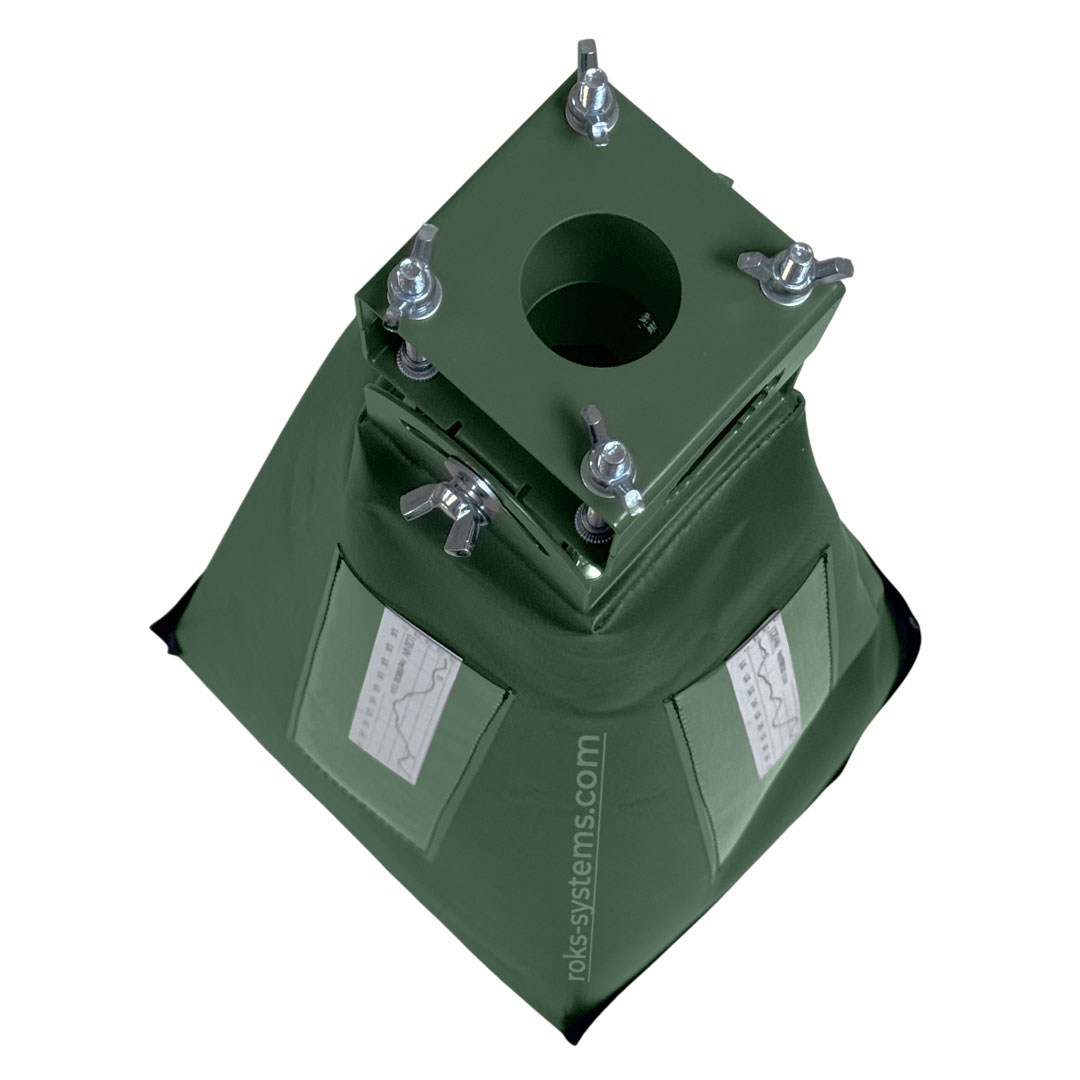

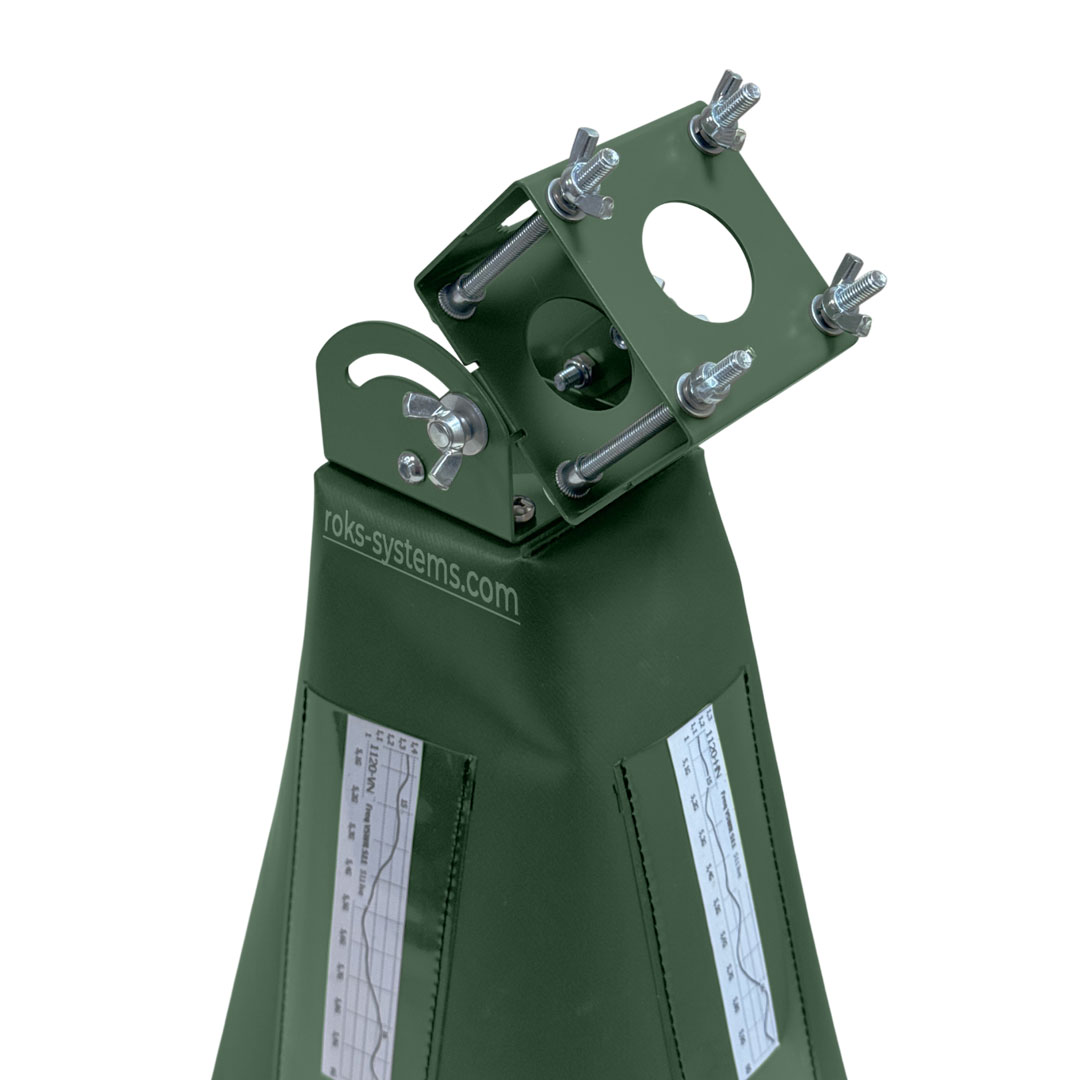

    • Pole mount bracket with tilt/elevation adjustment, mast mounting for 30-45 mm diameter pipes
    • In-house assembly of components and testing after manufacturing (per product process info)

    Applications of the Horn WiMAX Antenna 5.05-6.0 GHz

    Designed for WiMAX repeater antenna deployments and for building reliable, powerful wireless radio links, including:

    • Wireless backhaul antenna use: point-to-point and point-to-multipoint links
    • Coverage extension for WiMAX, LTE/5G signals, and stable Wi-Fi networks
    • Industrial and specialized RF systems, field and industrial wireless networks
    • Monitoring / telemetry and RF links for remote data transmission
    • Tactical and military-area use cases, including EW-related systems (as specified)

    Compatibility

    • Works with 50 Ohm RF systems operating in the 5050-6000 MHz (5.05-6.0 GHz) range
    • 2× SMA interface for dual-port cabling to repeater or RF equipment
    • Supports configurations that use H/V simultaneous dual polarization and 2×2 MIMO where applicable

    How It Works ❓

    As a directional horn antenna, it concentrates energy into a controlled 20° × 20° beam, improving link stability where signal is weak or coverage is limited. The 20 dBi gain helps strengthen received and transmitted signals within the 5.05-6.0 GHz band. With dual linear polarization (horizontal and vertical simultaneously) via two ports, the antenna can support dual-polarized operation for repeater/backhaul architectures while maintaining good impedance matching (VSWR ≤ 1.5).

    Why Choose the Horn WiMAX Repeater Antenna 5.05-6.0 GHz

    Choose this 5050-6000 MHz dual-polarized horn antenna 20 dBi when you need:

    • A wideband, high-gain, outdoor directional solution for 5-6 GHz links
    • Dual H/V polarization in one antenna (dual-port) with 2× SMA
    • High power RF horn antenna capability (150 W CW / 200 W peak)
    • Field-ready installation: protective cover plus adjustable mast bracket (30-45 mm)

    Need a stable 5-6 GHz repeater/backhaul link with dual polarization and controlled beamwidth❓

    Order the Horn WiMAX Repeater Antenna 5.05-6.0 GHz, 20 dBi and deploy it on your mast with the included cover and adjustable bracket.

    Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that the view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.

    Note! All details the customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each of our customers has a 1.5 year warranty and 7 year aftersales support for the whole range of our products.
