Product Description

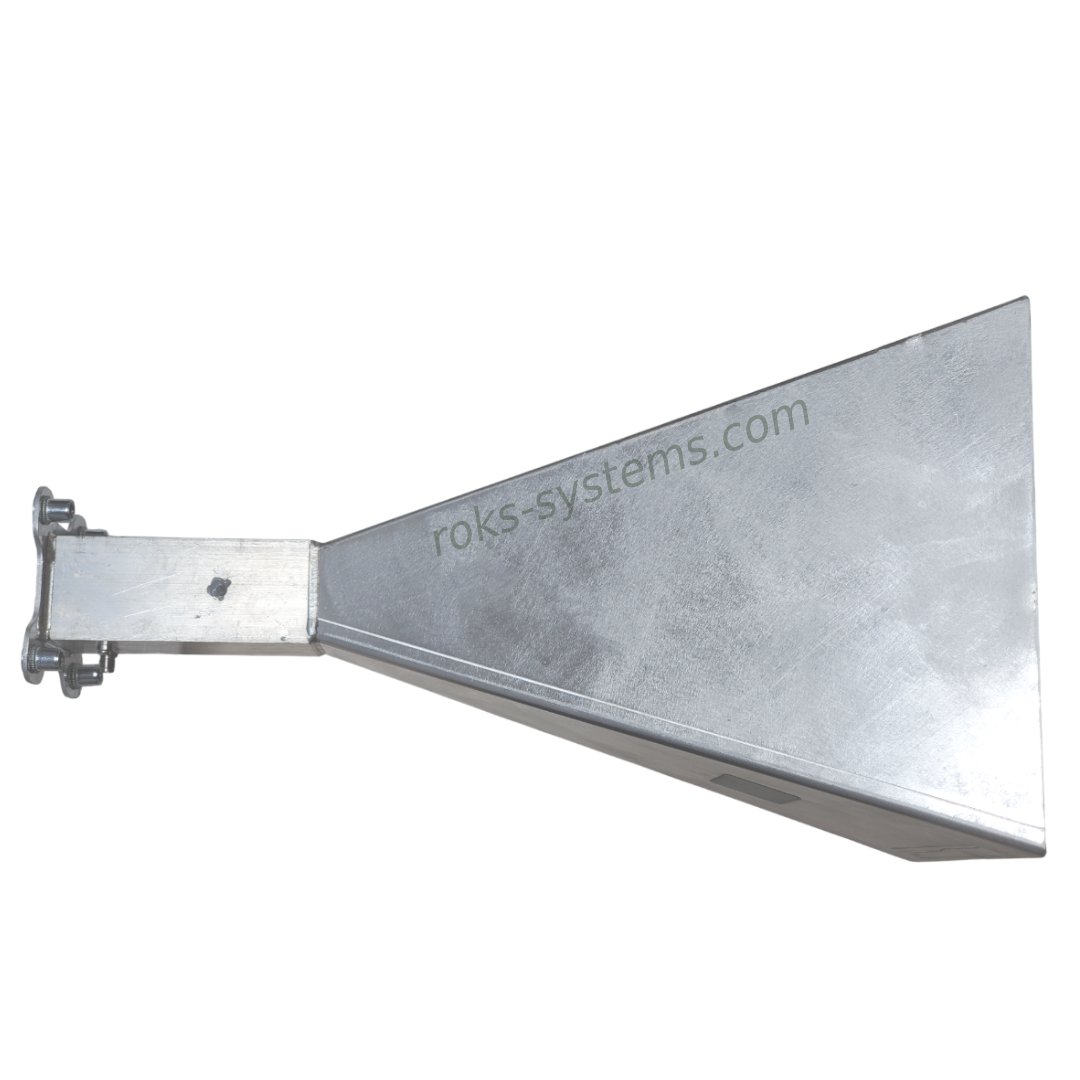

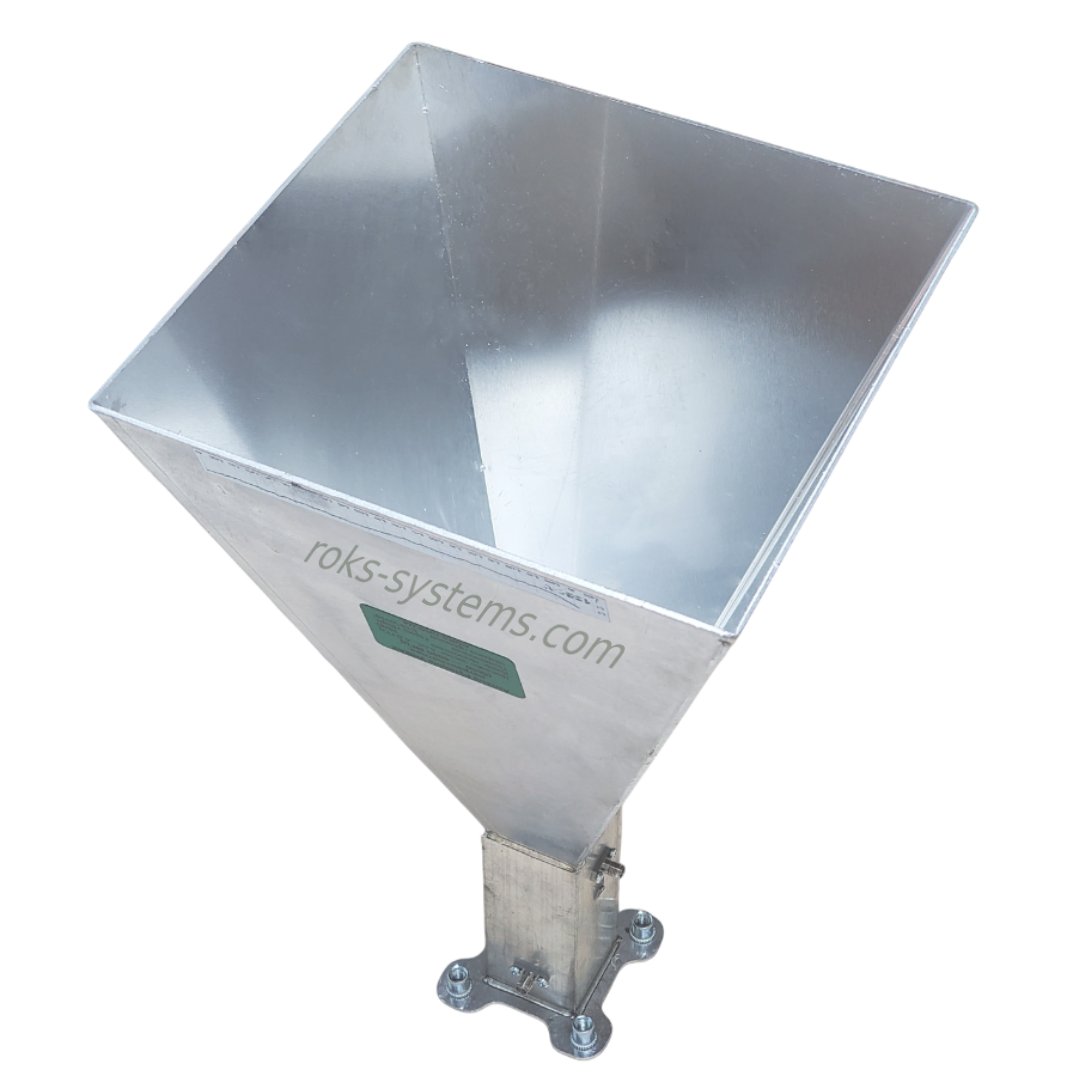

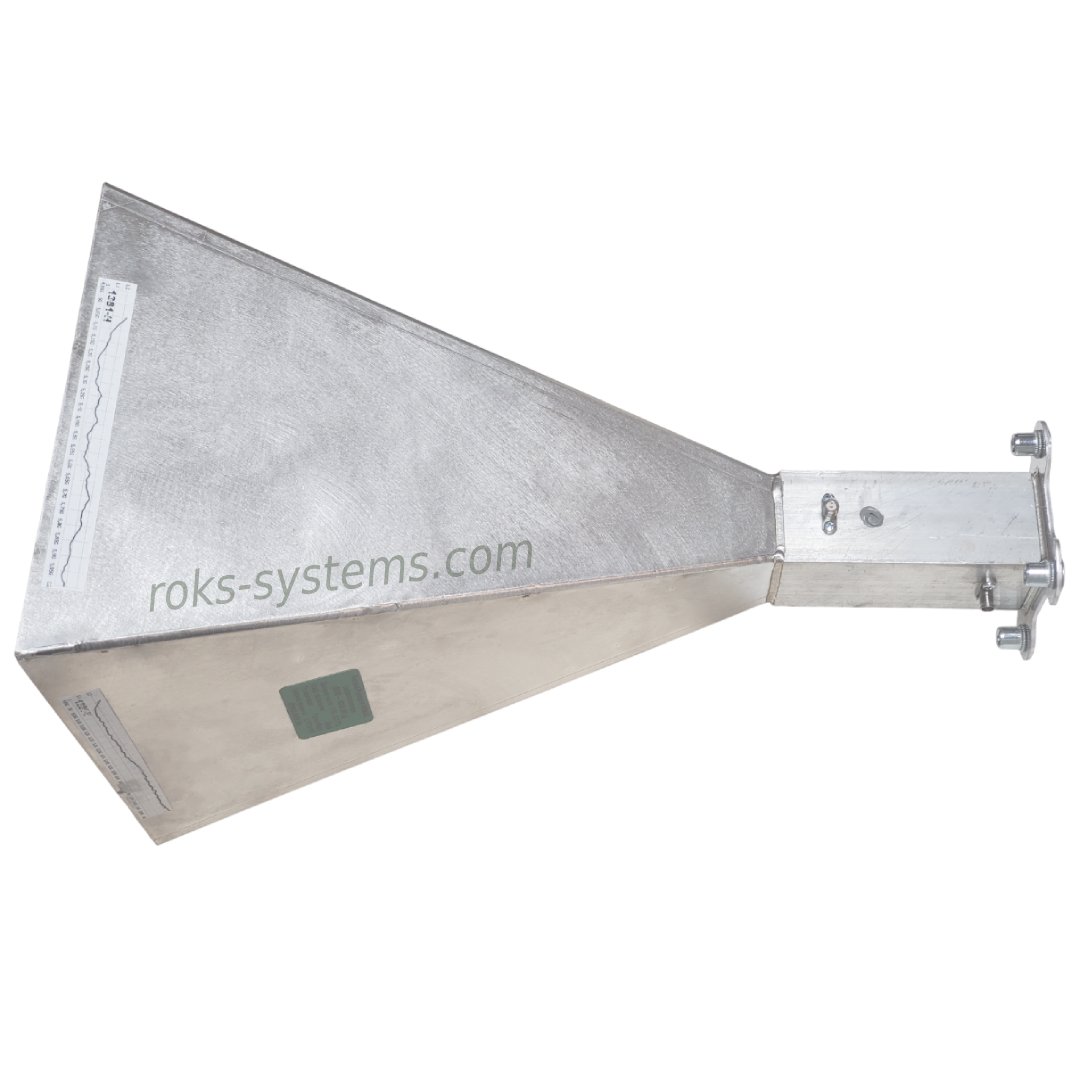

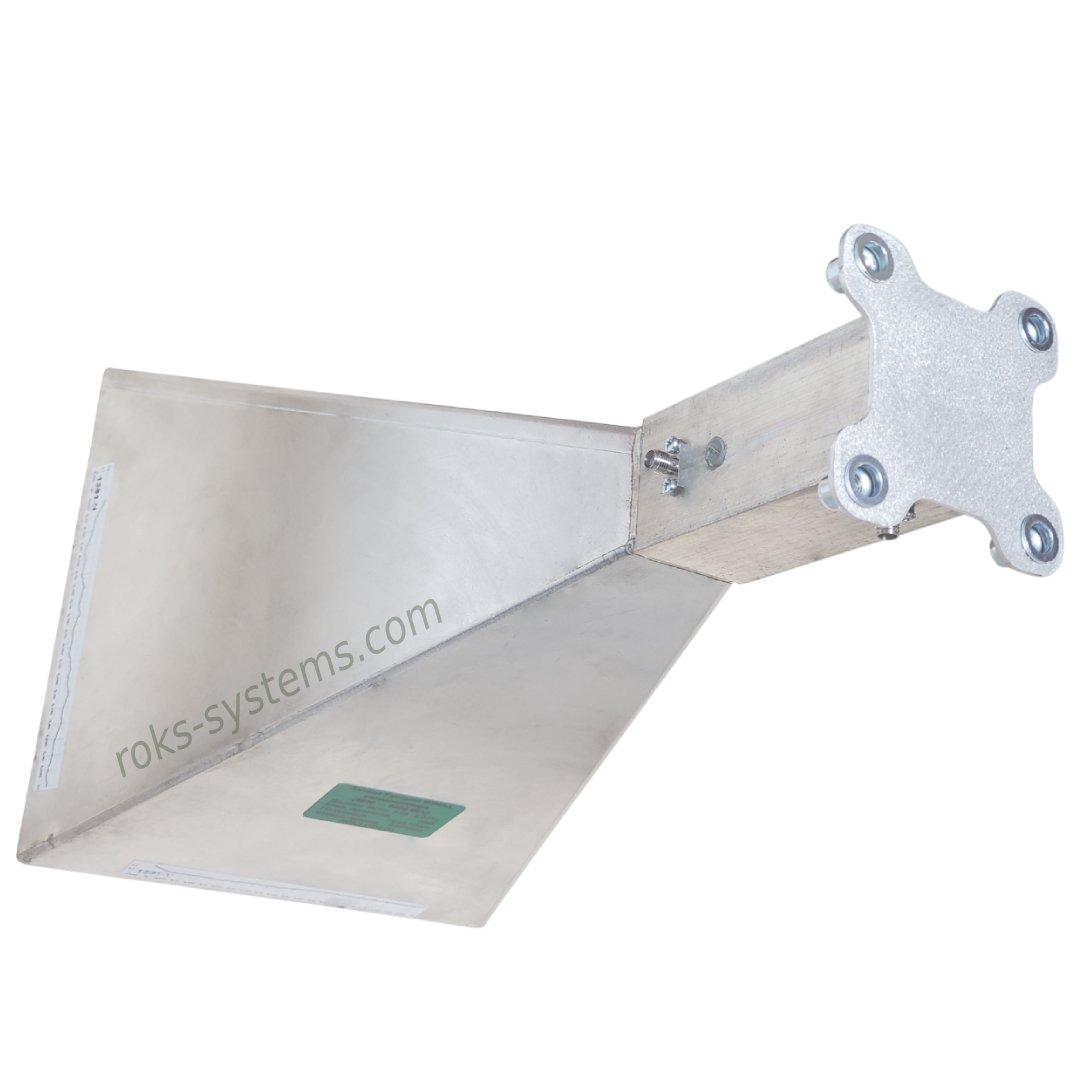

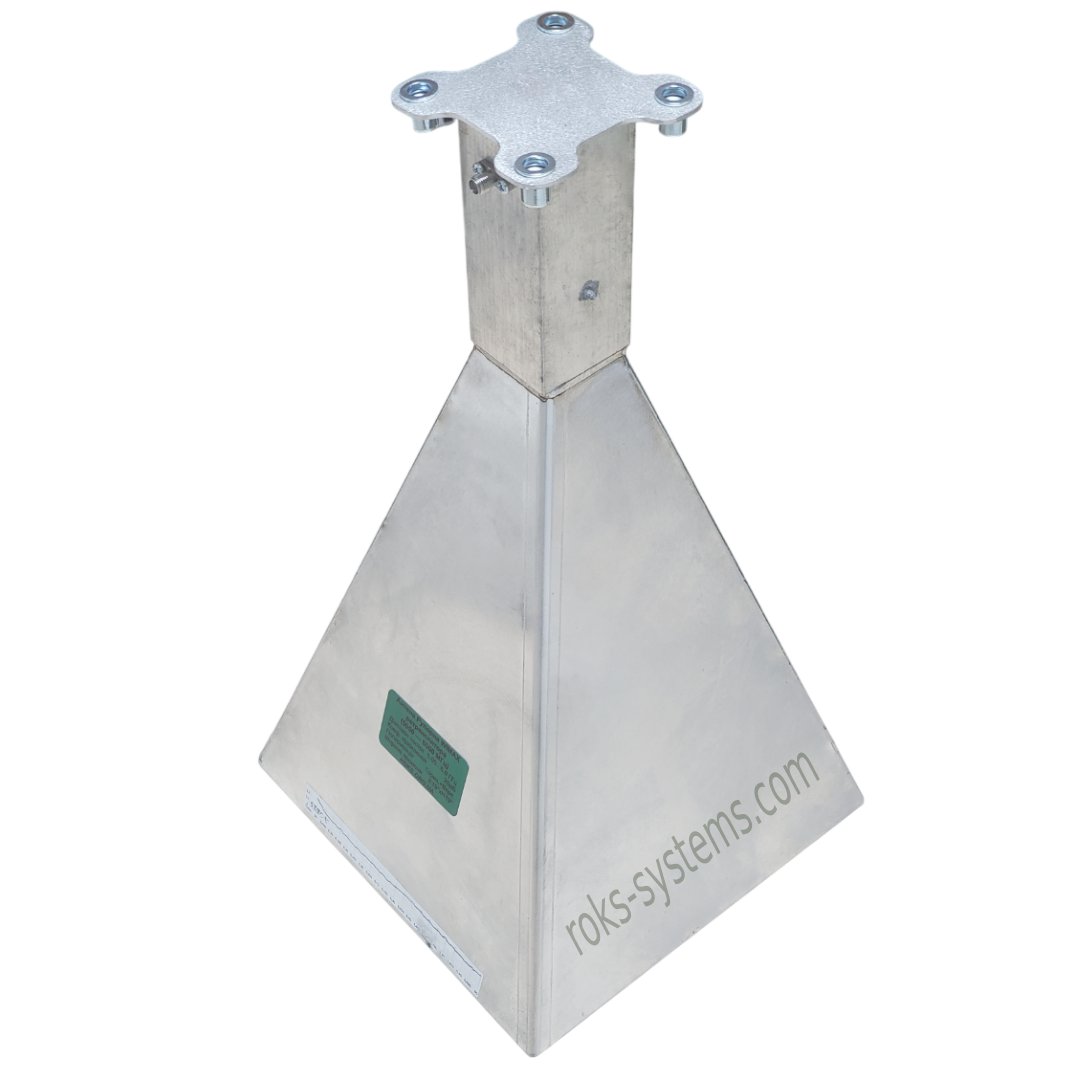

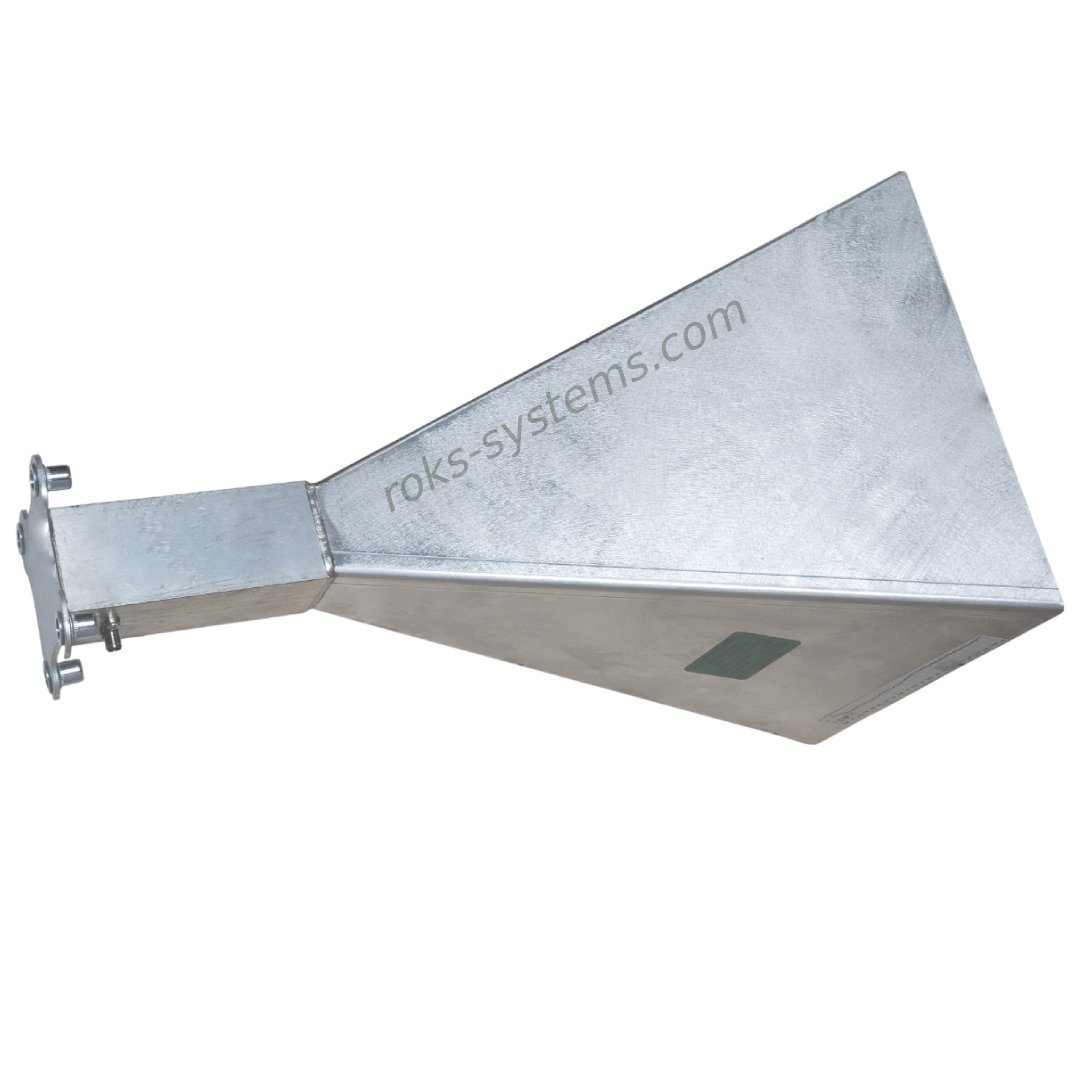

Horn WiMAX Repeater Antenna 5.05-6.0 GHz is a 5050-6000 MHz dual-polarized horn antenna engineered for directional 5-6 GHz links. It delivers 20 dBi gain and supports dual linear polarization (H/V simultaneous) for horizontal and vertical channels at the same time. The dual-port interface uses 2× SMA connectors with 50 Ohm impedance, while VSWR ≤ 1.5 helps maintain reliable matching across the operating band. A controlled 20° × 20° beamwidth keeps the radiation pattern focused for repeater and backhaul use.
Power handling is 150 W continuous (CW) with up to 200 W peak. Dimensions are 224×224×405 mm and weight is 1.2 kg.
| Specification |
Value |
| Frequency range |
5050-6000 MHz |
| Impedance |
50 Ohm |
| Gain |
20 dB |
| Connectors |
Connector 2×SMA |
| Weight |
1.2 kg |
| Dimensions |
224×224×405 mm |
Technical Specifications of Horn WiMAX Repeater Antenna with Dual Polarization (Horizontal + Vertical)
- This wideband horn antenna operates from 5050 to 6000 MHz (5.05–6.0 GHz) and provides 20 dBi gain
- It is a 50 Ohm outdoor directional antenna with VSWR ≤ 1.5 for good impedance matching.
- The radiation pattern is controlled with a 20° × 20° beamwidth for focused RF links.
- The antenna is dual-port with 2× SMA connectors (dual SMA).
- Dual linear polarization (H/V simultaneous) supports horizontal and vertical polarization at the same time and is suitable for 2×2 MIMO horn antenna setups.
- Power handling is 150 W continuous (CW) with up to 200 W peak power handling.
- Mechanical size is 224×224×405 mm and weight is 1.2 kg.
Key Features of Horn WiMAX Repeater Antenna 5.05-6.0 GHz
- 5050-6000 MHz wideband horn antenna (5-6 GHz broadband horn) for repeater and backhaul links
- 20 dBi gain with controlled 20° × 20° directional beamwidth
- Dual polarization / dual linear polarization: H/V simultaneous operation
- Dual-port design with 2× SMA connectors and 50 Ohm impedance
- VSWR ≤ 1.5 for efficient matching and stable RF transfer
- High power handling: 150 W continuous (CW) and 200 W peak
- Compact mechanical profile: 224×224×405 mm, 1.2 kg
Applications of the Horn WiMAX Antenna 5.05-6.0 GHz
Designed for WiMAX repeater antenna deployments and for building reliable wireless radio links, including:
- Wireless backhaul operation for point-to-point and point-to-multipoint links
- Coverage extension for WiMAX, LTE/5G signals, and stable Wi-Fi networks
- Industrial and specialized RF systems, field and industrial wireless networks
- Monitoring / telemetry RF links for remote data transmission
- Tactical and military-area use cases, including EW-related systems (as specified)
Compatibility
- Works with 50 Ohm RF systems operating in the 5050-6000 MHz (5.05-6.0 GHz) range
- 2× SMA interface for dual-port cabling to repeater or RF equipment
- Supports H/V simultaneous dual polarization and 2×2 MIMO configurations where applicable
How It Works❓
- The horn structure shapes energy into a directional 20° × 20° beam, improving link stability and limiting radiation outside the target area.
- 20 dBi gain increases effective signal strength across 5.05–6.0 GHz.
- Dual H/V simultaneous ports support two linear polarization channels while VSWR ≤ 1.5 keeps matching efficient in 50 Ohm systems.
Why Choose the Horn WiMAX Repeater Antenna 5.05-6.0 GHz❓
👉Choose this 5050-6000 MHz dual-polarized horn antenna 20 dBi when you need:
- A wideband 5-6 GHz directional antenna with 20 dBi gain
- Dual H/V simultaneous polarization via 2× SMA ports
- High power handling (150 W CW / 200 W peak)
- A compact 224×224×405 mm, 1.2 kg antenna for repeater/backhaul links
Need a stable 5-6 GHz repeater/backhaul link with dual polarization and controlled beamwidth❓
🤝Order the Horn WiMAX Repeater Antenna 5.05-6.0 GHz, 20 dBi.
