Horn WiMAX Repeater Antenna 5.05-6.0 GHz, 20 dBi, Horizontal + Vertical Polarization, 2×N-Female, 50 Ohm, Protective Cover (No Mount)

Short description

Outdoor 5.05-6.0 GHz dual-polarized horn antenna for WiMAX repeaters: 20 dBi, 20° beam, 2×N-Female, 50 Ohm, VSWR≤1.5, 150W continuous/200W peak, supplied with protective cover.

4-6 GHzLinear Horizontal + Vertical Polarization
- +

Request for customized equipment

    • Description
    • Downloads

    Product Description

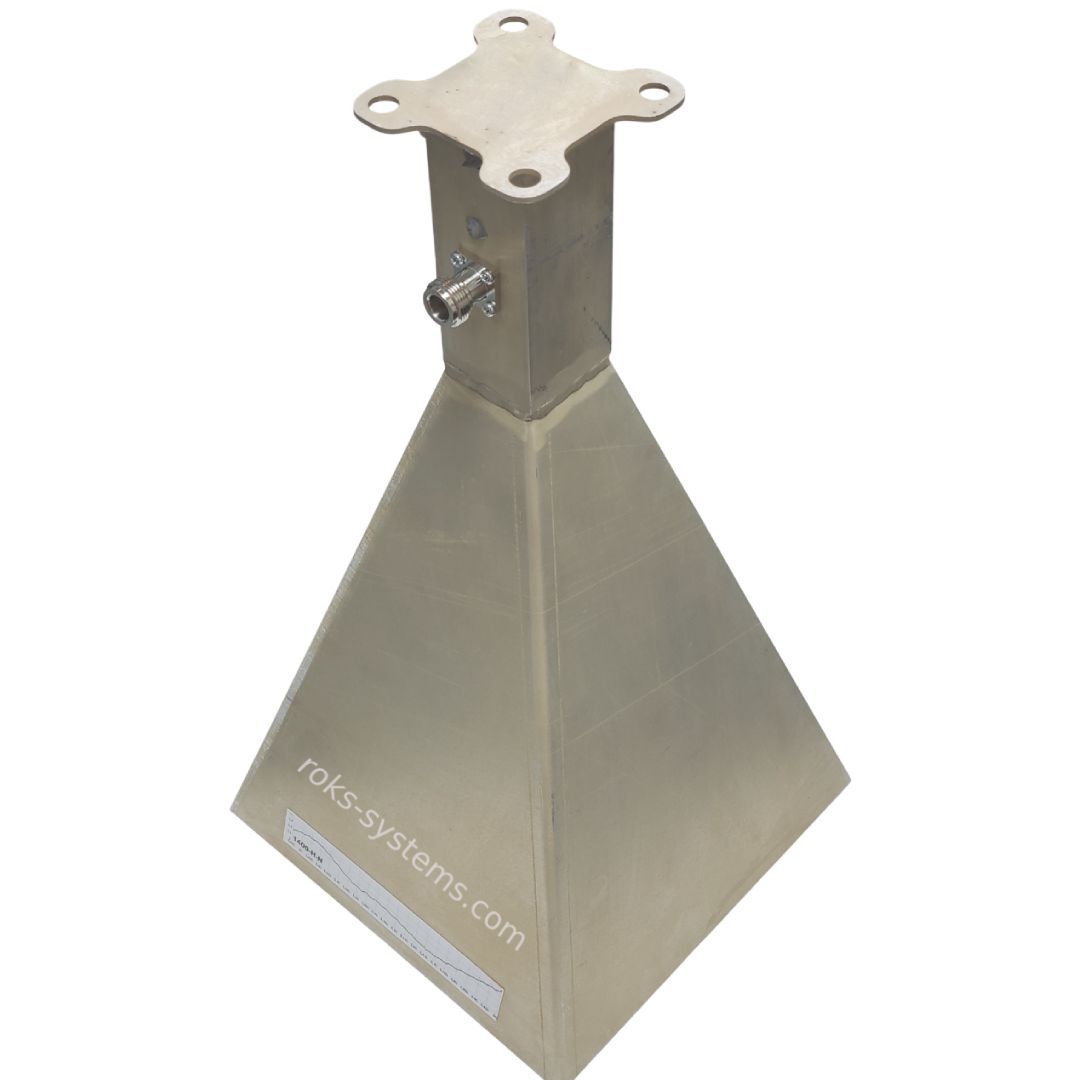

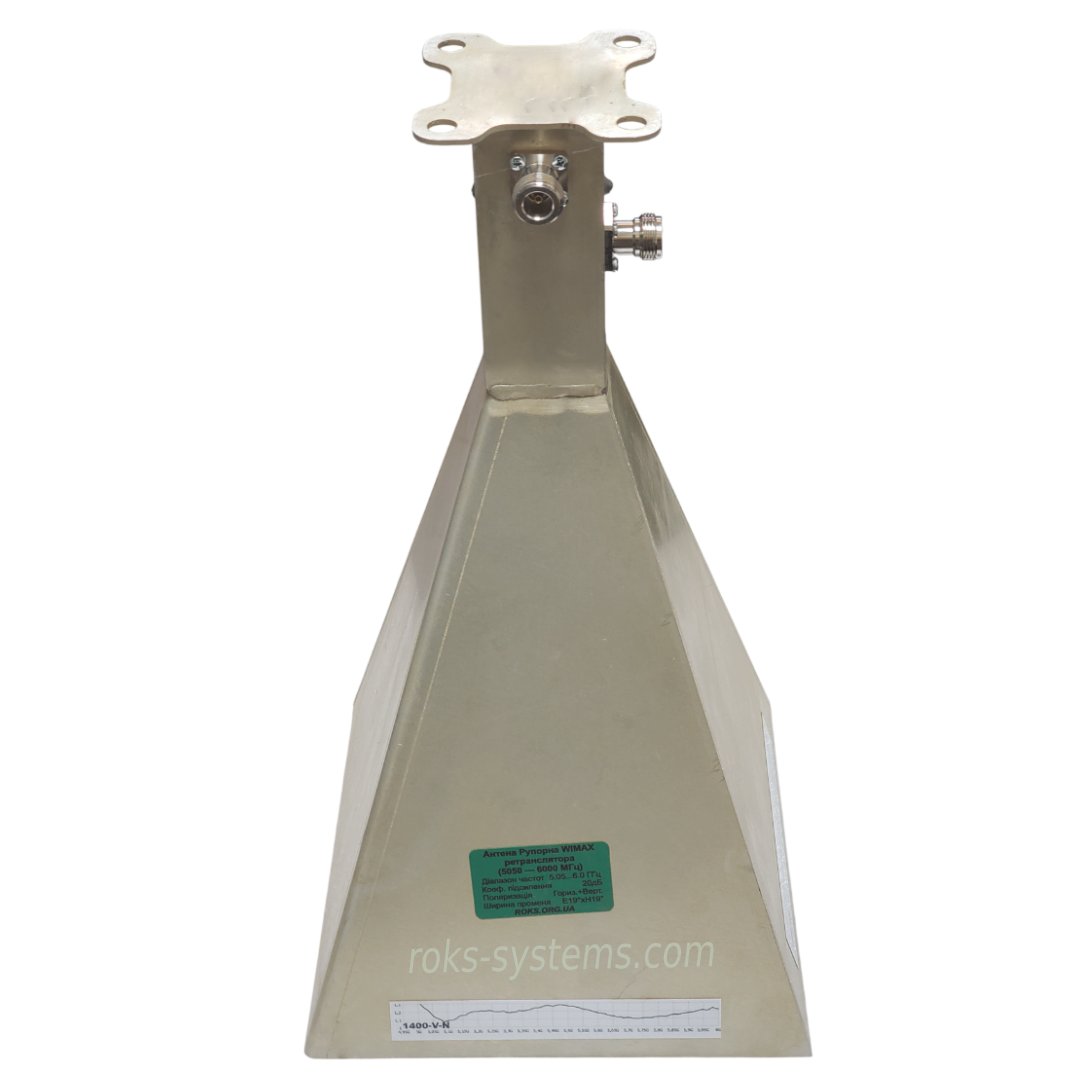

    Horn WiMAX Repeater Antenna 5.05-6.0 GHz is a 5050-6000 MHz outdoor directional horn antenna delivering 20 dBi gain with dual linear polarization (H/V simultaneous). Designed for stable repeater/backhaul RF links, it uses 2× N-Female connectors with 50 Ohm impedance and maintains low VSWR (≤1.5) for efficient matching. The antenna forms a controlled 20° × 20° beamwidth to keep energy focused where coverage is needed.

    Power handling is rated at 150 W continuous (CW) with up to 200 W peak power. The antenna is supplied with a protective cover for outdoor exposure. Mechanical size is 224×224×405 mm with a weight of 1.2 kg.

    Specification Value
    Frequency range 5050-6000 MHz
    Impedance 50 Ohm
    Gain 20 dB
    Connectors Connector 2× N-Female
    Weight 1.2 kg
    Dimensions 224×224×405 mm

    Technical Specifications of Horn WiMAX Repeater Antenna with Dual Polarization (Horizontal + Vertical)

    • This 5.05-6.0 GHz high-gain wideband horn antenna covers 5050-6000 MHz and provides 20 dBi gain in a compact horn form factor (gain-to-size optimized).
    • It is a 50 Ohm outdoor directional antenna with low VSWR (≤ 1.5) for good impedance matching and reliable RF performance.
    • The controlled beamwidth produces a 20° × 20° radiation pattern for focused point-to-point and point-to-multipoint links.
    • The antenna is dual-port with 2× N-Type female connectors (dual N-female).
    • It supports dual linear polarization operation (H/V simultaneous): horizontal and vertical polarization at the same time, suitable for 2×2 MIMO horn antenna setups.
    • Power handling is 150 W continuous power (CW) with up to 200 W peak power handling.

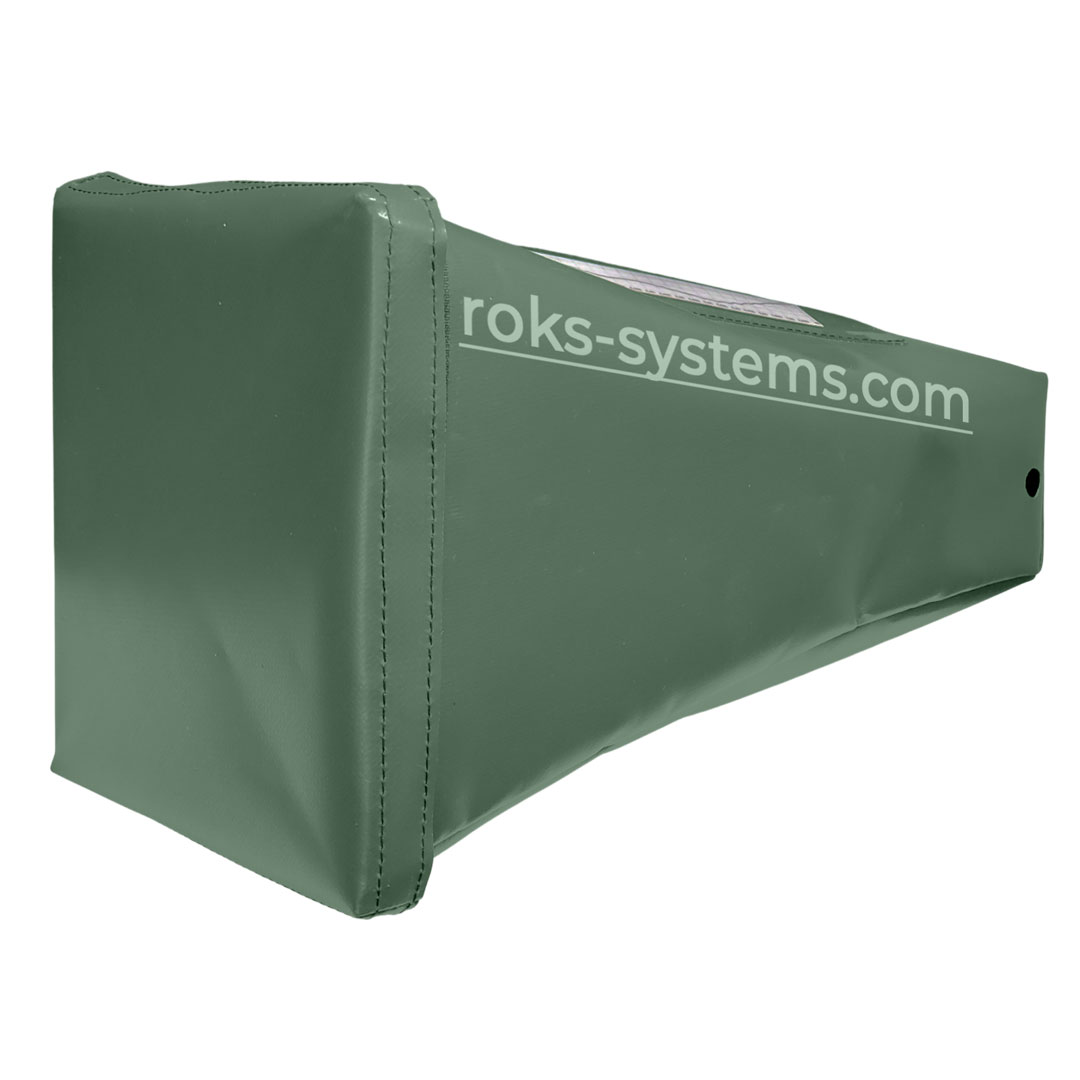

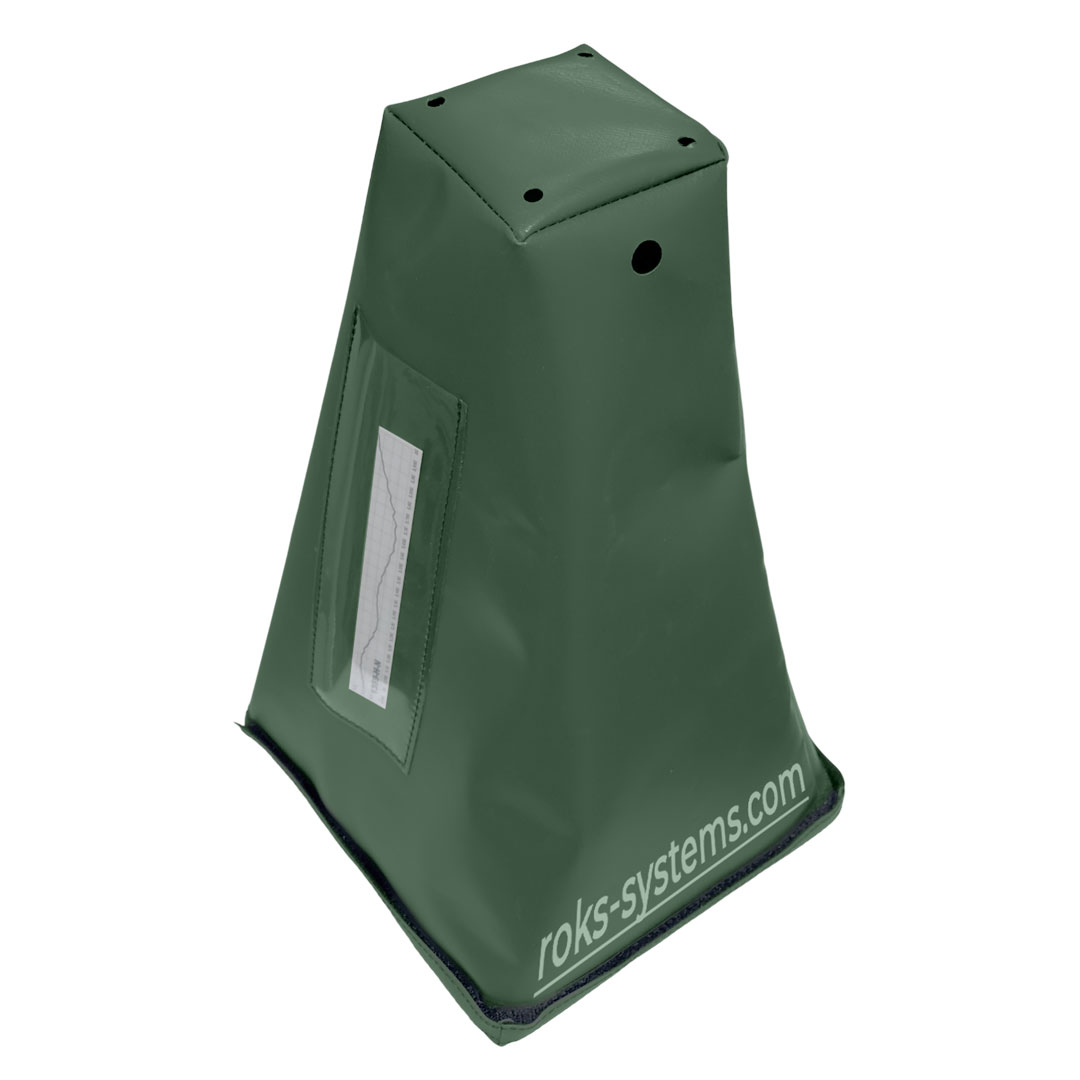

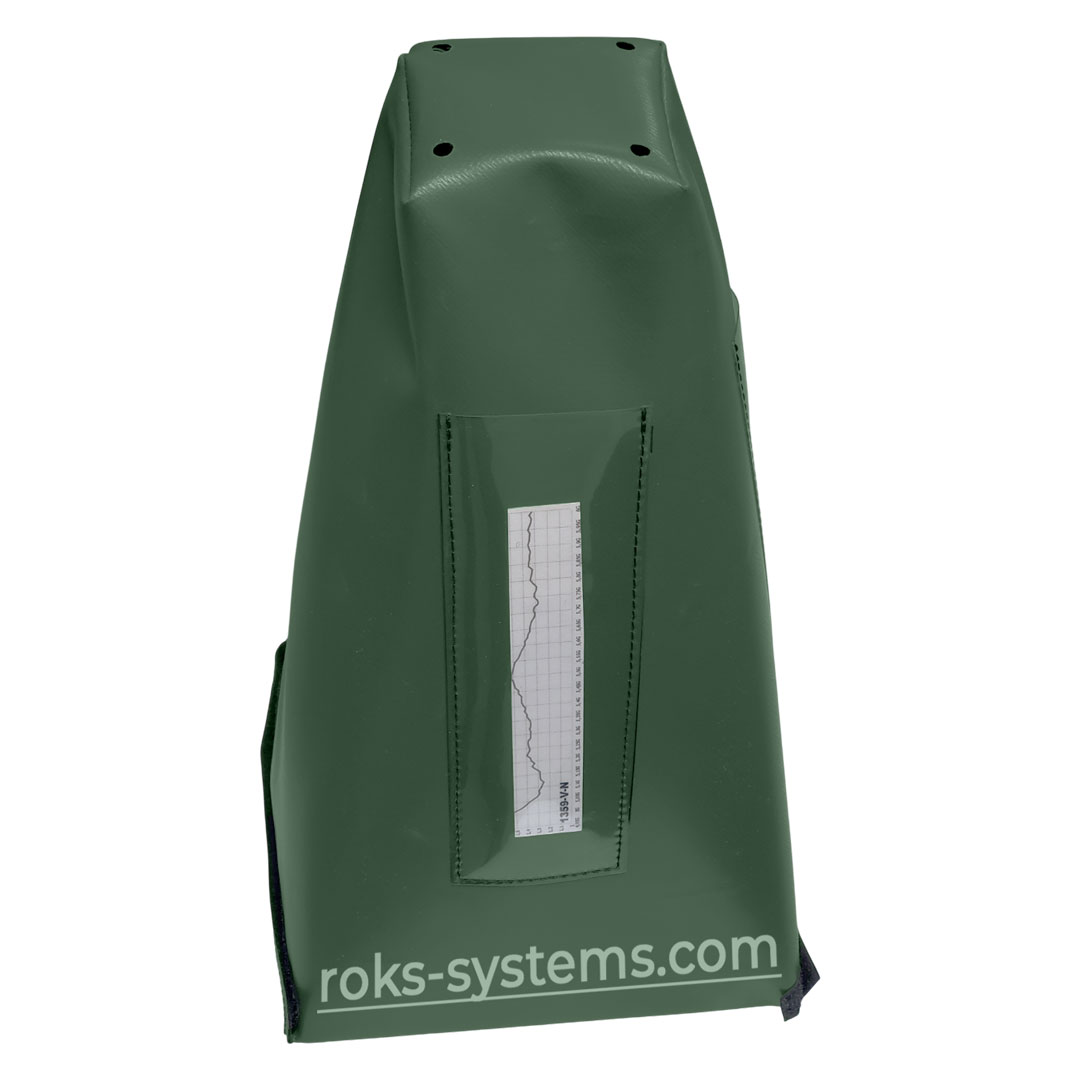

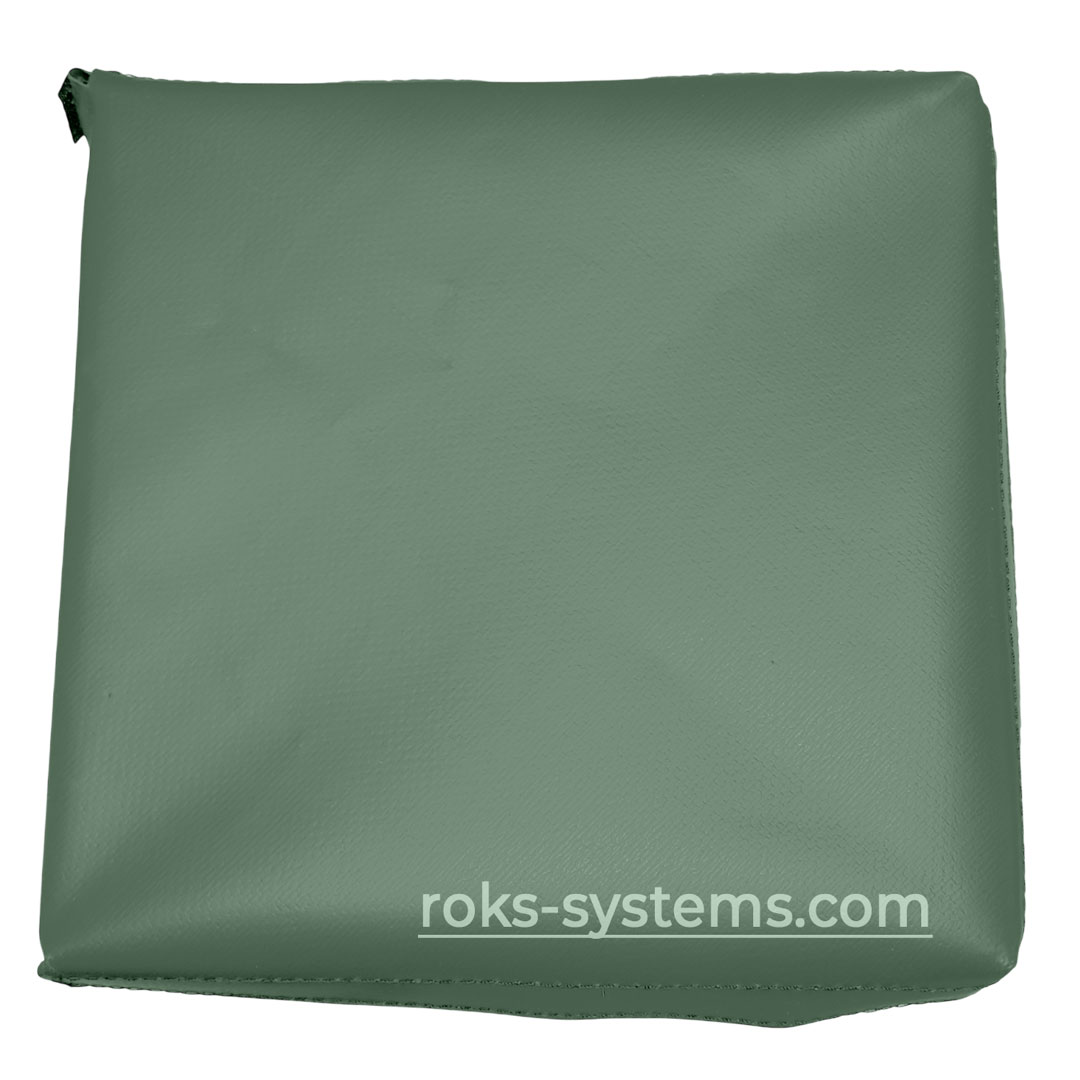

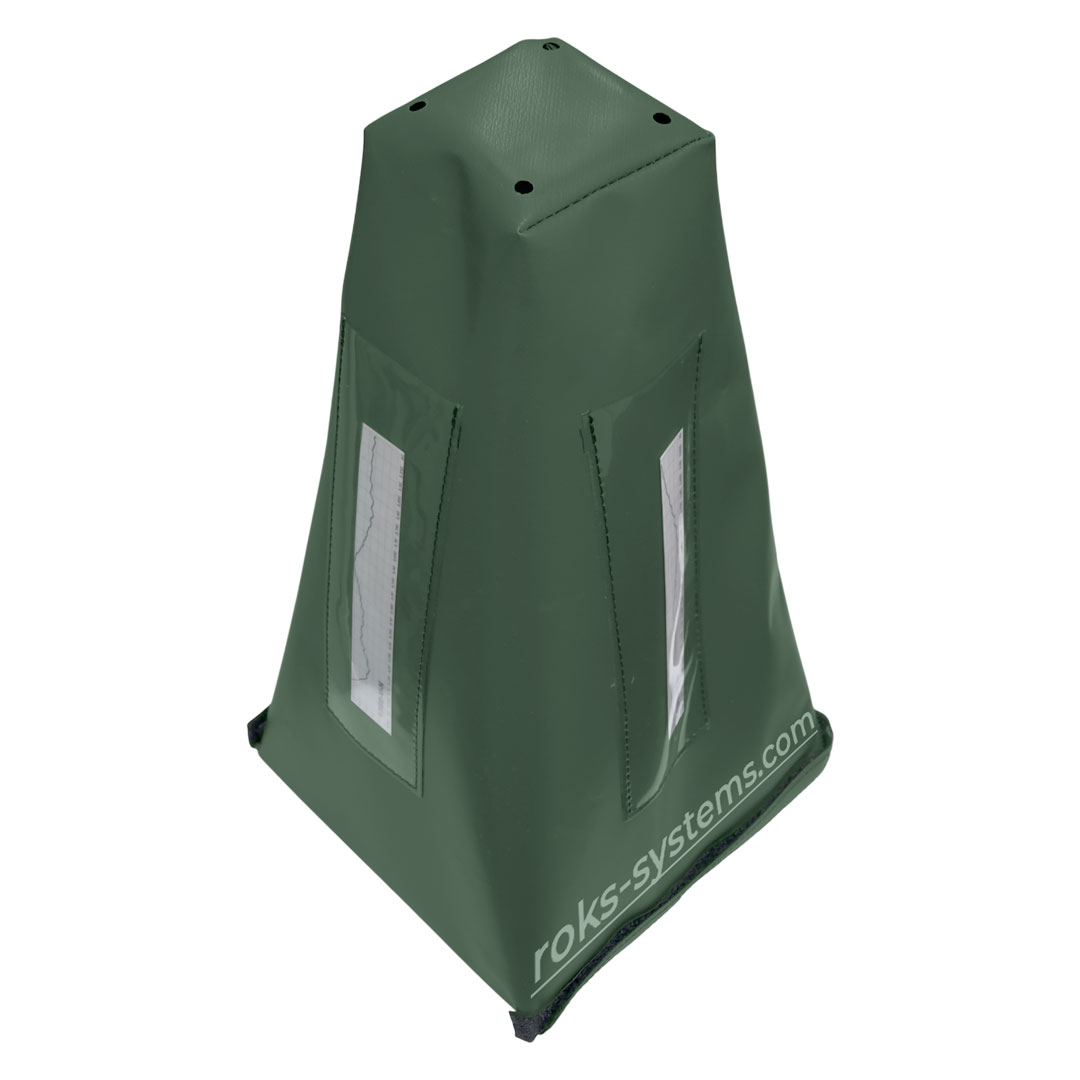

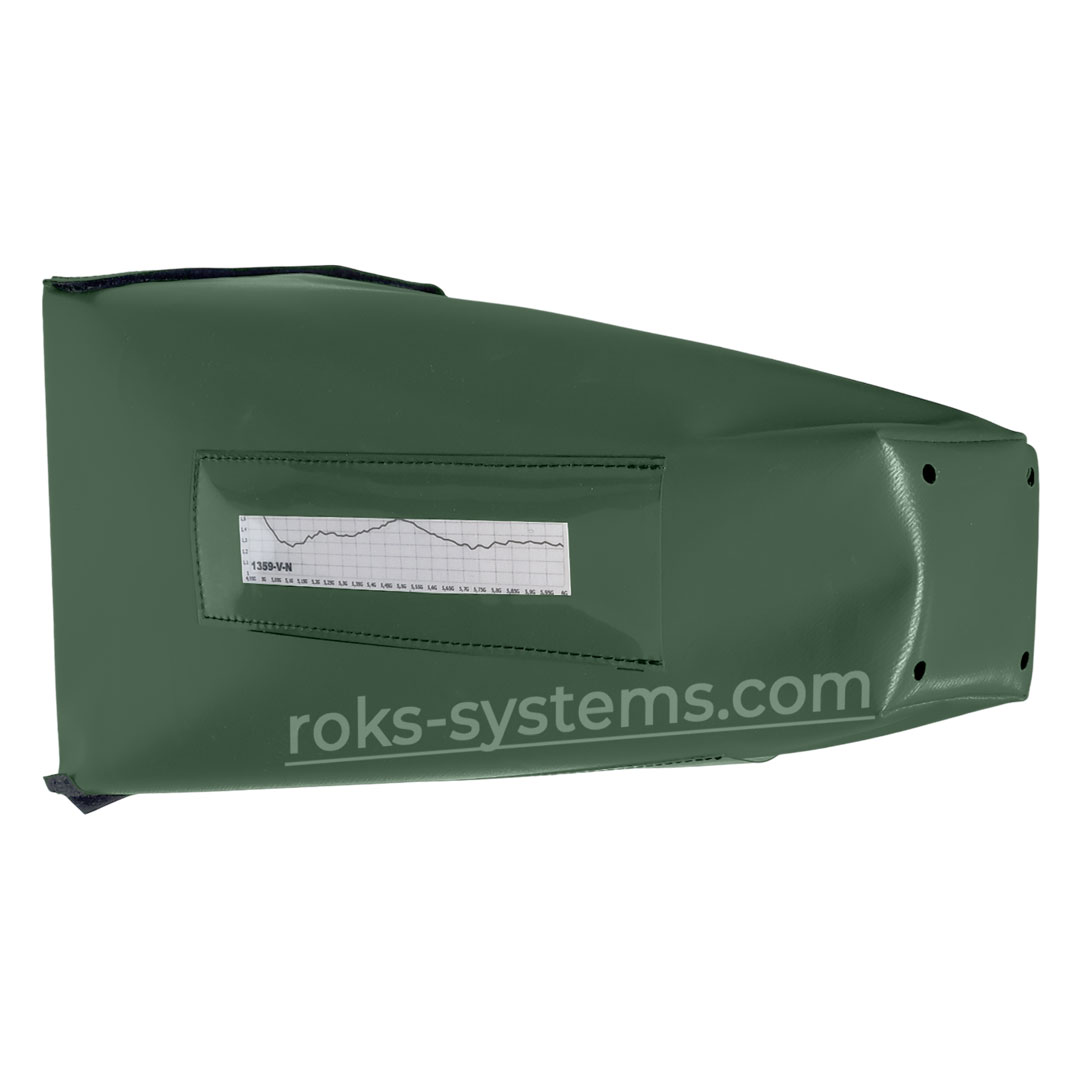

    • The antenna is supplied with a protective cover.

    Key Features of Horn WiMAX Repeater Antenna 5.05-6.0 GHz

    • 5050-6000 MHz wideband horn antenna (5-6 GHz broadband horn) for stable repeater and backhaul links
    • 20 dBi gain with controlled narrow beam (20° × 20°) directional pattern
    • Dual polarization / dual linear polarization: simultaneous horizontal + vertical (H/V) polarization
    • Dual-port horn antenna with 2× N-Female connectors and 50 Ohm impedance
    • Low VSWR (≤ 1.5) / good impedance matching for efficient power transfer
    • High power handling: 150 W continuous and 200 W peak
    • Protective cover included for outdoor deployment and environmental exposure

    Applications of the Horn WiMAX Antenna 5.05-6.0 GHz

    Designed for WiMAX repeater antenna deployments and for building reliable, powerful wireless radio links, including:

    • Wireless backhaul antenna use: point-to-point and point-to-multipoint links
    • Coverage extension for WiMAX, LTE/5G signals, and stable Wi-Fi networks
    • Industrial and specialized RF systems, field and industrial wireless networks
    • Monitoring / telemetry and RF links for remote data transmission
    • Tactical and military-area use cases, including EW-related systems (as specified)

    Compatibility

    • Works with 50 Ohm RF systems operating in the 5050-6000 MHz (5.05-6.0 GHz) range
    • 2× N-Type female interface for dual-port cabling to repeater or RF equipment
    • Supports configurations that use H/V simultaneous dual polarization and 2×2 MIMO where applicable

    How It Works❓

    • As a directional horn antenna, it concentrates energy into a controlled 20° × 20° beam, improving link stability where signal is weak or coverage is limited.
    • The 20 dBi gain helps strengthen received and transmitted signals within the 5.05-6.0 GHz band.
    • With dual linear polarization (horizontal and vertical simultaneously) via two ports, the antenna can support dual-polarized operation for repeater/backhaul architectures while maintaining good impedance matching (VSWR ≤ 1.5).

    Why Choose the Horn WiMAX Repeater Antenna 5.05-6.0 GHz, 20 dBi, Horizontal + Vertical Polarization, 2×N-Female, 50 Ohm❓

    👉Choose this 5050-6000 MHz dual-polarized horn antenna 20 dBi when you need:

    • A wideband, high-gain, outdoor directional solution for 5-6 GHz links
    • Dual H/V polarization in one antenna (dual-port) with 2× N-Female
    • High power RF horn antenna capability (150 W CW / 200 W peak)
    • Protective cover for outdoor deployment
    • Need a stable 5-6 GHz repeater/backhaul link with dual polarization and controlled beamwidth❓

    🤝Order the Horn WiMAX Repeater Antenna 5.05-6.0 GHz, 20 dBi.

    Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that the view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.

    Note! All details the customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each of our customers has a 1.5 year warranty and 7 year aftersales support for the whole range of our products.
