Horn WiMAX Repeater Antenna 5.05-6.0 GHz, 20 dBi, Horizontal + Vertical Polarization, 2×N-Female, 50 Ohm, Protective Cover + Mount

Short description

Outdoor 5050-6000 MHz dual-polarized horn antenna for WiMAX repeaters: 20 dBi, 20° beam, 2×N-Female, 50 Ohm, VSWR≤1.5, 150W CW/200W peak, with cover and adjustable pole bracket 30-45 mm.

4-6 GHzLinear Horizontal + Vertical Polarization
- +

Request for customized equipment

    • Description
    • Downloads

    Product Description

    Horn WiMAX Repeater Antenna 5.05-6.0 GHz is a 5050-6000 MHz high-gain horn antenna delivering 20 dBi with dual linear polarization (H/V simultaneous). Built as a 50 Ohm outdoor directional antenna, it uses 2× N-Female connectors and maintains low VSWR (≤1.5) for efficient matching and consistent RF performance. The controlled 20° × 20° beamwidth provides focused coverage for repeater and backhaul links.

    Rated for 150 W continuous power and up to 200 W peak, it is suitable for industrial and field RF systems, monitoring/telemetry links, and professional wireless deployments. The antenna is supplied with a protective cover and a tilt/elevation pole bracket for 30-45 mm masts. Dimensions: 224×224×405 mm; weight: 1.2 kg.

    Specification Value
    Frequency range 5050-6000 MHz
    Impedance 50 Ohm
    Gain 20 dB
    Connectors Connector 2× N-Female
    Weight 1.2 kg
    Dimensions 224×224×405 mm

    Technical Specifications of Horn WiMAX Repeater Antenna with Dual Polarization (Horizontal + Vertical)

    This 5.05-6.0 GHz wideband horn antenna covers 5050-6000 MHz and provides 20 dBi gain in a compact, gain-to-size optimized form factor. As a 50 Ohm outdoor directional antenna, it features VSWR ≤ 1.5 for good impedance matching and reliable link operation. The antenna forms a controlled 20° × 20° radiation pattern, enabling focused point-to-point and point-to-multipoint connections.

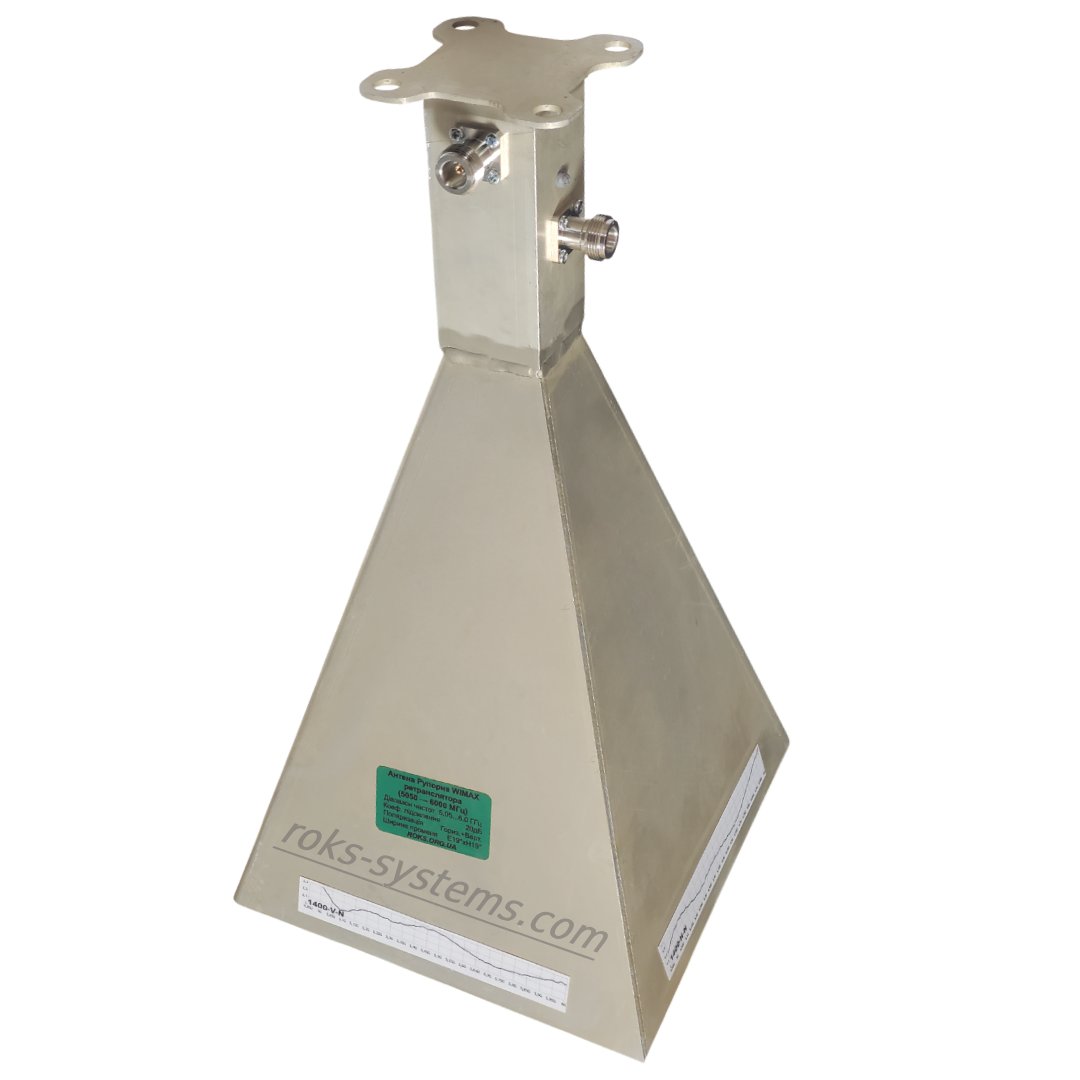

    The design is dual-port with 2× N-Type female connectors and supports dual linear polarization (H/V simultaneous), allowing horizontal and vertical polarization at the same time and supporting 2×2 MIMO horn antenna configurations where applicable. Power handling is 150 W continuous (CW) with up to 200 W peak power.

    Key Features of Horn WiMAX Repeater Antenna 5.05-6.0 GHz

    • Wideband 5050-6000 MHz (5.05-6.0 GHz) horn antenna designed for repeater and backhaul operation
    • 20 dBi high-gain performance with a focused 20° × 20° directional beam
    • Dual linear polarization (H/V simultaneous): horizontal and vertical channels supported at the same time
    • Dual-port configuration with 2× N-Female connectors and 50 Ohm impedance
    • VSWR ≤ 1.5 for good impedance matching and efficient RF transfer
    • High power capability: 150 W continuous (CW) and 200 W peak

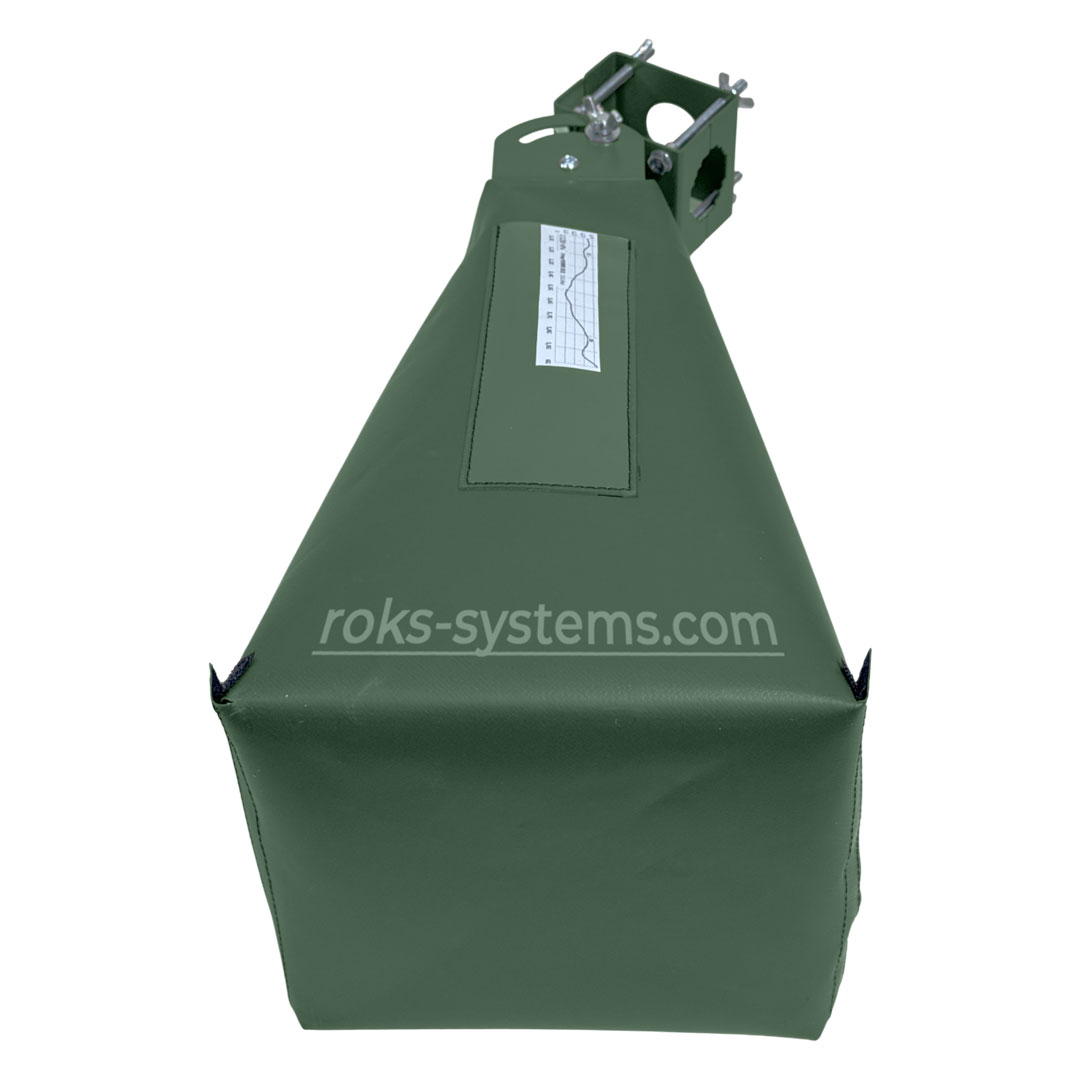

    • Protective cover included for outdoor deployment and environmental exposure

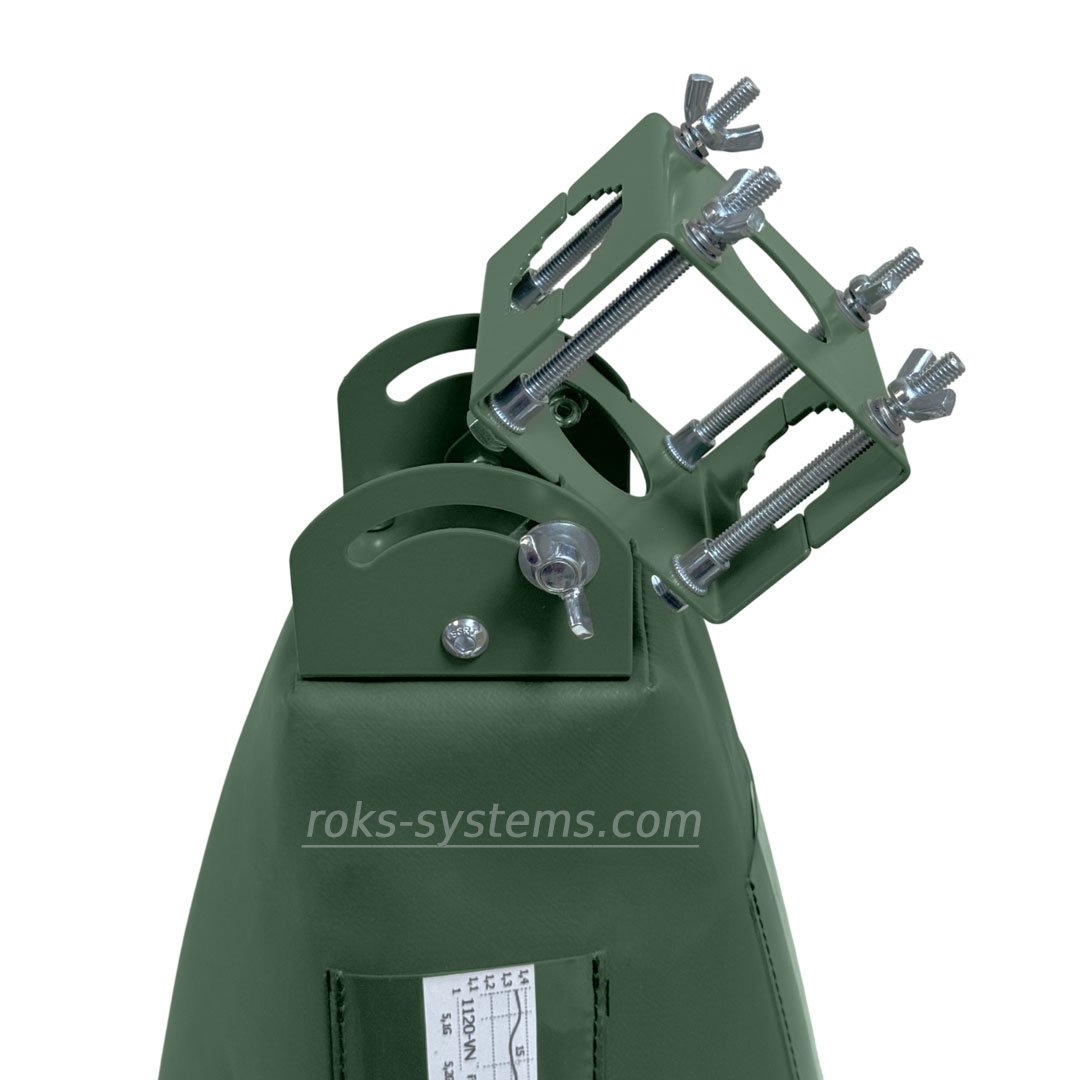

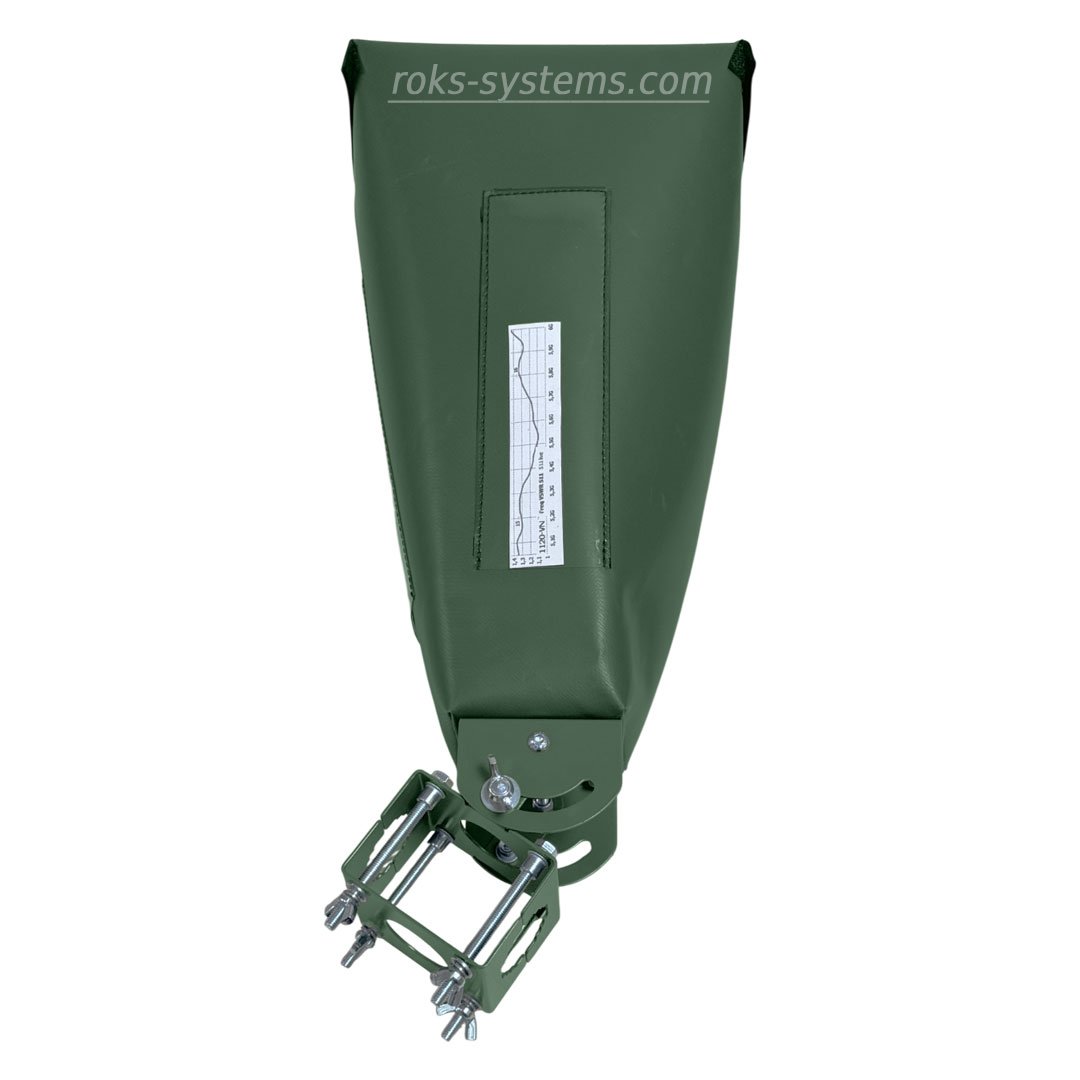

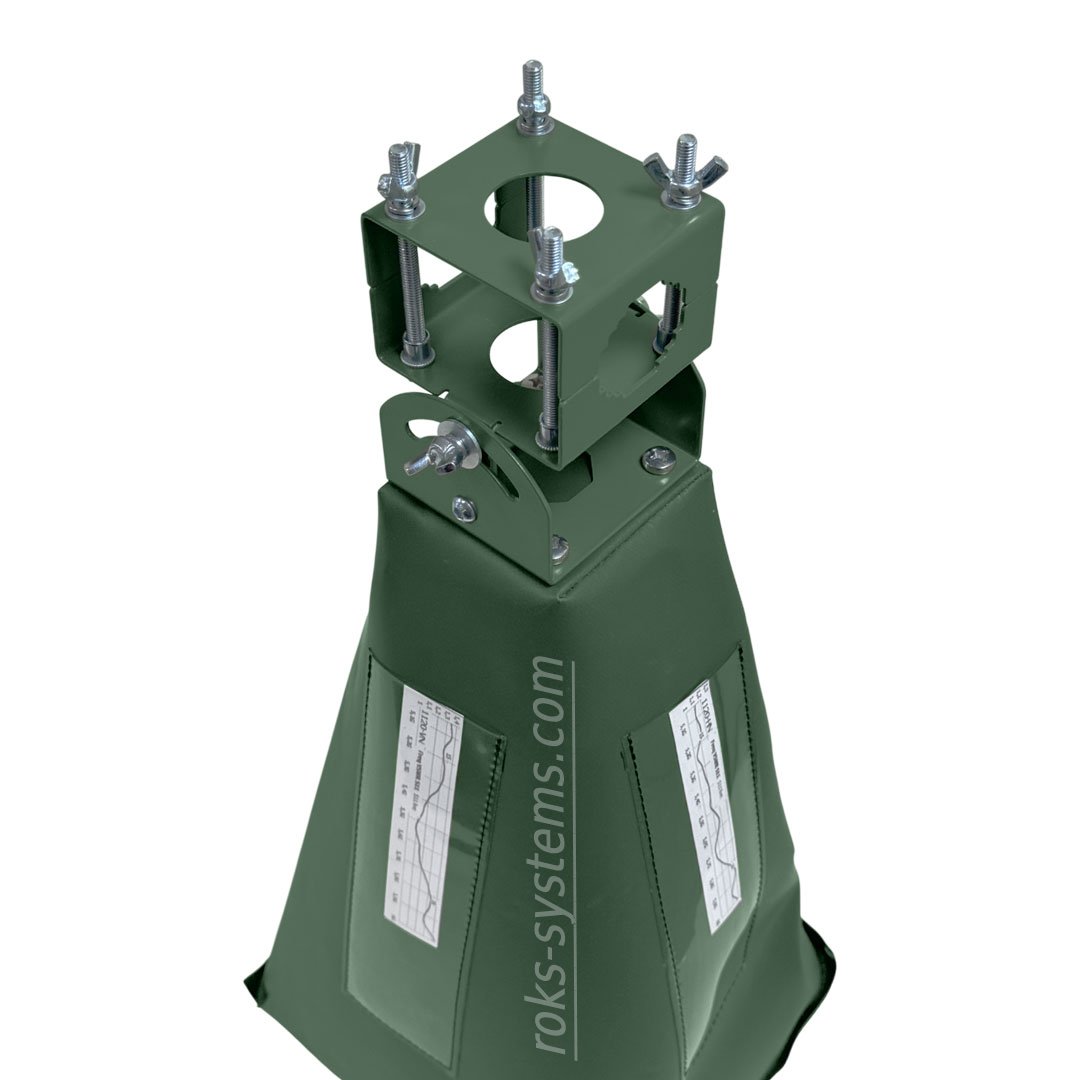

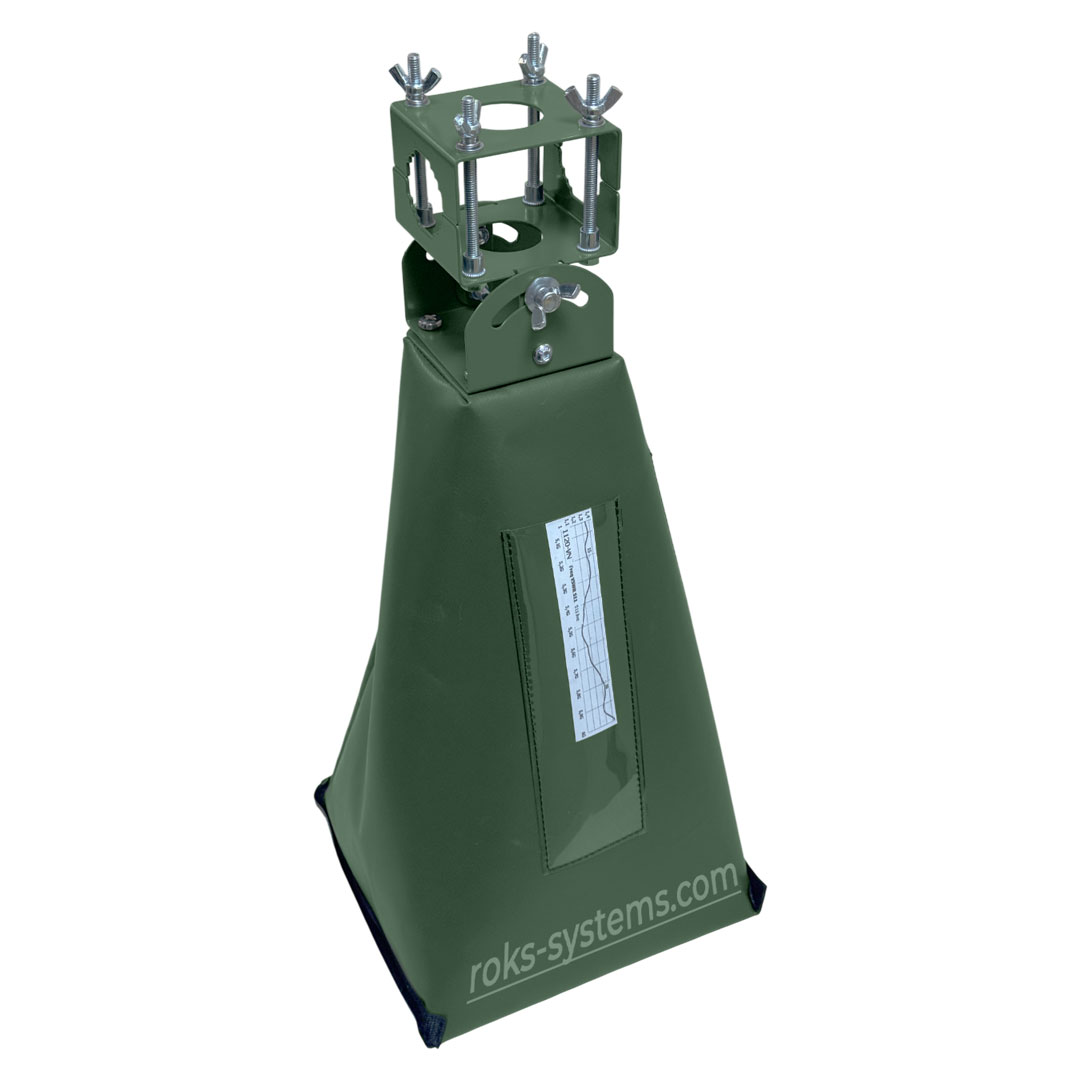

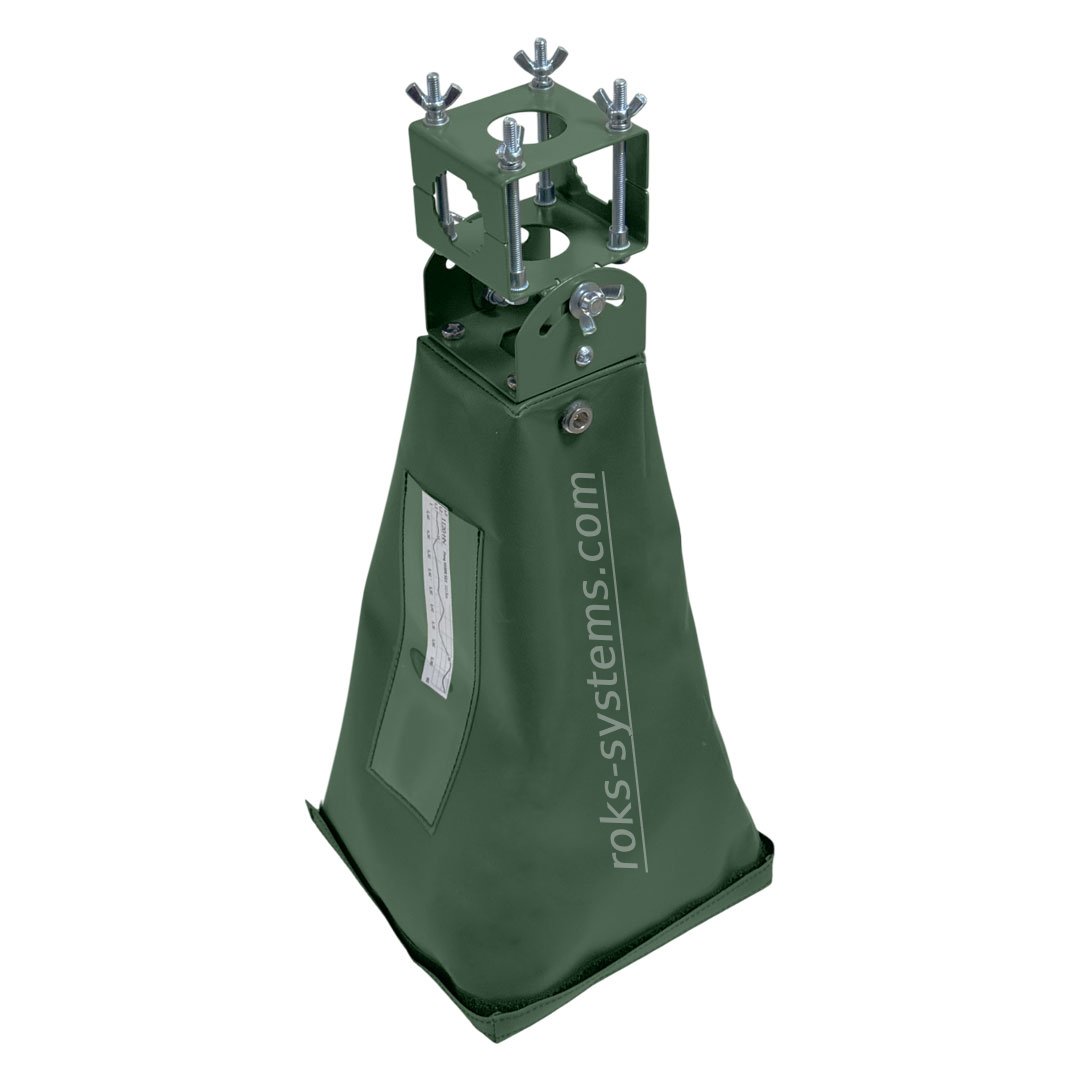

    • Pole mounting hardware with tilt/elevation adjustment for 30-45 mm masts
    • In-house assembly and post-manufacture testing (per product process info)

    Applications of the Horn WiMAX Antenna 5.05-6.0 GHz, 20 dBi

    Designed for WiMAX repeater antenna deployments and for building reliable, powerful wireless radio links, including:

    • Wireless backhaul operation for point-to-point and point-to-multipoint links
    • Coverage extension for WiMAX, LTE/5G, and stable Wi-Fi networks
    • Industrial and field wireless networks and specialized RF systems
    • Monitoring/telemetry RF links for remote data transmission
    • Tactical and military-area use cases, including EW-related systems (as specified)

    Compatibility

    • For 50 Ohm RF systems operating in 5050-6000 MHz (5.05-6.0 GHz)
    • 2× N-Type female interface for dual-port connection to repeater or RF equipment
    • Supports H/V simultaneous dual polarization and 2×2 MIMO configurations where applicable

    How It Works ❓

    This horn antenna concentrates RF energy into a controlled 20° × 20° beam, improving link stability in weak-signal areas and helping extend coverage. The 20 dBi gain increases effective signal strength across 5.05–6.0 GHz. With dual-port H/V simultaneous polarization, the antenna can operate with two linear-polarization channels at the same time, while VSWR ≤ 1.5 supports efficient matching in 50 Ohm systems.

    Why Choose the Horn WiMAX Repeater Antenna 5.05-6.0 GHz, 20 dBi, Horizontal + Vertical Polarization, 2×N-Female, 50 Ohm ❓

    👉Choose this 5050-6000 MHz dual-polarized 20 dBi horn antenna when you need:

    • A wideband, high-gain 5-6 GHz outdoor directional solution
    • H/V simultaneous dual polarization in one antenna via 2× N-Female ports
    • High power handling (150 W CW / 200 W peak) for demanding RF deployments
    • Quick field installation with a protective cover and adjustable 30-45 mm mast bracket

    Need a stable 5-6 GHz repeater/backhaul link with dual polarization and a controlled beamwidth❓
    Order the Horn WiMAX Repeater Antenna 5.05-6.0 GHz, 20 dBi and deploy it on your mast using the included cover and adjustable bracket.🤝

    Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that the view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.

    Note! All details the customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each of our customers has a 1.5 year warranty and 7 year aftersales support for the whole range of our products.
