HORN Sector Antenna for 2.4 GHz Wi-Fi

Professional 2.4 GHz HORN Sector Antenna for S-Band Wireless Solutions

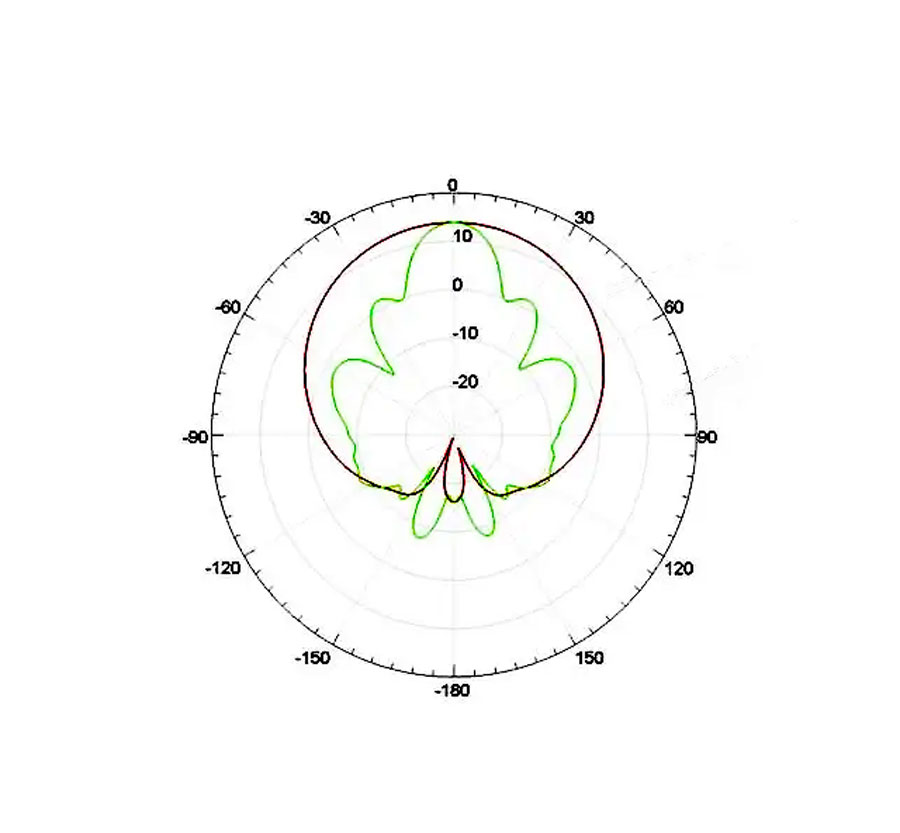

This high-performance HORN sector antenna is engineered for professional use in the 2300-2600 MHz frequency range. It features a directional radiation pattern with linear polarization—selectable in either vertical or horizontal modes. With an E-plane beamwidth of 20° and H-plane beamwidth of 70°, it ensures targeted coverage with reduced interference and low sidelobe levels.

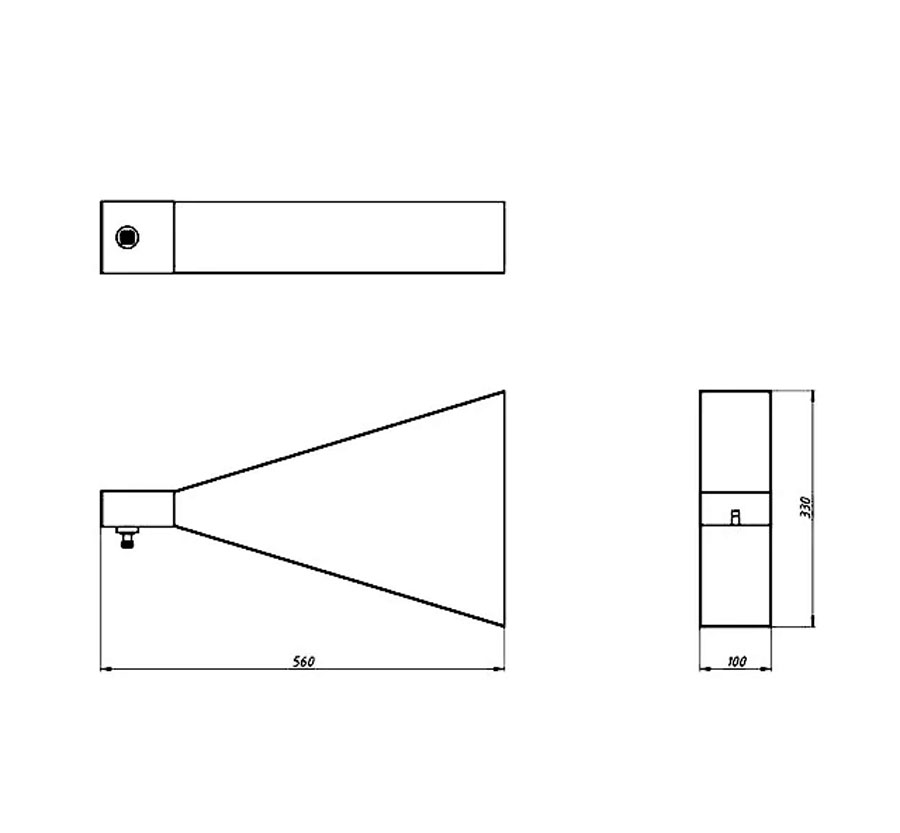

Constructed from lightweight yet durable aluminum alloy, the antenna uses a rectangular waveguide (96 x 46 mm) forming a pyramid-shaped horn. The waveguide integrates a coaxial-to-waveguide transition element with an N-female connector, offering seamless connectivity to 50 Ohm feeder systems.

Ideal for deployment in Wi-Fi systems, point-to-multipoint connections, telecom towers, or IPTV infrastructure. Developed and tested in our in-house lab, this product ensures professional-grade performance. Backed by a 1.5-year extended warranty and up to 7 years of post-warranty service.

Key Benefits:

• Optimized for 2.4 GHz (S-band) wireless transmissions

• High directivity: 14 dBi gain

• Wide vertical coverage for sectorial deployment

• Low VSWR: max. 1.35

• Long-term support and expert consultation available

High-Performance 2.4 GHz HORN Sector Antenna – 14 dBi Gain, Linear Polarization, Low VSWR, Optimized for S-Band Wireless Networks, Telecom, and Wi-Fi Systems

• The 2.4 GHz HORN sector antenna is a top-tier solution designed for S-band wireless applications in a wide variety of professional settings. Whether you’re working with Wi-Fi systems, telecom towers, or IPTV networks, this high-gain antenna offers exceptional performance across the 2300-2600 MHz frequency range. With a 14 dBi gain, it provides high directivity for targeted coverage and efficient signal transmission, reducing interference and delivering a more stable connection.
• This antenna features linear polarization, which can be configured in either vertical or horizontal mode, offering flexibility for different network requirements. It is perfect for point-to-multipoint connections, ensuring strong and reliable signal strength across long distances. Designed with a lightweight aluminum alloy construction, it strikes a perfect balance between durability and ease of installation, making it suitable for outdoor telecom deployments and Wi-Fi network installations.
• Thanks to its rectangular waveguide (96 x 46 mm) design, the antenna forms a pyramid-shaped horn that provides exceptional beam focus. The coaxial-to-waveguide transition element integrates seamlessly with an N-female connector, allowing for easy connection to 50 Ohm feeder systems. This makes the antenna ideal for long-range deployments in complex telecom networks or large-scale Wi-Fi infrastructure.
• The low VSWR (max. 1.35) ensures excellent signal reflection characteristics, reducing power loss and guaranteeing high transmission efficiency. Its low sidelobe levels and high E-plane beamwidth of 20° help to maintain clear, strong signals even in environments with high interference or other obstructions.
• Ideal for sectorial deployments, this antenna offers wide vertical coverage and is an excellent choice for building reliable wireless networks in urban, rural, or remote locations. It’s engineered to be rugged and capable of withstanding the toughest environmental conditions while maintaining peak performance.
• For professionals looking to implement or upgrade their wireless networks, this 2.4 GHz HORN sector antenna is the go-to solution. Backed by extensive testing and development in our in-house lab, it provides the reliability and longevity required for demanding telecom and Wi-Fi applications. Plus, with up to 7 years of post-warranty service and expert consultation, you’ll have the support needed to integrate this antenna seamlessly into your network.

👉 Need assistance with network design or integration? Contact our technical team today or become a certified partner🤝
