Product Description

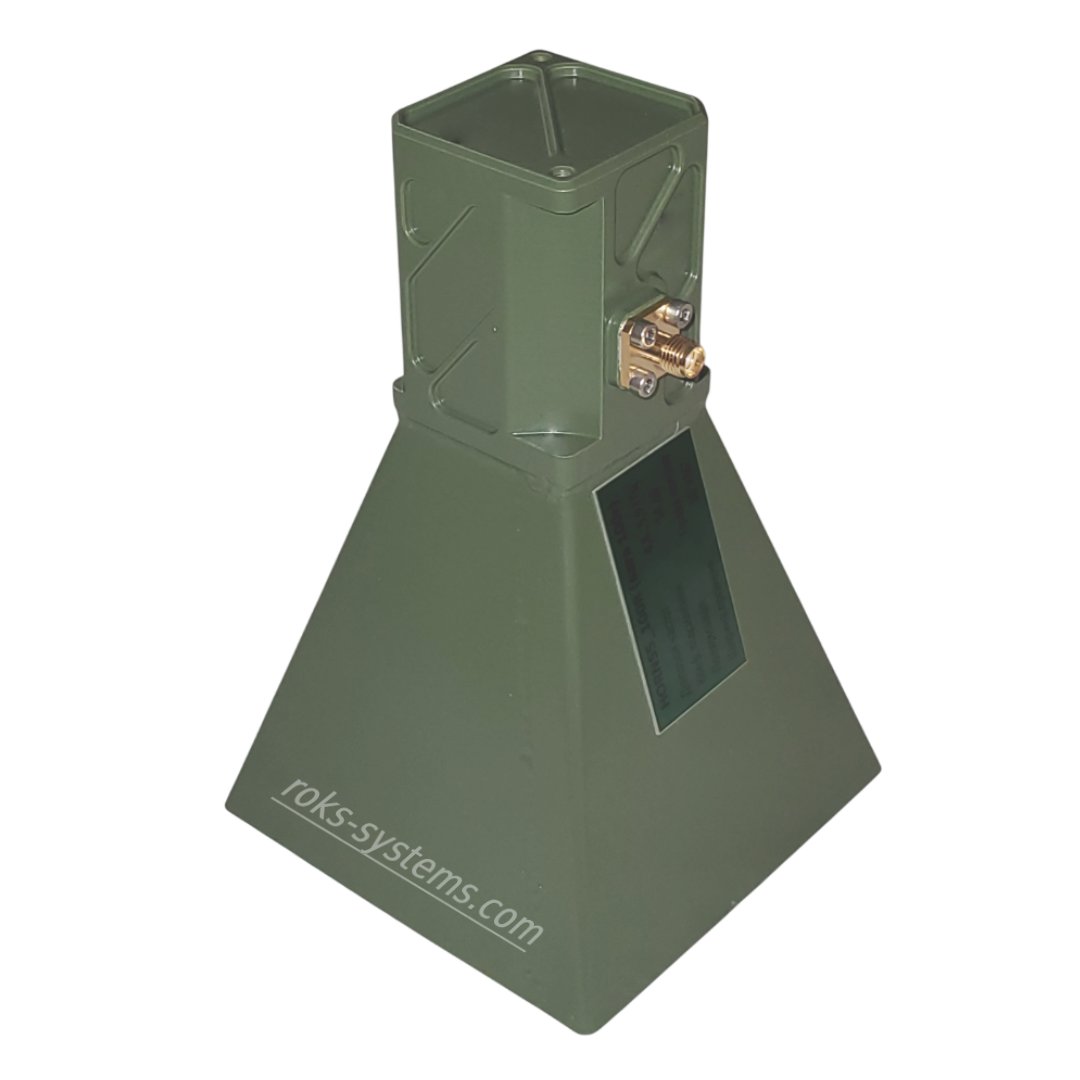

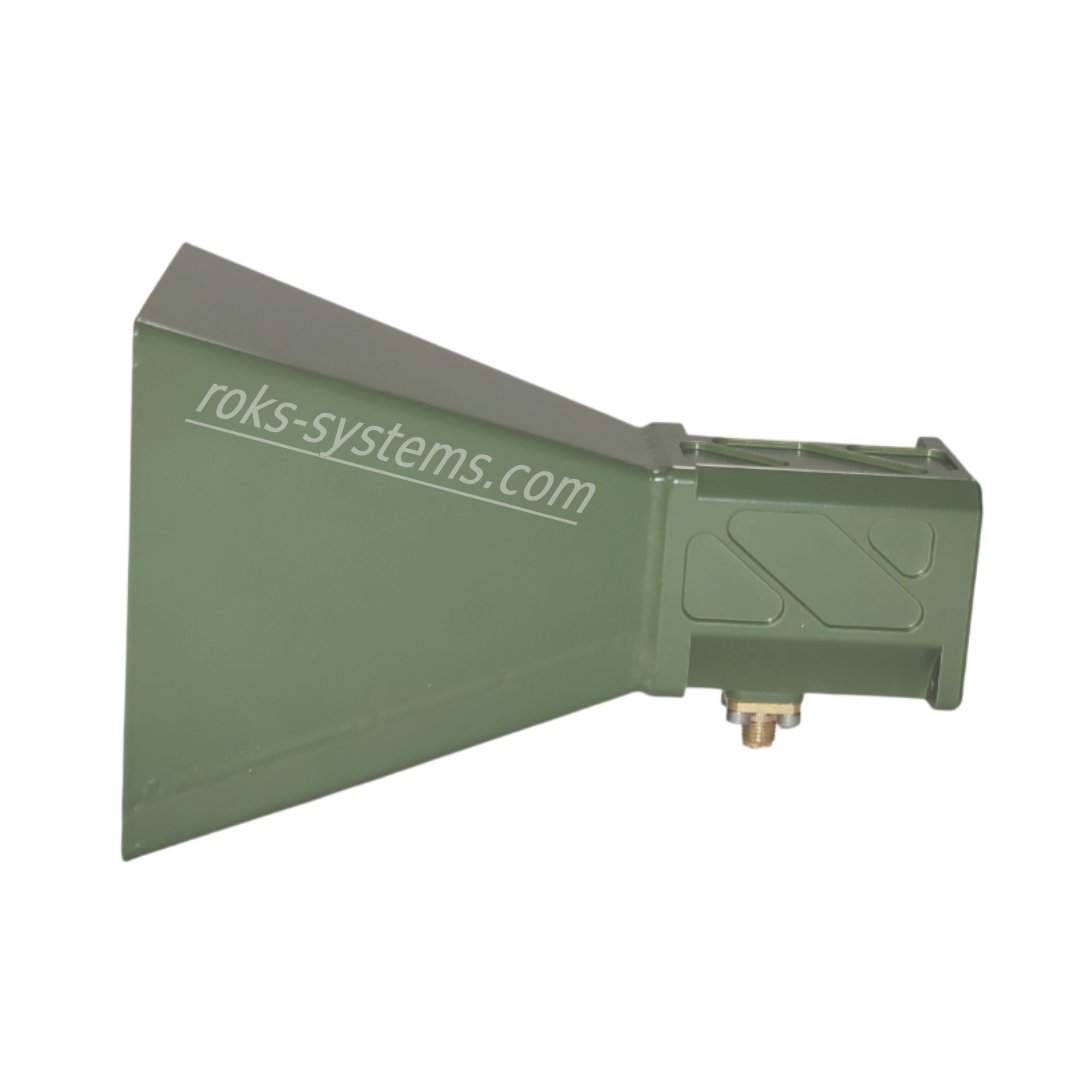

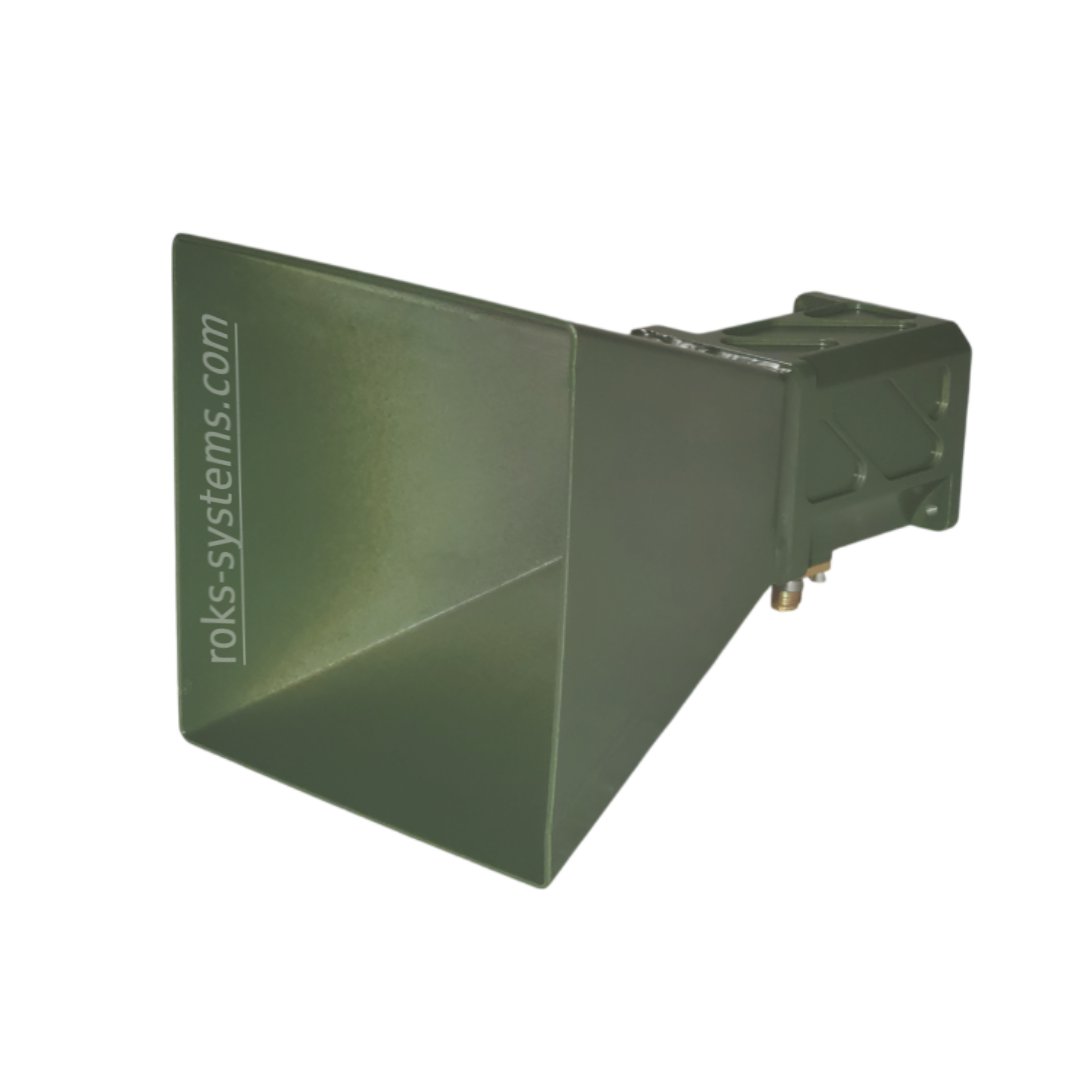

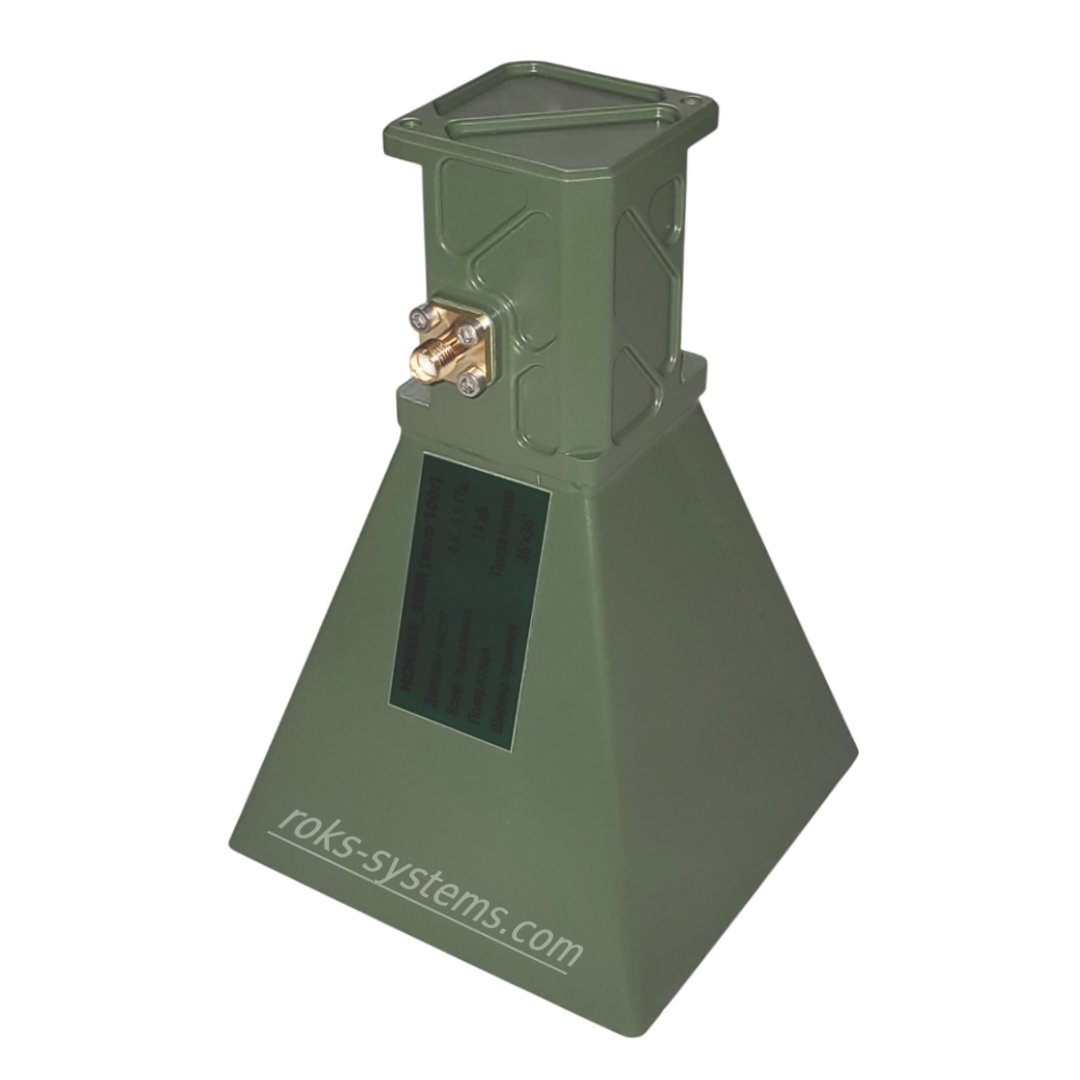

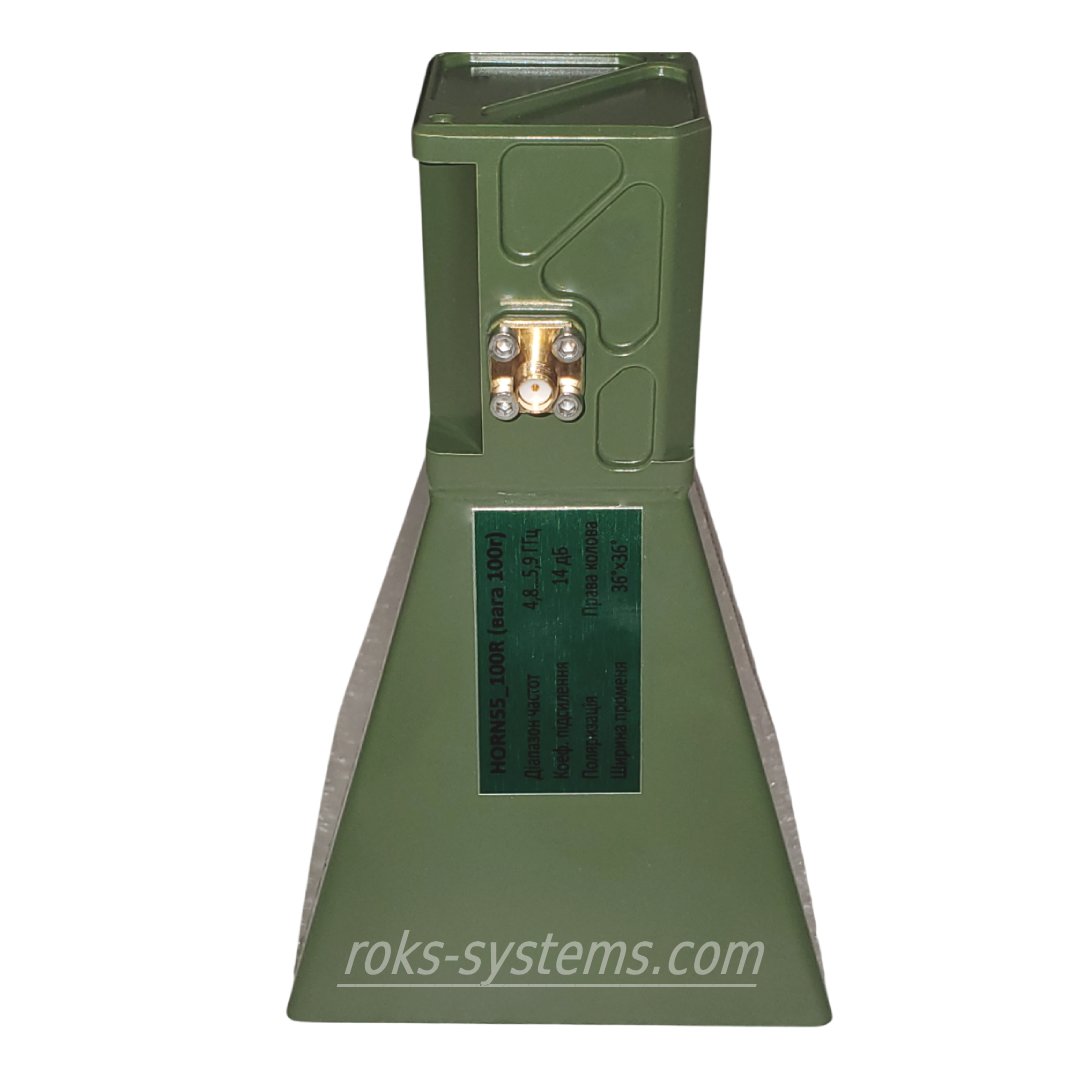

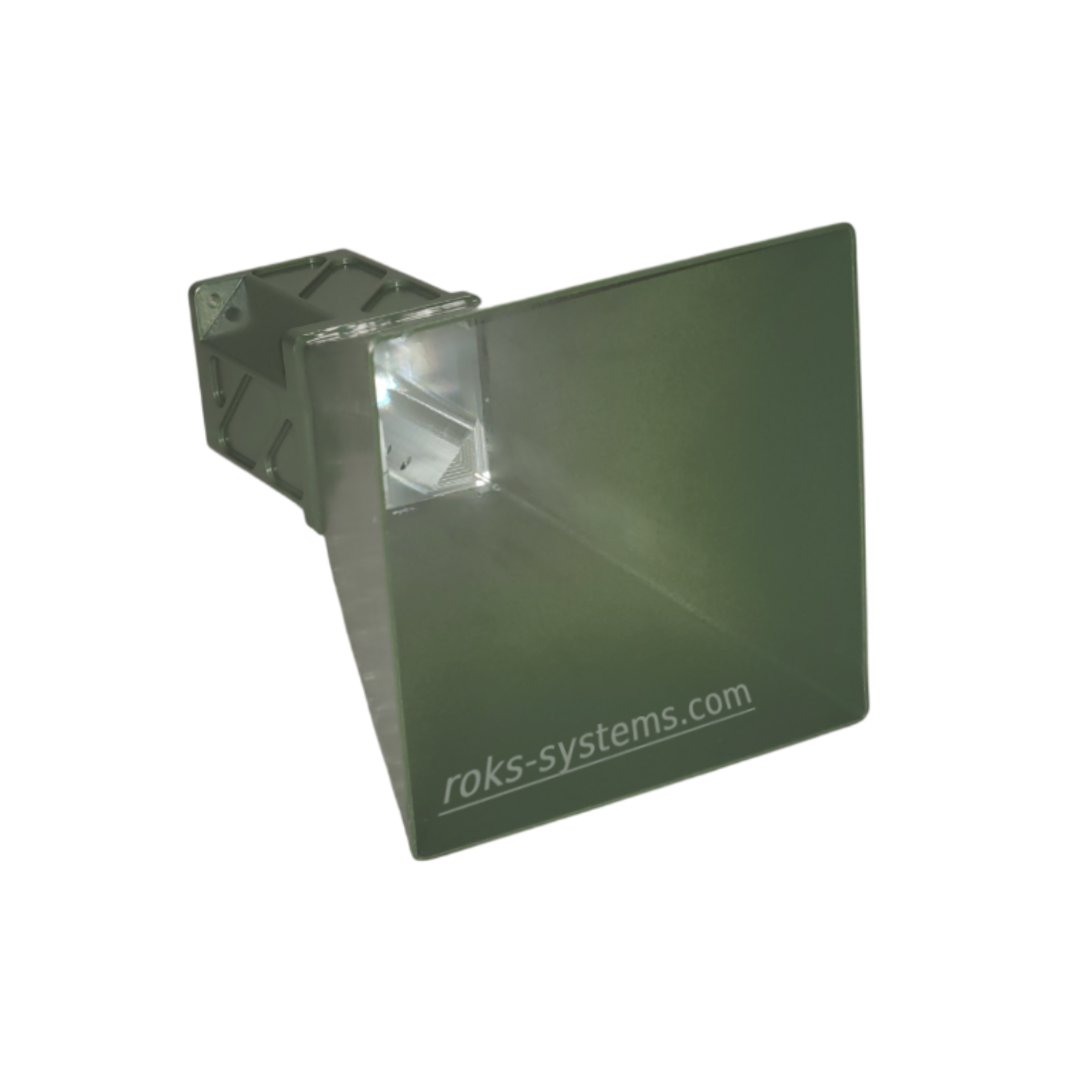

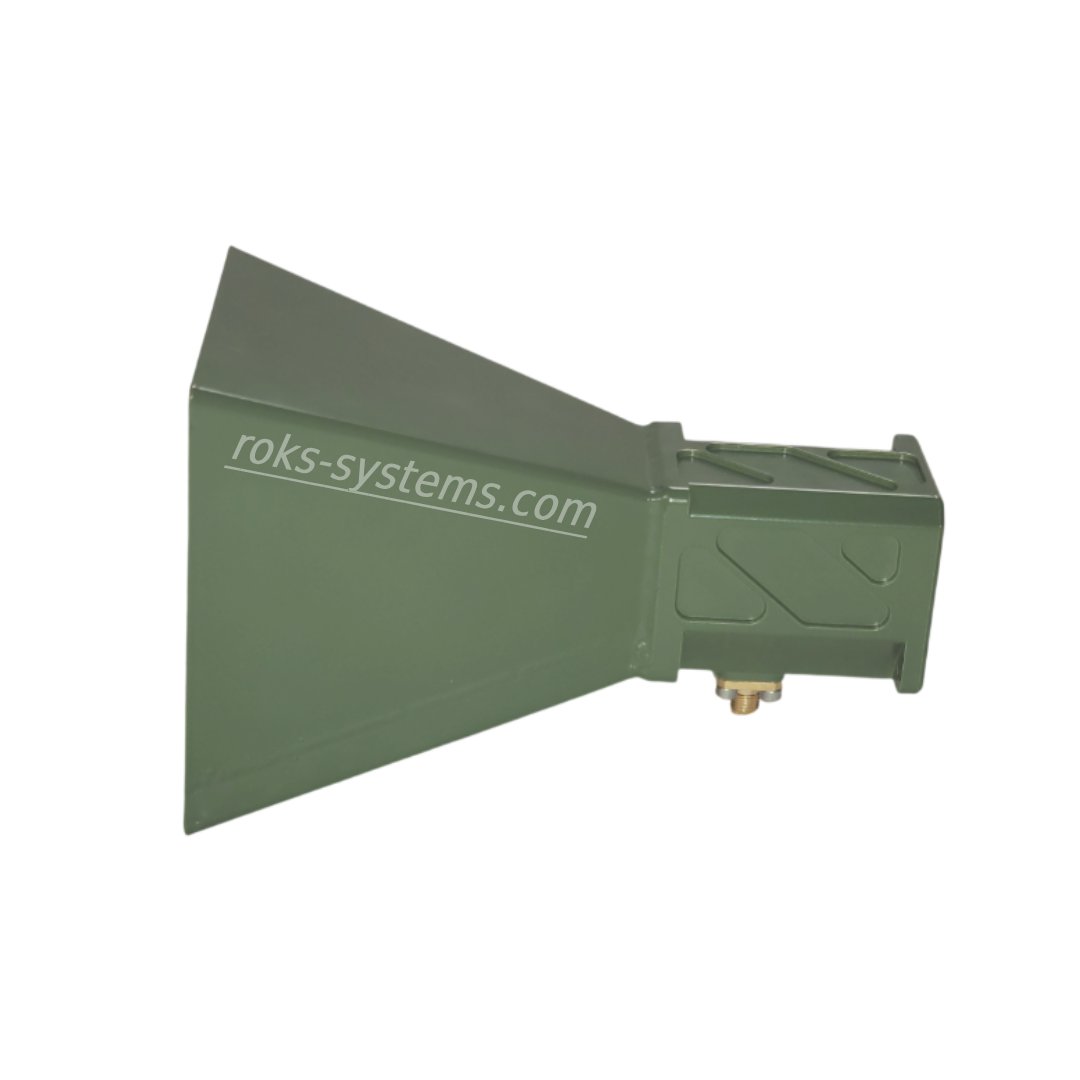

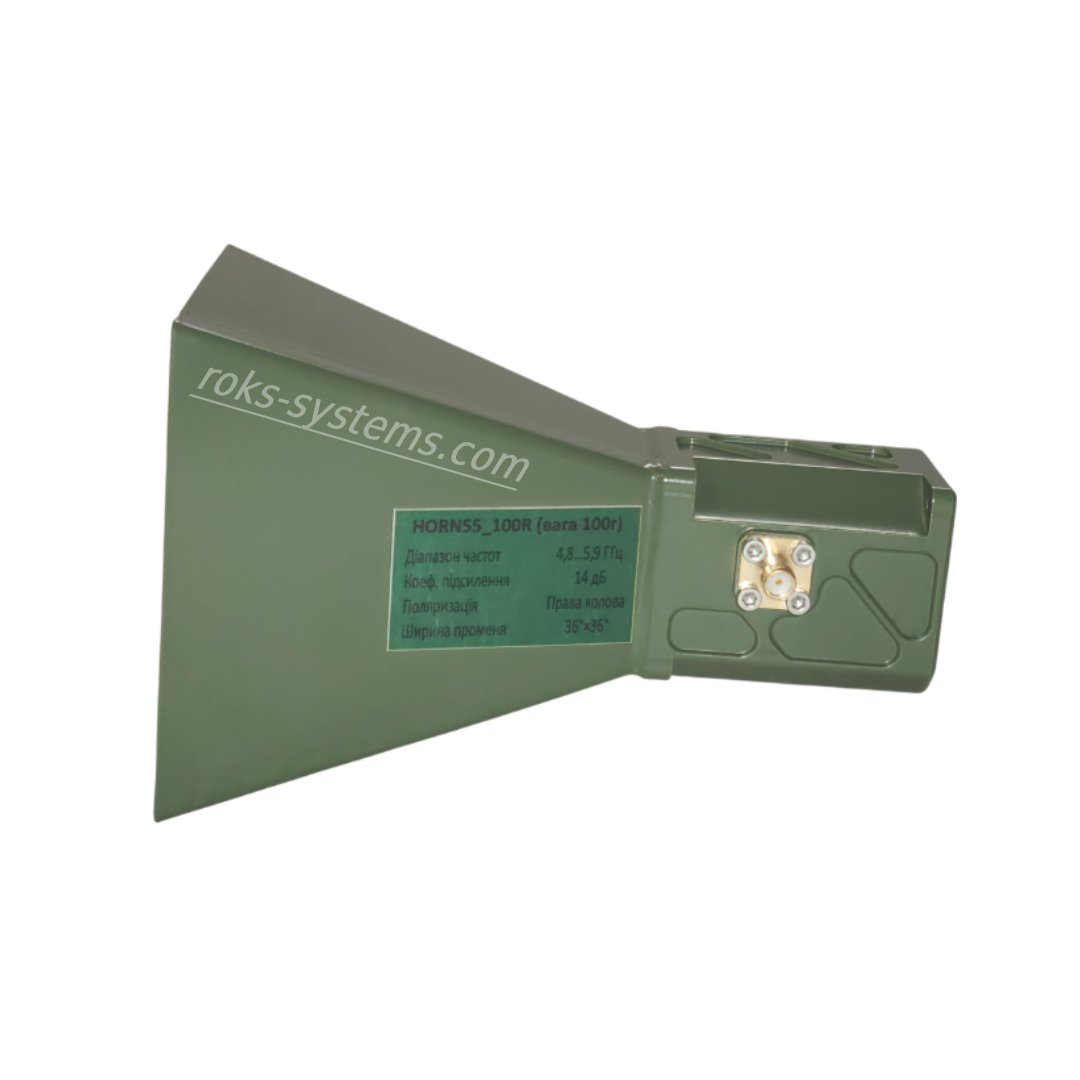

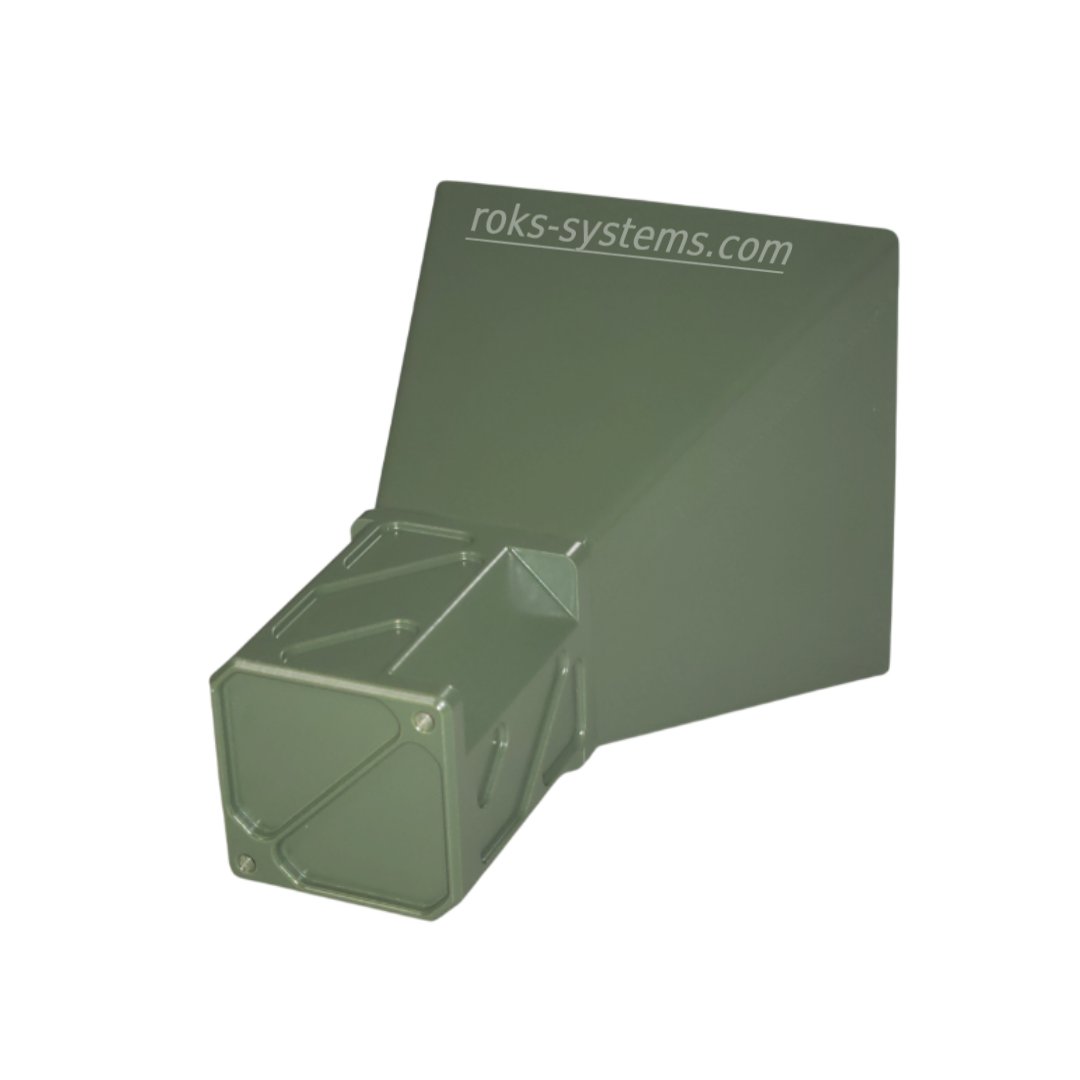

Horn Antenna 4.8-5.9 GHz is a compact directional horn antenna for UAV video link and FPV systems in the 5.8 GHz band. It provides 14 dB gain with RHCP circular polarization and a controlled 36° × 36° beamwidth to help keep the video channel stable while reducing interference.
Built as a 50 Ohm horn antenna with 1×SMA-Female connector, it supports up to 50 W power handling. This RHCP horn antenna is designed for clean reception and transmission in drone ground-station setups and telemetry links. The Horn 55-100 form factor (90×90×140 mm, 100 g) is easy to integrate. The product is supplied in a sturdy cardboard box for transport protection.
| Characteristic |
Value |
| Name |
HORN 55-100 Horn Antenna |
| Frequency range |
4.8-5.9 GHz |
| Impedance |
50 Ohm |
| Gain |
14 dB |
| Maximum power |
50 W |
| Connector |
SMA female |
| Weight |
100 g |
| Dimensions |
90 × 90 × 140 mm |
| Polarization |
RHCP (right-hand circular) |
| Beamwidth |
36° × 36° |
Technical Specifications of Horn Antenna 4.8-5.9 GHz
- This 4.8-5.9 GHz RHCP horn antenna covers the 5.8 GHz band and provides 14 dB gain for a focused UAV video link.
- The directional horn antenna pattern is 36° × 36°, supporting controlled coverage for FPV and drone ground-station operation.
- The RF interface is 1× SMA-Female with 50 Ohm impedance.
- Power handling is 50 W.
- Mechanical size is 90×90×140 mm, and weight is 100 g.)
Key Features of Horn Antenna 55-100 4.8-5.9 GHz, 14 dB
- 14 dB gain horn antenna 4.8-5.9 GHz for UAV video link and FPV use.
- RHCP circular polarization horn antenna for stable operation with moving platforms.
- Controlled 36° × 36° beamwidth for directional RF links.
- 50 Ohm horn antenna SMA-Female interface (1× SMA-Female).
- 50 W power handling.
- Compact horn antenna 90×90×140 mm and lightweight horn antenna 100 g.
Applications
- UAV video signal transmission (real-time video link).
- FPV systems in the 5.8 GHz band.
- Telemetry links within 4.8-5.9 GHz (as a use case).
- Specialized directional RF links where a focused RHCP horn antenna is required
Compatibility of Horn Antenna RHCP Circular Polarization
- RF equipment operating in 4.8-5.9 GHz with 50 Ohm impedance.
- Connection via 1× SMA-Female (use a matching SMA cable/adapter as required).
How It Works❓
A horn antenna concentrates RF energy into a directional beam, which helps maintain a stable UAV video link in the 4.8-5.9 GHz band. With a 36° × 36° radiation pattern and 14 dB gain, it focuses signal strength where it is needed. RHCP circular polarization supports more consistent link behavior when antenna orientation changes during operation. The antenna interfaces through a 50 Ohm feed with a 1× SMA-Female connector and supports up to 50 W power handling.
Why Choose the Horn Antenna 4.8-5.9 GHz, 14 dB, RHCP, 1×SMA-Female, 50 Ohm❓
👉 Choose Horn 55-100 for a focused RHCP UAV video link antenna in the 4.8-5.9 GHz range, when you need 4.8-5.9 GHz coverage (including the 5.8 GHz band) with 14 dB gain, a controlled 36° × 36° beamwidth, and RHCP circular polarization for UAV video link and FPV operation. It provides 50 Ohm system compatibility via 1× SMA-Female, supports 50 W power handling, and comes in a compact 90×90×140 mm form factor with a lightweight 100 g design.
