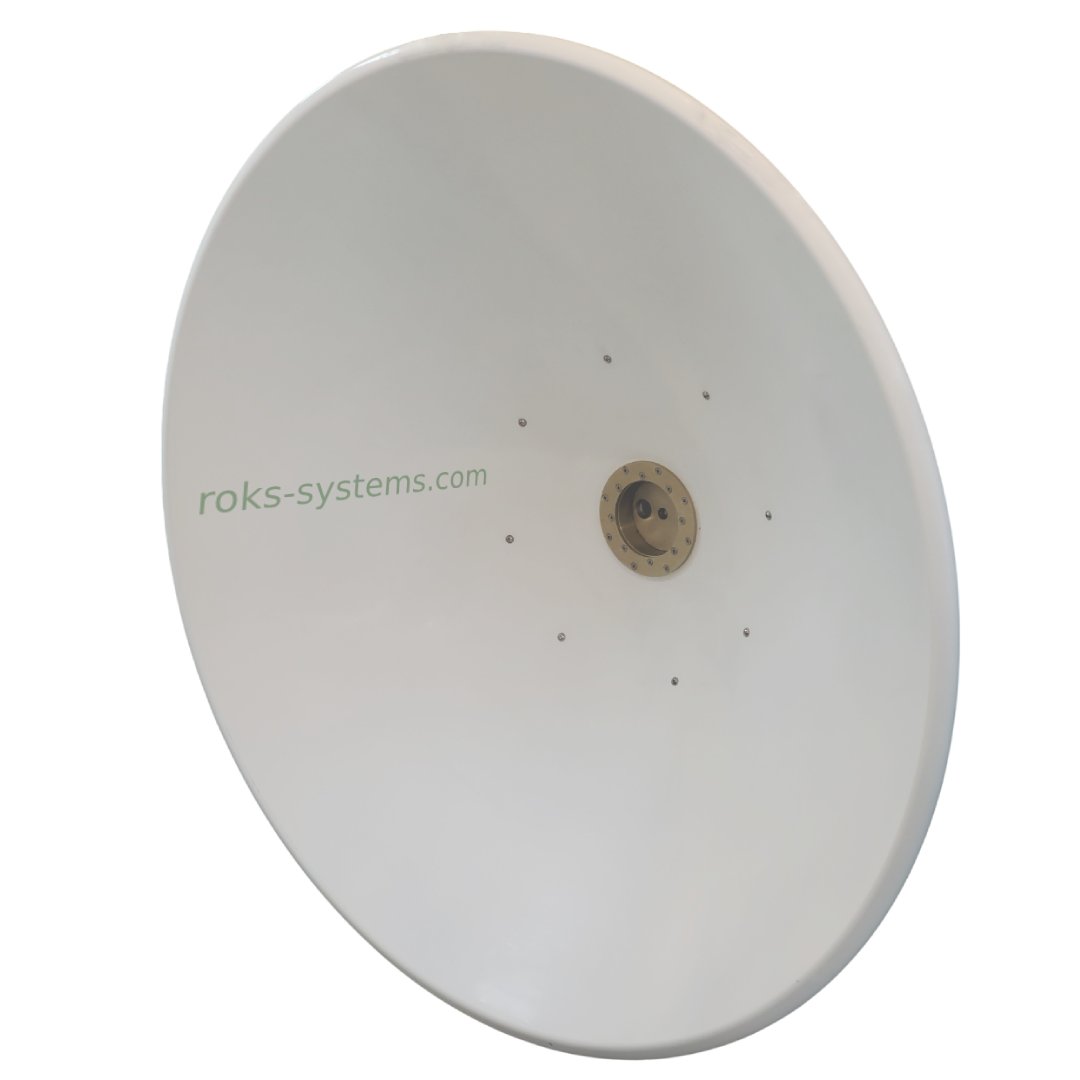

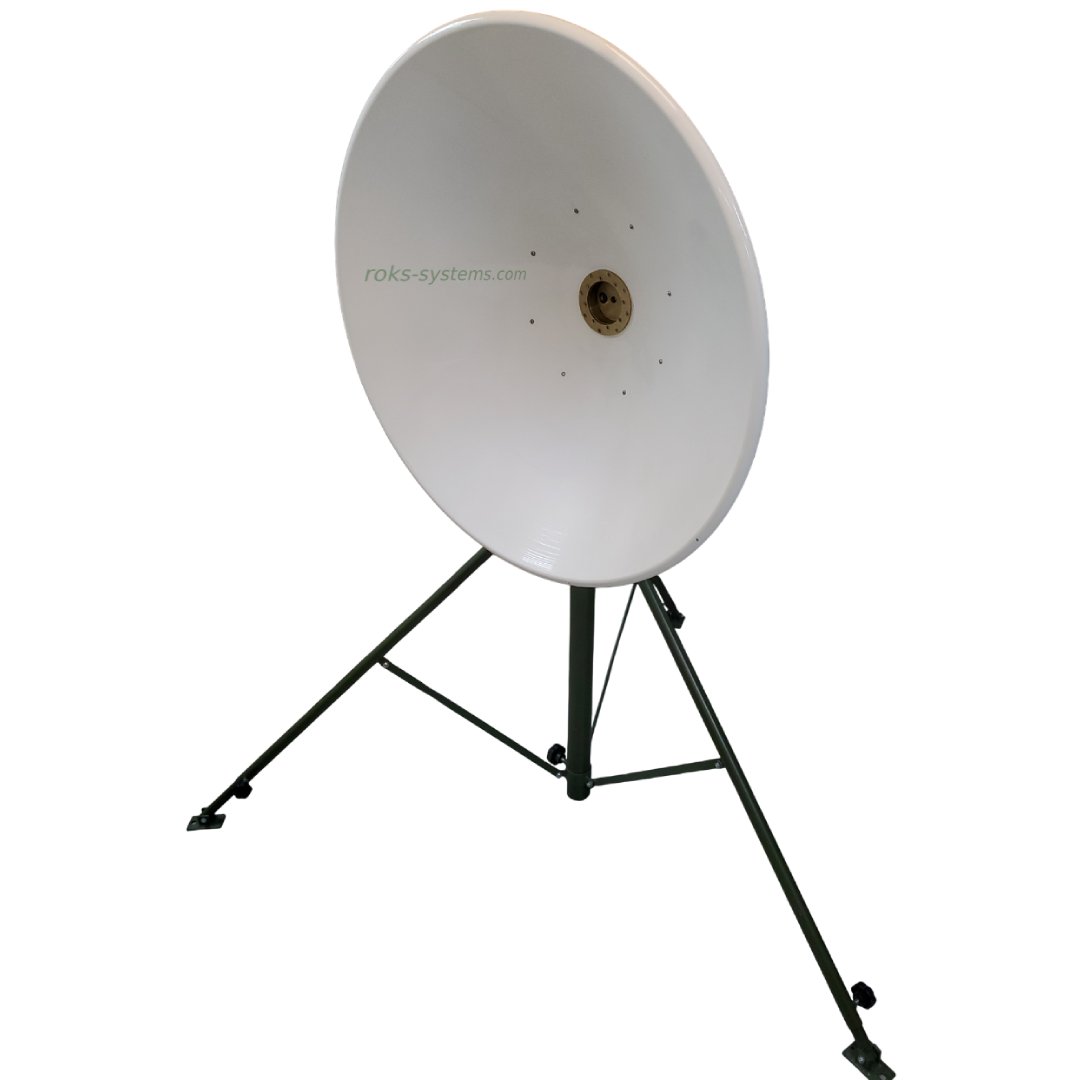

The Directed antenna 0.9 m multi range 2-15.5 GHz circular polarization with feed horn is a professional ultra-wideband parabolic reflector antenna system designed for RF spectrum monitoring and microwave signal reception and transmission.
This 0.9 m dish antenna supports multi range 2-15.5 GHz operation using six interchangeable feed horns selected according to the required frequency band. The system provides circular polarization (RHCP and LHCP) with optional linear polarization via a depolarizer. It can be configured as a single- or dual-reflector parabolic antenna and optionally equipped with a remotely controlled automated positioning unit for precision directional operation.
Technical Specifications of DRA-09MR2-15CP

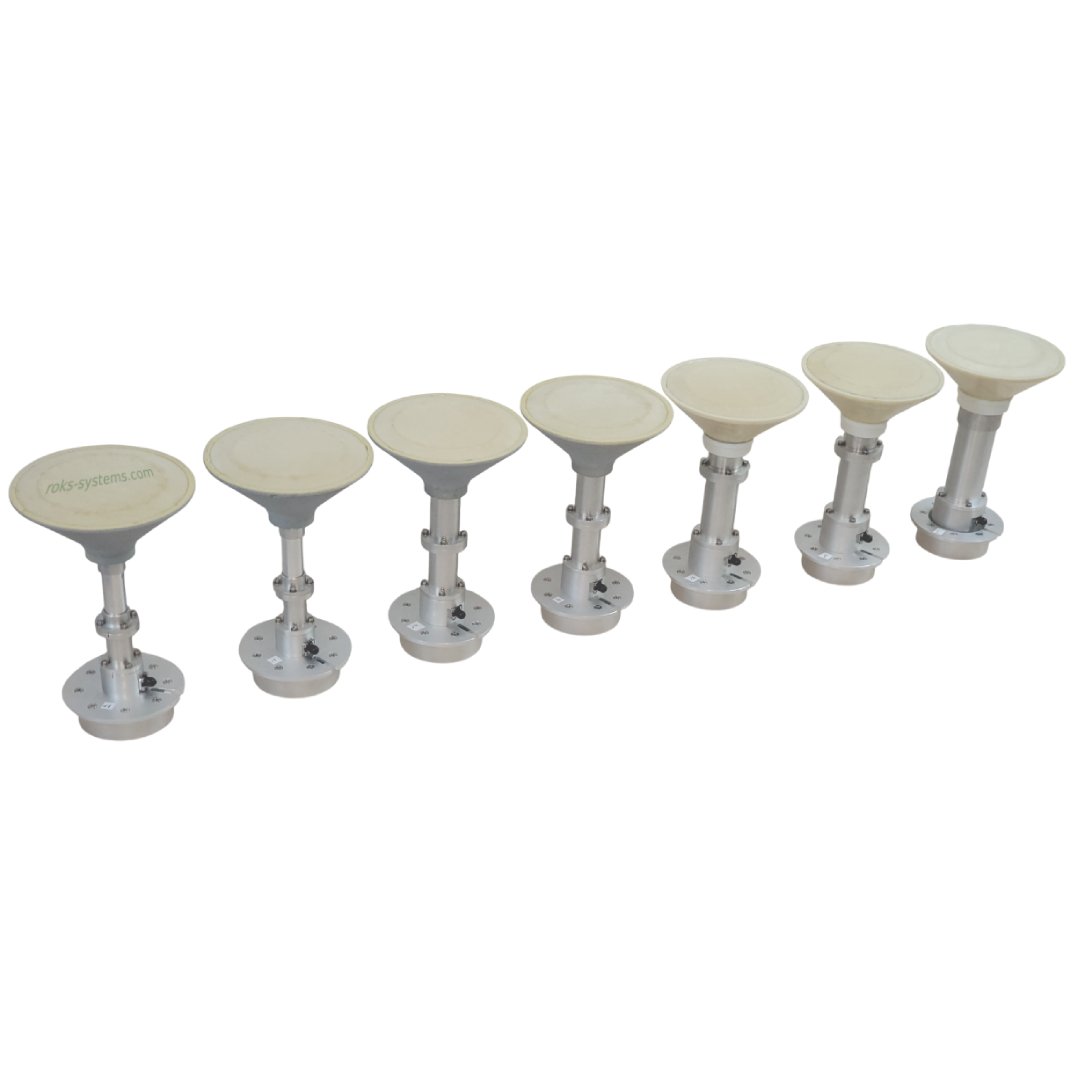

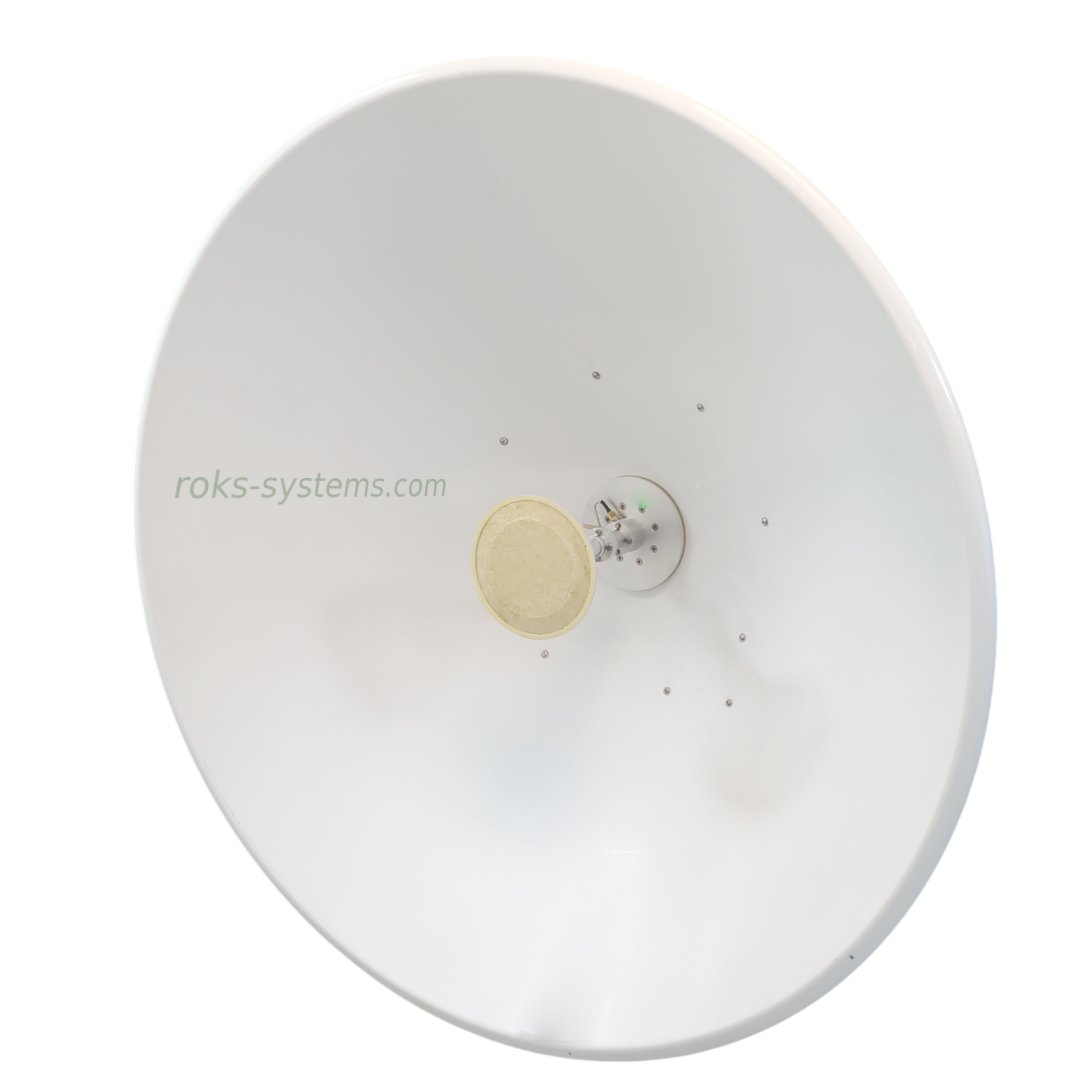

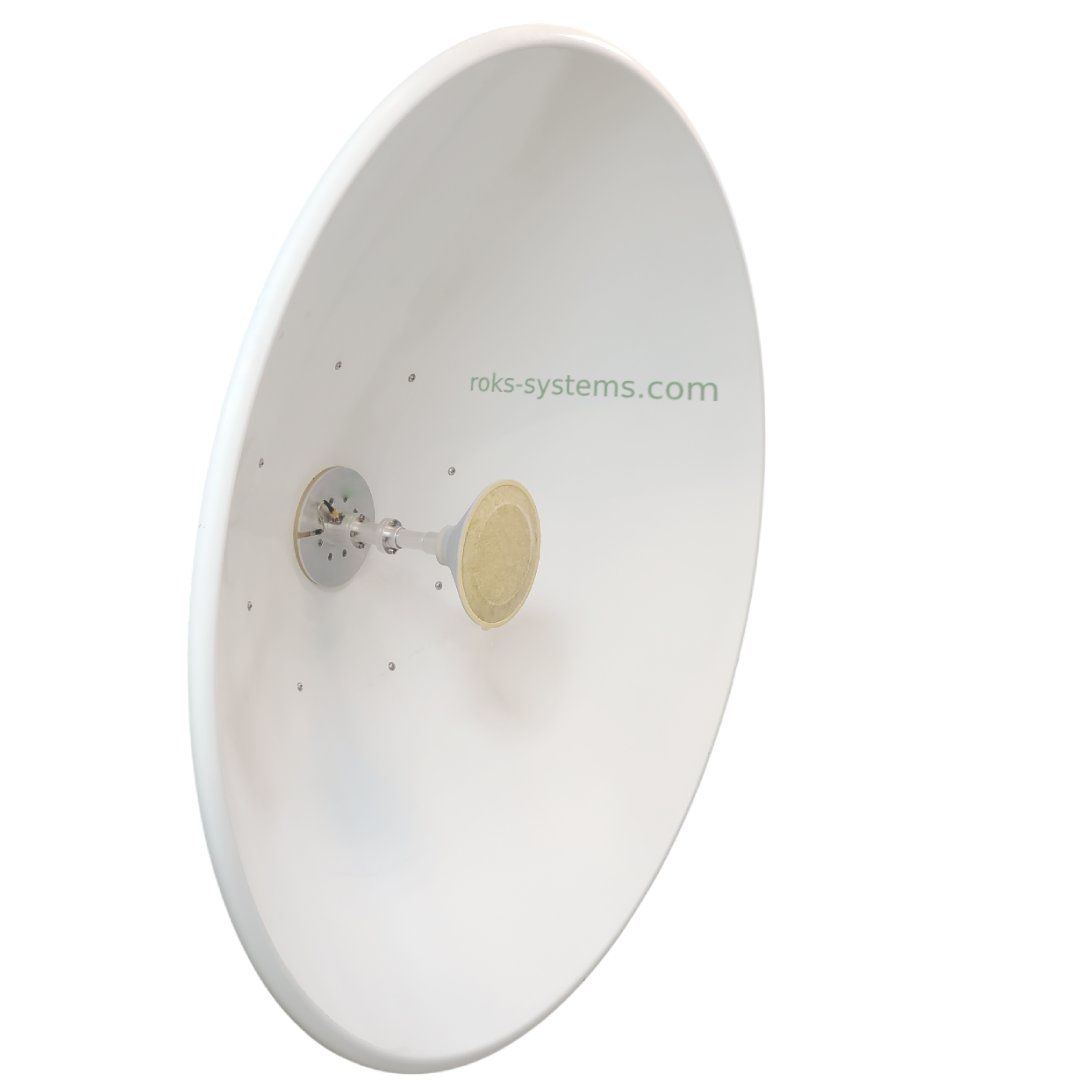

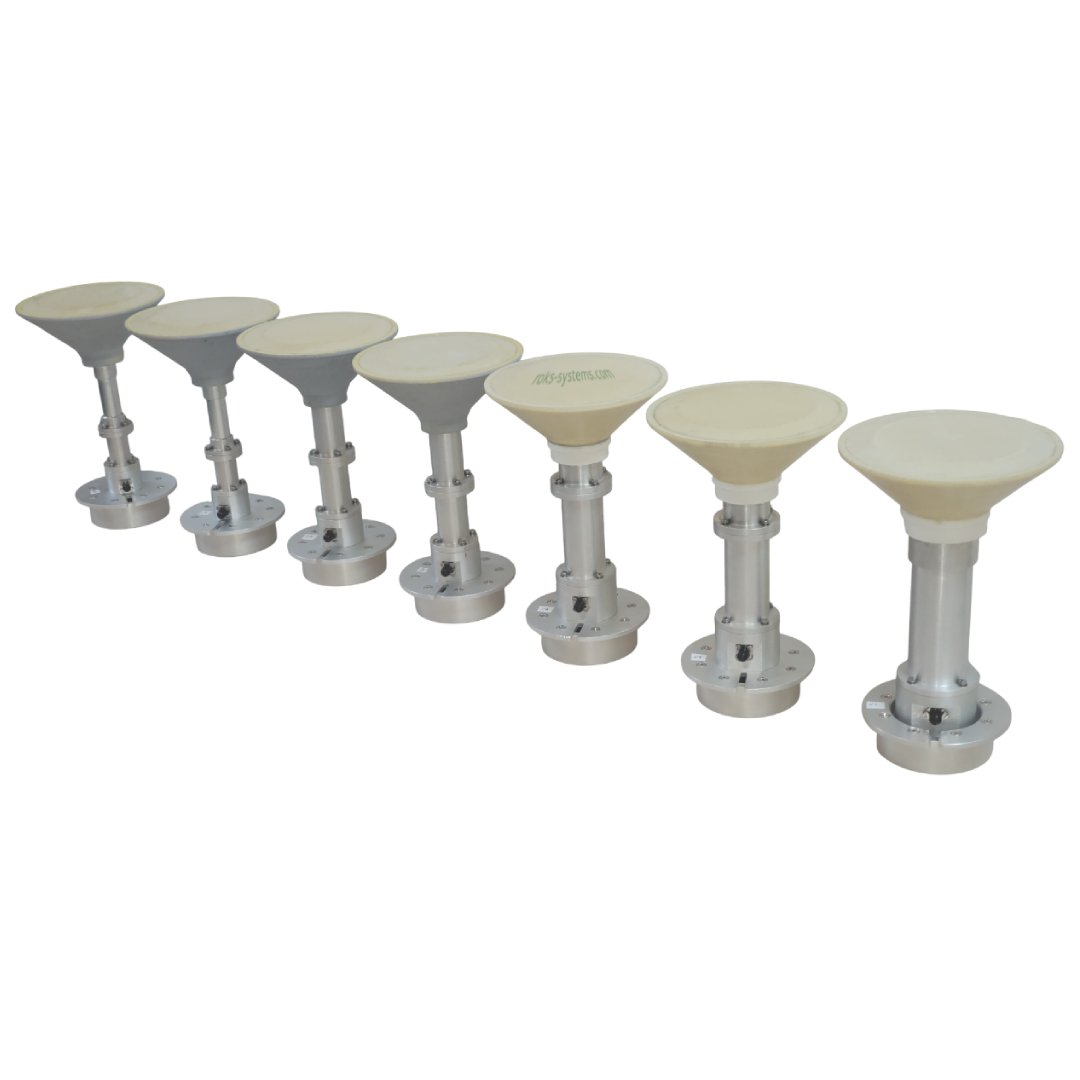

The Directed antenna 0.9 m multi range 2-15.5 GHz circular polarization with feed horn is an ultra-wideband parabolic reflector antenna system with a 0.9 m parabolic reflector optimized for multi-octave bandwidth operation. The frequency range 2-15.5 GHz is covered by a set of six interchangeable broadband feed horns, ensuring stable radiation patterns and constant gain over bandwidth.
The antenna supports circular polarization using RHCP and LHCP feed horns. Depending on installation requirements, the system can be configured as a single- or dual-reflector parabolic antenna assembly.
Key Features of Multi Range Directed Antenna 0.9 m
- Ultra-wideband antenna with multi range 2-15.5 GHz operation
- 0.9 m parabolic reflector antenna with high-gain directional performance
- Circular polarization feed horn options: RHCP and LHCP
- Dual-polarized feed horn support (circular and linear)
- Low sidelobe level (≤ –14.5 dB)
- Interchangeable multi-band feed horn system
- Suitable for precision RF systems and professional-grade applications
Applications of Multi Range Directed Antenna 0.9 m 2-15.5 GHz
- RF spectrum monitoring and surveillance systems
- Direction finding (DF) and signal intelligence
- Satellite communication (SATCOM) and VSAT antenna systems
- Tracking antenna systems and radar-related applications
- Space communication ground stations
- Microwave communications and SNG satellite antenna systems
Compatibility

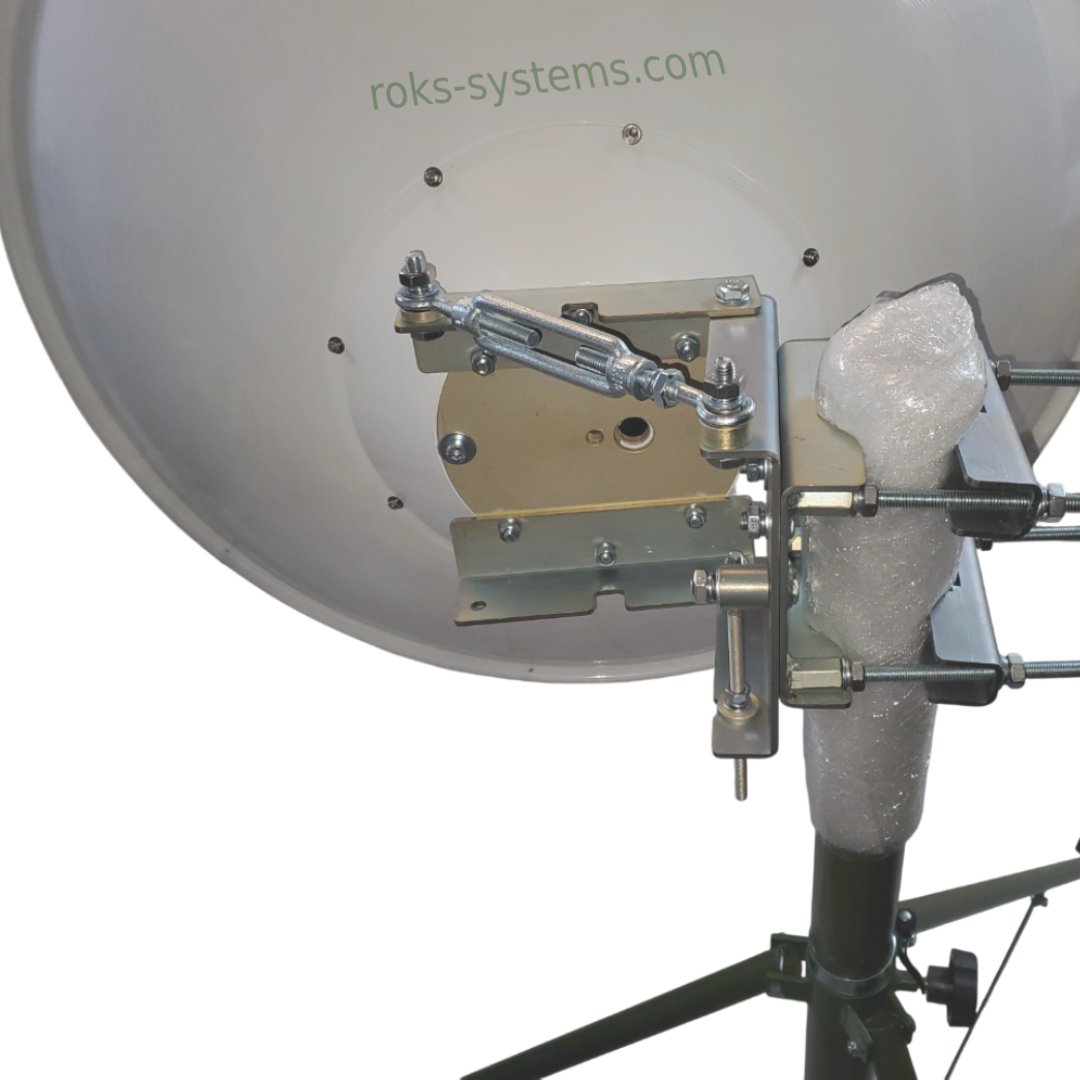

The antenna system is compatible with various 2-15.5 GHz antenna feed horn configurations and can be integrated with automated positioning systems featuring remote control for directional antenna operation.
How It Works ❓

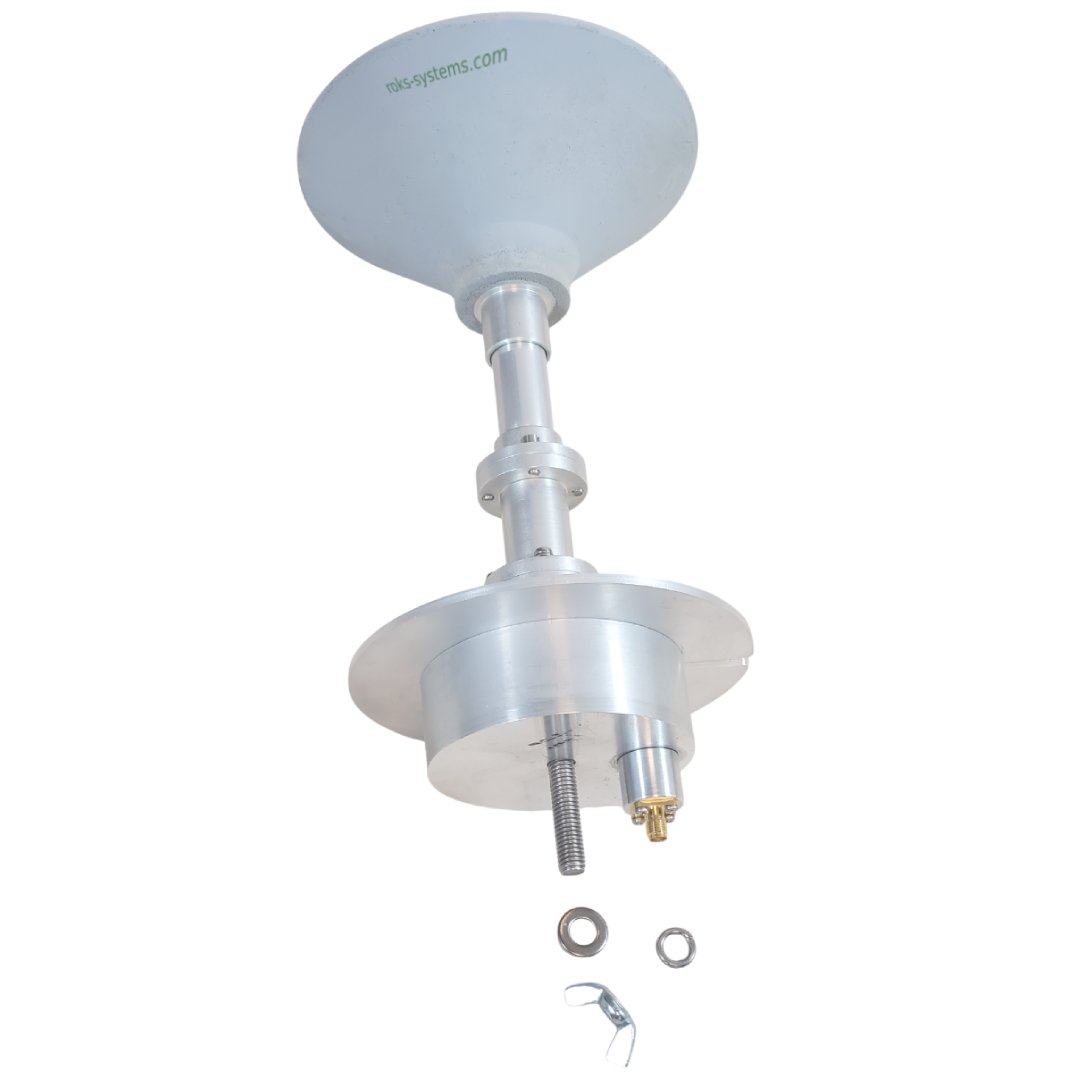

The parabolic reflector focuses incoming microwave signals onto the selected feed horn matched to the operating frequency band. Interchangeable feed horns enable optimized performance across the entire ultra-wideband frequency range while maintaining stable gain and low sidelobe levels.
Why Choose the Directed Antenna 0.9 m Multi Range 2-15.5 GHz Circular Polarization with Feed Horn❓
This antenna system offers a precise combination of ultra-wideband operation, high-gain directional performance, and flexible polarization options. Its modular feed horn architecture and configurable reflector design make it a reliable choice for professional RF monitoring and satellite communication systems.
