Product Description

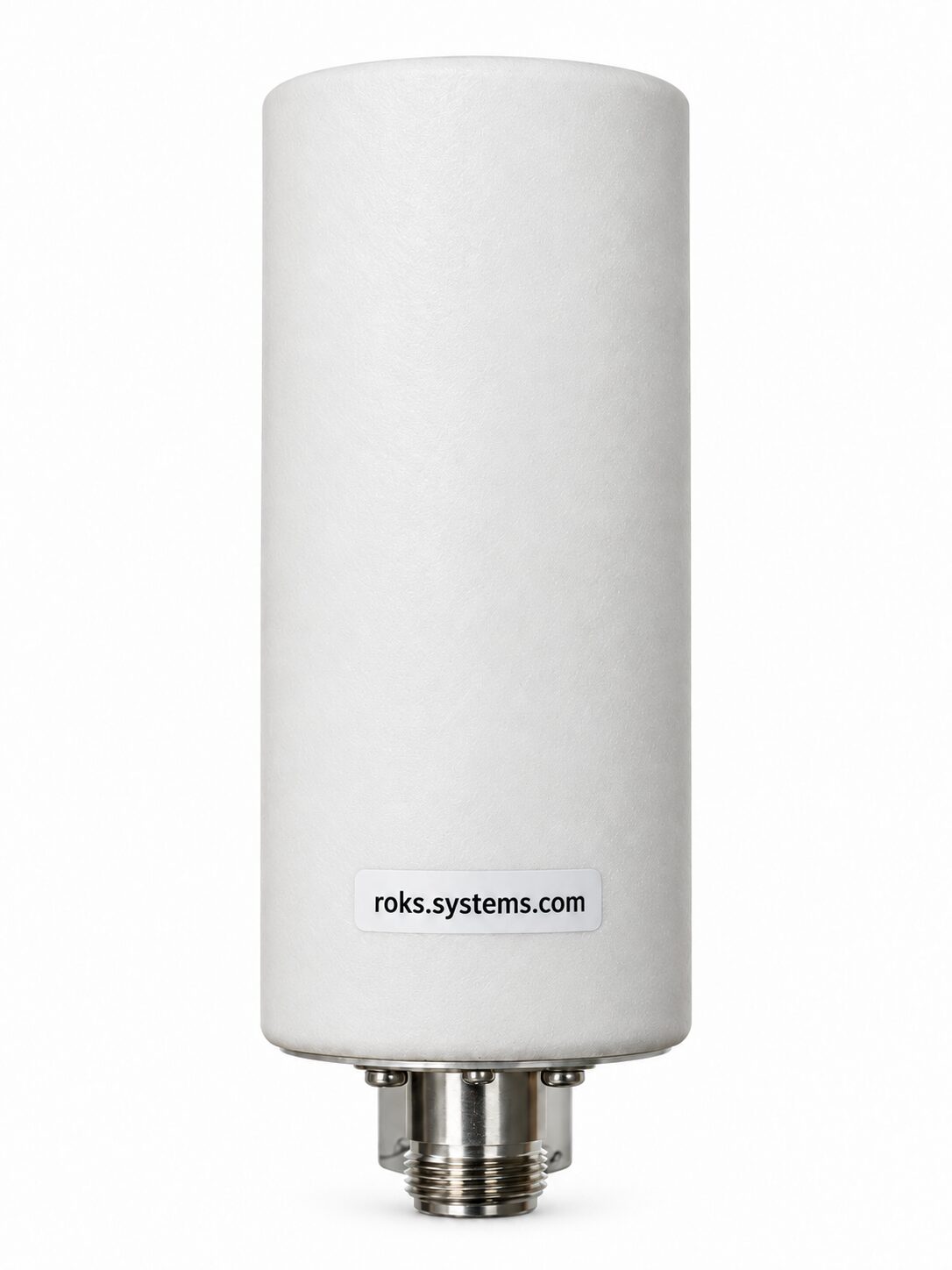

The Compact 15.05-15.45 GHz Omnidirectional Antenna is designed for mobile communication systems, including UAV and ground robotic platforms. It operates with LHCP circular polarization, provides gain of at least 4.5 dB, supports maximum radiated power of 16 W, and has an omnidirectional azimuth pattern with elevation beamwidth up to 50°.
The antenna combines compact integration with resistance to specified environmental factors. It operates from -20 to +60 °C, withstands 100% relative humidity at 25 °C, and provides IP65 moisture protection. Storage temperature is -20 to +70 °C, storage humidity is 50%, and operating atmospheric pressure is 700-790 mmHg.
| Parameter |
Value |
| Operating Frequency Range |
15.05-15.45 GHz |
| Polarization |
LHCP (Left-Hand Circular Polarization) |
| Axial Ratio |
≤ 3 dB |
| VSWR within the Operating Frequency Range |
≤ 1.8 |
| Gain within the Operating Frequency Range |
≥ 4.5 dB |
| Maximum Radiated Power |
16 W |
| Beamwidth in the Azimuth Plane |
Omnidirectional |
| Beamwidth in the Elevation Plane |
≤ 50° |
| RF Connector Type |
N or SMA (female) |
| Operating Temperature Range |
-20 to +60 °C |
| Operating Relative Humidity at 25 °C |
100% |
| Storage Temperature Range |
-20 to +70 °C |
| Storage Relative Humidity |
50% |
| Operating Atmospheric Pressure |
700-790 mmHg |
| Moisture Protection |
IP65 |
Key Features of the Compact 15.05-15.45 GHz Omnidirectional LHCP Antenna
- Wide 15.05-15.45 GHz operating band.
The antenna operates across the specified 15.05 to 15.45 GHz frequency range and is intended for communication systems working within this band.
- LHCP circular polarization.
The antenna uses left-hand circular polarization (LHCP) with an axial ratio of no more than 3 dB.
- Omnidirectional azimuth radiation pattern.
The antenna provides omnidirectional coverage in the azimuth plane, making this radiation pattern suitable for mobile communication systems.
- Elevation beamwidth up to 50°.
The beamwidth in the elevation plane is specified as no more than 50 degrees.
- Gain of at least 4.5 dB.
Within the operating frequency range, the antenna provides a gain of not less than 4.5 dB.
- VSWR ≤ 1.8.
The voltage standing wave ratio within the specified operating frequency band does not exceed 1.8.
- Maximum radiated power of 16 W.
The antenna supports a specified maximum radiated power of 16 W, combining compact construction with the stated operating power capability.
- N or SMA female RF connector.
The antenna can be supplied with an N-type or SMA female RF connector.
- Operating temperature from -20 to +60 °C.
The specified operating temperature range allows the antenna to function from -20 °C to +60 °C.
- 100% operating relative humidity at 25 °C.
The specified operating relative humidity is 100% at a temperature of 25 °C.
- IP65 moisture protection.
The antenna provides moisture protection according to the IP65 standard.
- Specified storage conditions.
The storage temperature range is -20 to +70 °C, with a specified storage relative humidity of 50%.
- Operating atmospheric pressure of 700-790 mmHg.
The antenna is specified for operation within an atmospheric pressure range of 700 to 790 mmHg.
Applications
The 15.05-15.45 GHz compact omnidirectional antenna is intended primarily for mobile RF communication systems.
- UAV communication systems.
The antenna is intended for manufacturers integrating compact RF communication equipment into UAV platforms operating within the specified frequency range.
- Ground robotic systems.
It is suitable for manufacturers of ground robotic platforms and complexes requiring mobile communication at 15.05-15.45 GHz.
- Mobile communication systems.
The combination of compact construction, LHCP polarization, omnidirectional azimuth coverage, and specified RF characteristics is intended for communication equipment installed on moving platforms.
- Systems requiring omnidirectional azimuth coverage.
The antenna is suitable for applications where omnidirectional radiation in the azimuth plane is required.
Compatibility of the Compact 15.05-15.45 GHz Omnidirectional Antenna 4.5 dB
The antenna is intended for systems operating within 15.05-15.45 GHz and requiring LHCP circular polarization. It can be supplied with an N or SMA female RF connector. Compatibility should be checked against the stated frequency range, polarization, RF characteristics, and connector type.
How It Works ❓
- Operation within the 15.05-15.45 GHz band.
The antenna transmits or receives RF signals within its specified operating frequency range.
- LHCP circular polarization.
The antenna operates with left-hand circular polarization, with an axial ratio of ≤3 dB.
- Omnidirectional azimuth coverage.
Its radiation pattern is omnidirectional in the azimuth plane, while the elevation beamwidth is no more than 50°.
- Defined RF performance.
Within the operating band, gain is ≥4.5 dB, VSWR is ≤1.8, and the specified maximum radiated power is 16 W.
Why Choose the Compact Omnidirectional LHCP Antenna 16 W ❓
The Compact 15.05-15.45 GHz Omnidirectional LHCP Antenna combines compact construction with left-hand circular polarization, omnidirectional azimuth coverage, ≥4.5 dB gain, VSWR ≤1.8, 16 W maximum radiated power, and IP65 moisture protection. Its specified operating range of -20 to +60 °C and environmental resistance make it a practical solution for UAV, ground robotic, and other mobile communication systems operating within the 15.05-15.45 GHz band.
